< Back to Lathes
Special Item

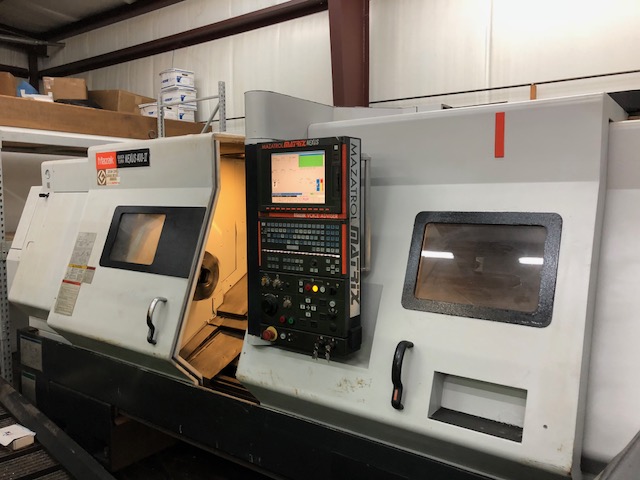

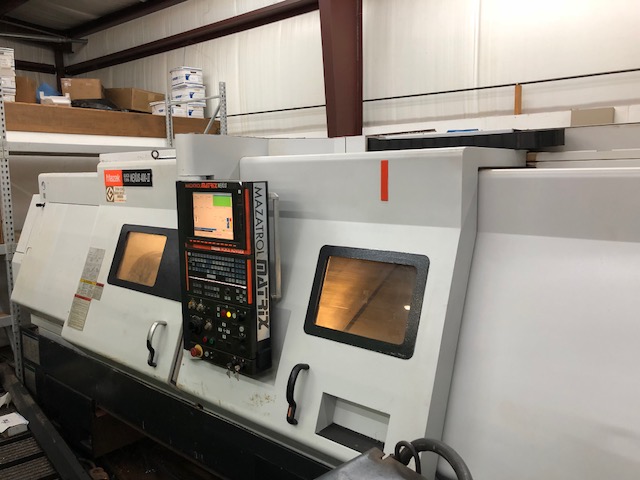

2008 MAZAK QUICK TURN NEXUS 400II / 2000

Matrix, 4" Bar, 12" Chuck, 81" Length, 50HP, 2500 RPM, 12 Tools, Tail, Chip
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 12"
  • Max Diameter Bar Capacity 4"
  • Max Swing Over Bed 33.27"
  • Max Machining Length 81.69"
  • Spindle Motor 50 HP
  • Spindle Speed 2500 RPM
  • Spindle Nose A2-11
  • Spindle Bore 5.2"
  • Tools 12
  • Rapid Traverse Rates (X & Z) 1181 IPM
  • X-Axis Travel 12.13"
  • Z-Axis Travel 83.50"
  • Machine Dimensions (L x W x H) 240" x 90" x 80"
  • Machine Weight 23,000 lbs.
  • Max Turning Diameter 22.8"
  • Tailstock Taper MT #5

Product Features

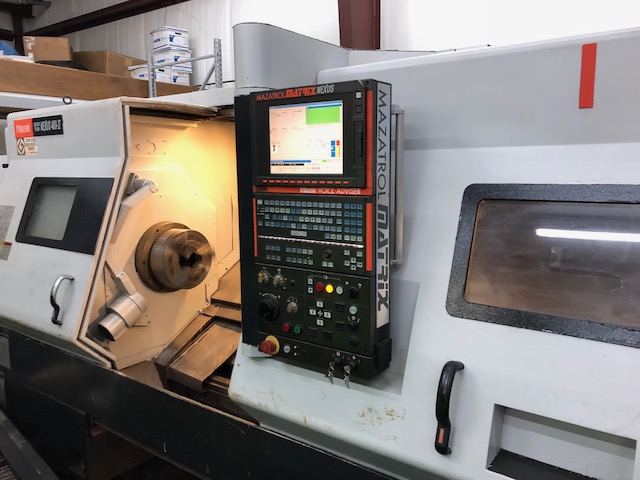

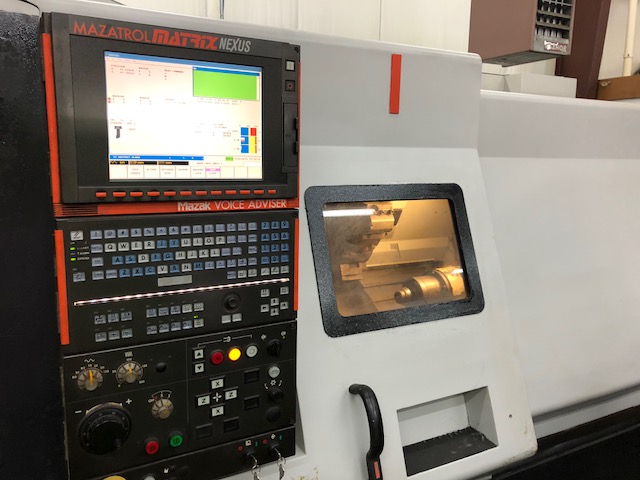

  • MAZATROL MATRIX II NEXUS CNC CONTROL
  • 12.1 Color LCD
  • USB Port / Lan & Modem
  • Graphic Display
  • Conversational Programming
  • EIA/ISO Input Function
  • 1MB Memory
  • 12" Hydraulic Chuck
  • Programmable Tool Eye

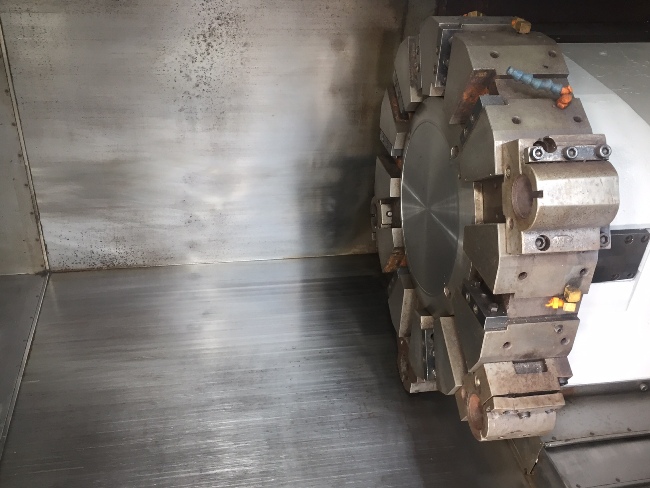

  • Servo Driven Turret
  • Servo Driven Tailstock
  • JorgensonChip Conveyor (Side Exit)
  • Multi-Tap Transformer
  • (4) Boring Bar Holders
  • (8) OD Wedge Blocks
