Special Item

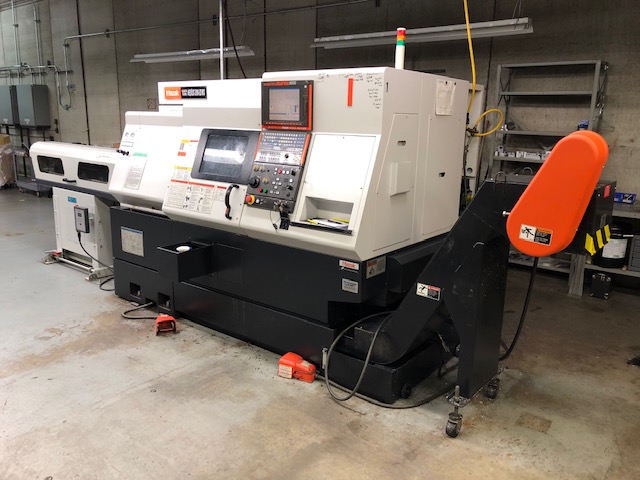

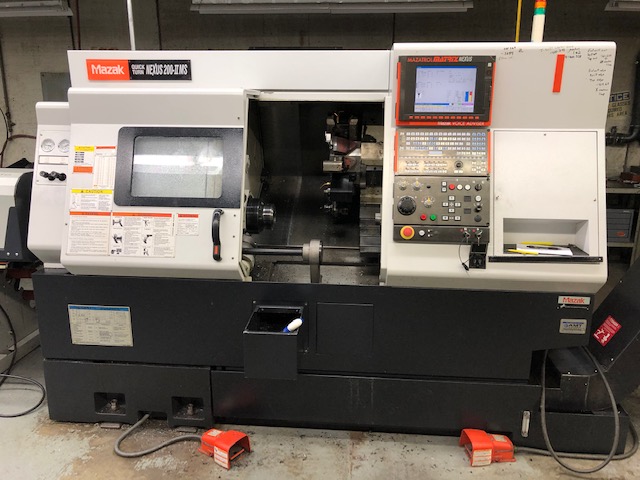

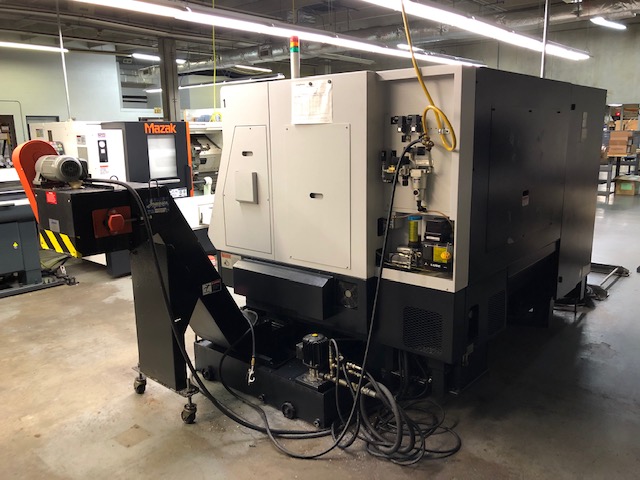

2008 MAZAK QUICK TURN NEXUS 200-IIMS

Matrix Nexus, 2.6" Bar, 8" Chuck, 5000 RPM, 12 Tools, 25 HP, Live Tooling, Sub Spindle, LNS Barfeed, Chip Conveyor, Parts Catcher
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 8"
  • Max Diameter Bar Capacity 2.6"
  • Max Swing Over Bed / Carriage 26.5" / 14.7"
  • Max Machining Length 20.1"
  • Spindle Motor 25 HP
  • Spindle Speed 5000 RPM
  • Spindle Nose A2-8
  • Spindle Bore 3"
  • Tools 12 (All Live)
  • Milling Motor 7.5 HP
  • Milling Speed 25 - 4500 RPM

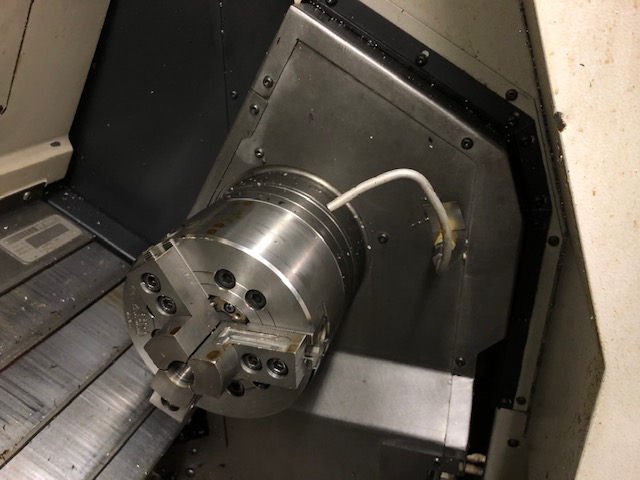

  • Sub Spindle Chuck Size 6"
  • Sub Spindle Motor 15 HP
  • Sub Spindle Speed 6000 RPM
  • Rapid Traverse Rates (X / Z) 1181 / 1299 IPM
  • X-Axis Travel 9"
  • Z-Axis Travel 22.62"
  • C-Axis Index .001 Degree
  • Turret Index (Single Step / Full) 0.2 / 0.6 Seconds
  • Machine Weight 11,000 lbs.

Product Features

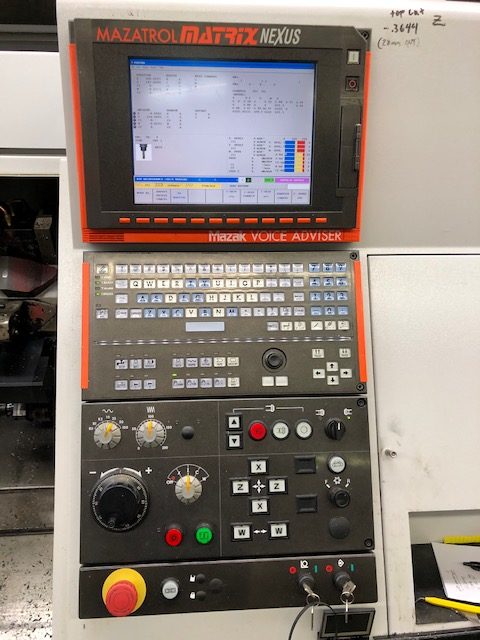

  • MAZATROL Matrix Nexus CNC Control
  • 10.4" Color LCD
  • USB Port
  • PC/MCIA Interface
  • C-Axis Live Tooling Capability
  • Programmable Sub Spindle

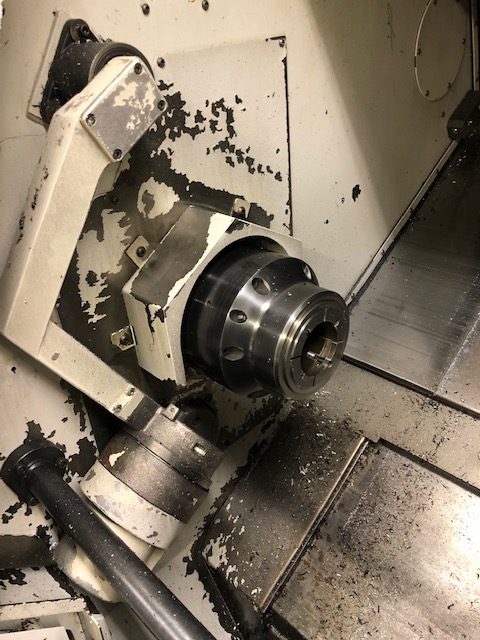

  • Royal S26 Collet Chuck for Main Spindle
  • 6" Kitagawa Hydraulic Chuck for Sub Spindle

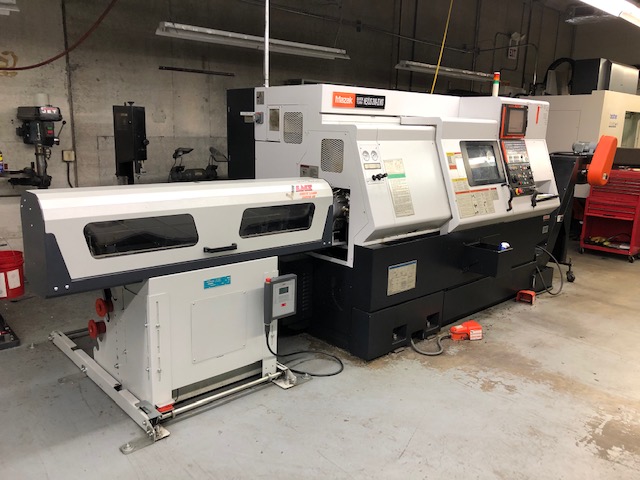

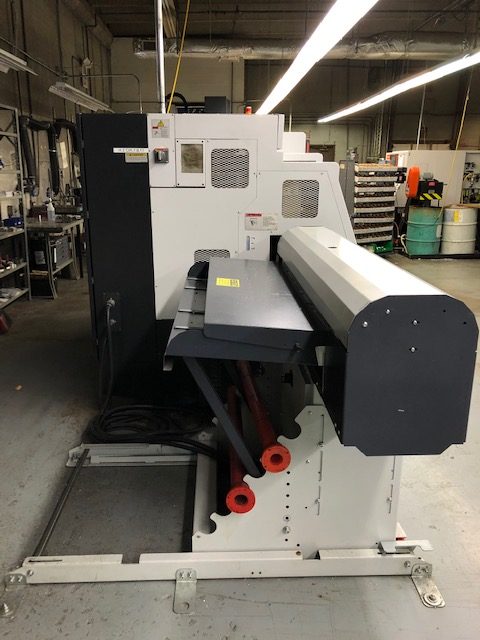

  • LNS Quick Load Servo S65 Short Magazine Barfeed
  • Auto Parts Catcher
  • Jorgensen Chip Conveyor (Side Exit Hinge Type)
  • Multi-Tap Transformer
  • Three Color Tower Light
  • (2) Face Live Holders
  • (5) Turning Holders
  • (4) Boring Bar Holders
  • (1) Cut Off Holder
  • Manufacture Date June 2008
  • 26,105 Power On Time
  • 14,103 Auto Operation Time
  • 12,392 Auto Cut Time
  • 5409 Total Cut Time
  • 26,105 Total Time
