Special Item

2008 HAAS SL-30T

3" Bar, 10" Chuck, 3400 RPM, 12 Tools, 30 HP, Tailstock, Tool Presetter, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 10"
  • Max Diameter Bar Capacity 3"
  • Max Swing Over Bed / Carriage 30" / 14.5"
  • Max Machining Length 32"
  • Spindle Motor 30 HP
  • Spindle Speed 20 - 3400 RPM
  • Spindle Nose A2-6
  • Spindle Bore 3.5"
  • Tools 12
  • Rapid Traverse Rates (X & Z) 710 IPM
  • X-Axis Travel 11.3"
  • Z-Axis Travel 34"
  • Machine Dimensions (L x W x H) 162" x 77" x 74"
  • Machine Weight 16,000 lbs.
  • Distance Between Centers 39"
  • Max Turning Diameter 17"
  • Spindle Torque 300 ft. lbs.
  • Tailstock Taper MT#4

Product Features

  • HAAS CNC Control
  • 10" Color CRT

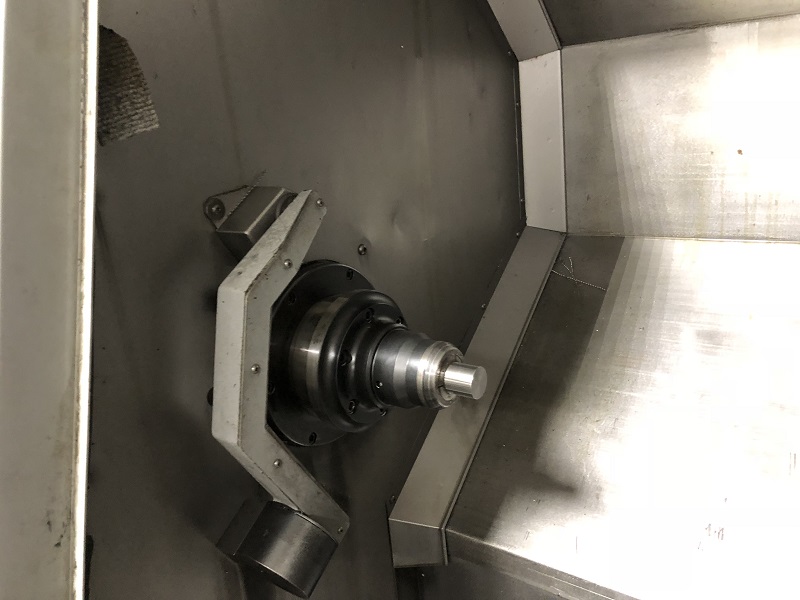

  • 10" Hydraulic Chuck
  • Fully Programmable Hydraulic Tailstock

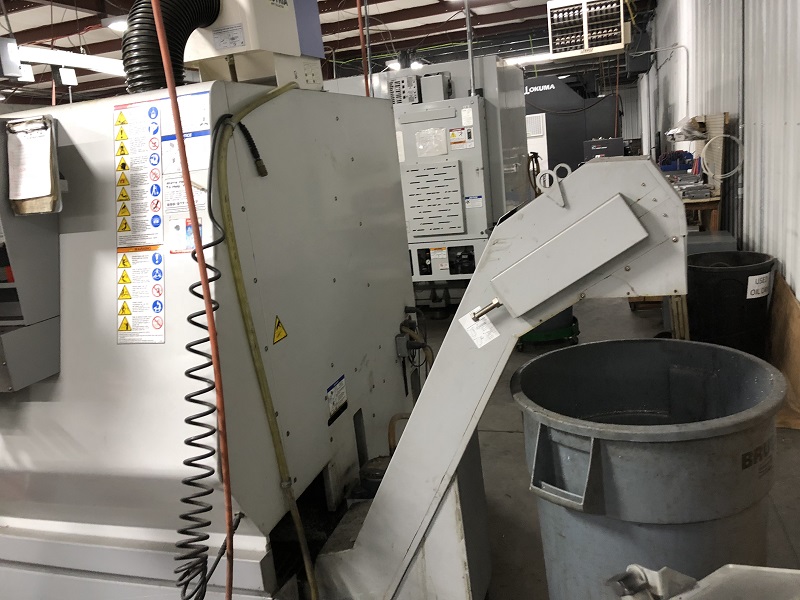

  • Chip Conveyor (Side Exit)
  • (5) Boring Bar Holders
  • (3) OD Wedge Blocks
  • Manufacture Date February 2008
  • 21,973 Servo On Time
  • 3649 In Motion Time
  • 6134 Spindle Time
