Special Item

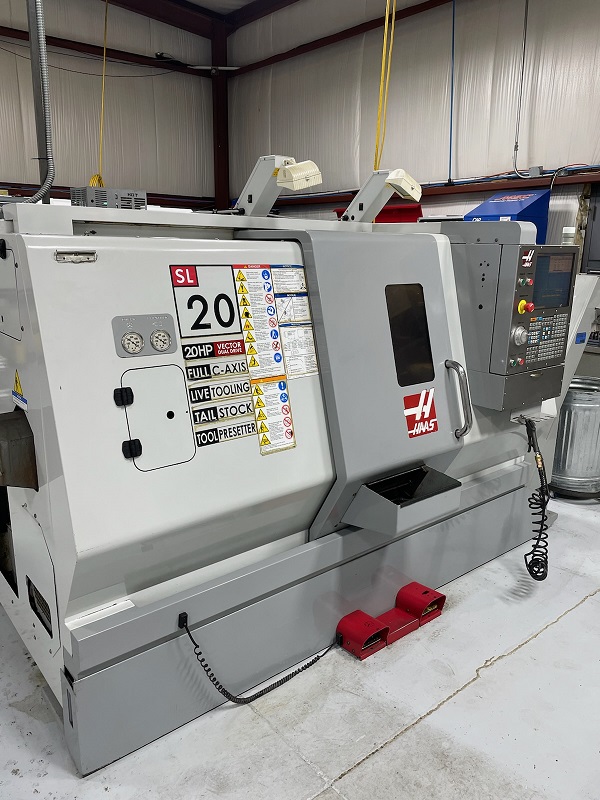

2008 HAAS SL-20TM

HAAS, 2" Bar, 8.3" Chuck, 20 HP, 12 Tools, 4000 RPM, Live Tooling, Tailstock, Tool Presetter, Parts Catcher, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 8.3"
  • Max Diameter Bar Capacity 2"
  • Max Swing Over Bed / Carriage 20" / 9.5"
  • Max Machining Length 20"
  • Spindle Motor 20 HP
  • Spindle Speed 50 - 4000 RPM
  • Spindle Nose A2-6
  • Spindle Bore 3"
  • Tools 12 / 6 Live
  • Milling Motor 5 HP
  • Milling Speed 3000 RPM
  • Rapid Traverse Rates 710 IPM
  • X-Axis Travel 8.45"
  • Z-Axis Travel 20"
  • C-Axis Index .001 Degrees
  • Machine Dimensions (L x W x H) 124" x 60" x 70"
  • Machine Weight 9000 lbs.
  • Distance Between Centers 24"
  • Max Turning Diameter 10.3"
  • Spindle Torque 154 ft. lbs.
  • Tailstock Taper MT#4

Product Features

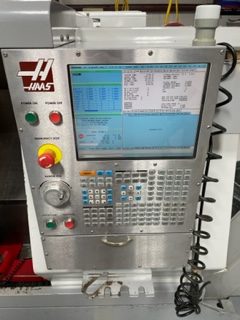

  • HAAS 32-BIT CNC CONTROL
  • 12" Color TFT
  • USB Port
  • C-Axis Milling Capability

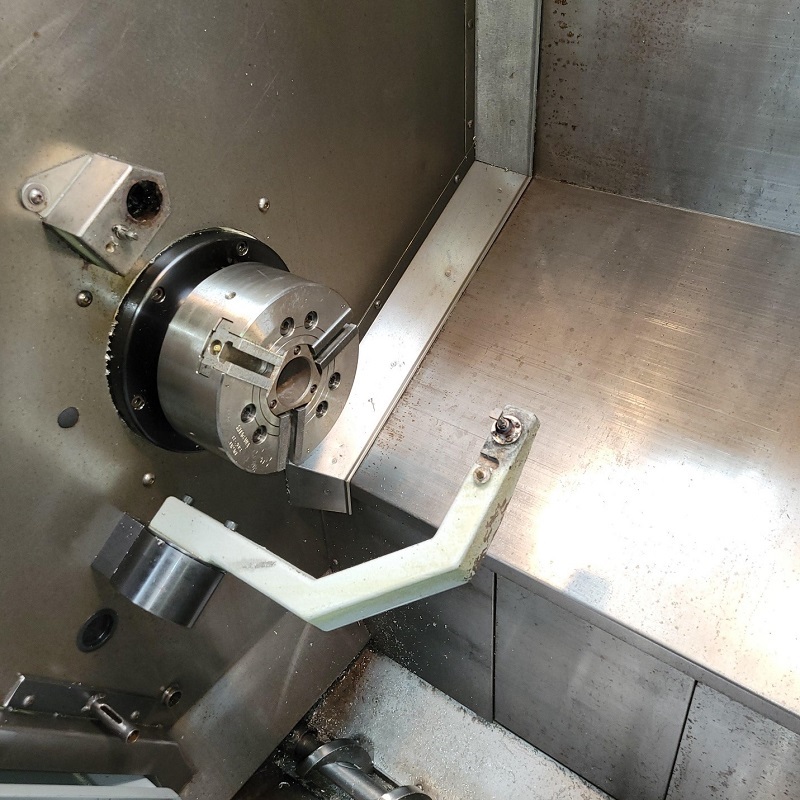

  • 8" Hydraulic 3-Jaw Chuck
  • Fully Programmable Hydraulic Tailstock
  • Tool Presetter
  • Rigid Tapping

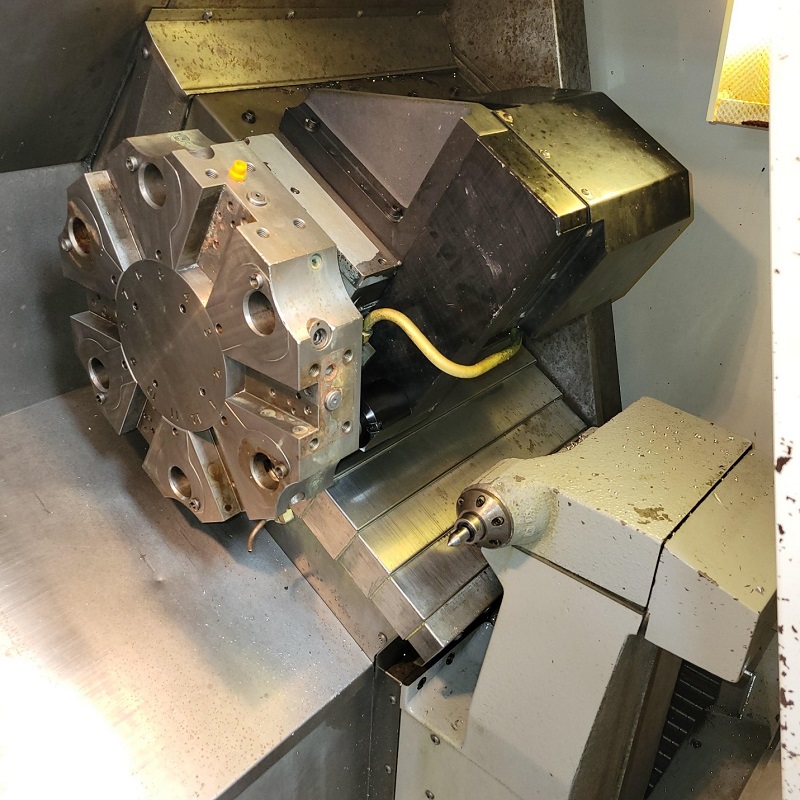

  • Hybrid Turret

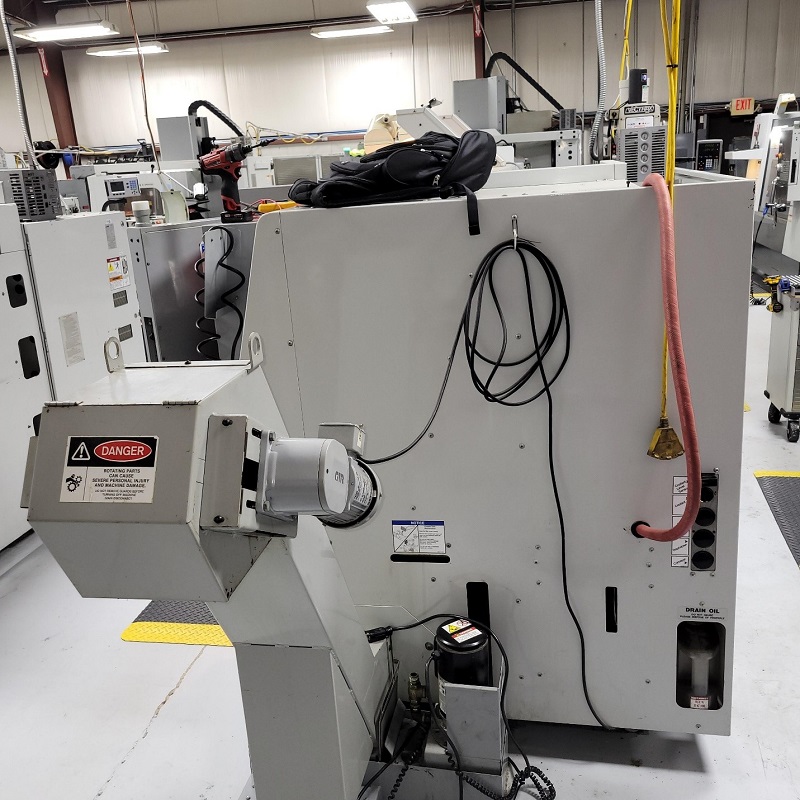

  • Chip Conveyor
  • High Intensity Lighting
  • Green Work Indicator Light
  • Manufacture Date December 2008

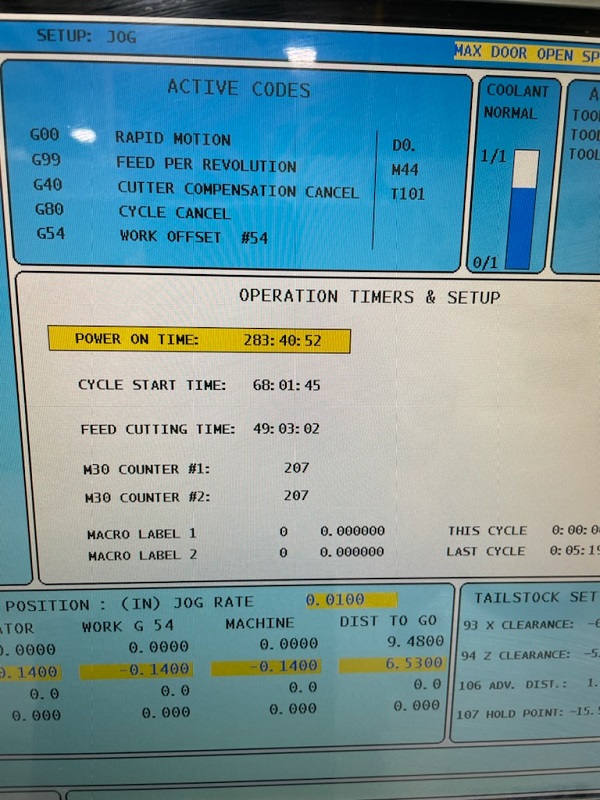

  • 279 Servo On Time
  • 64 In Motion Time
  • 65 Spindle Time
