Special Item

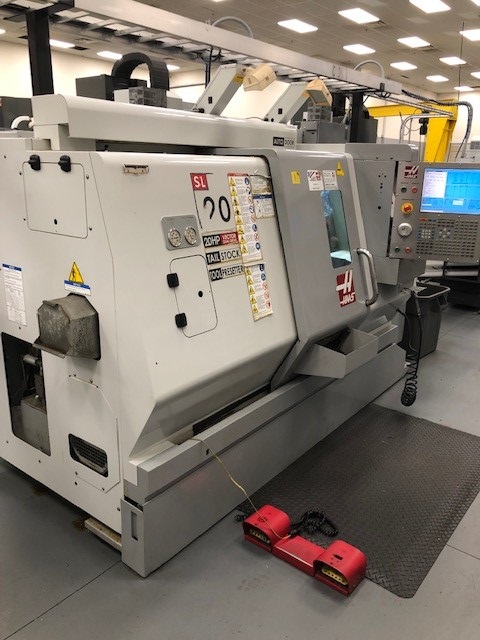

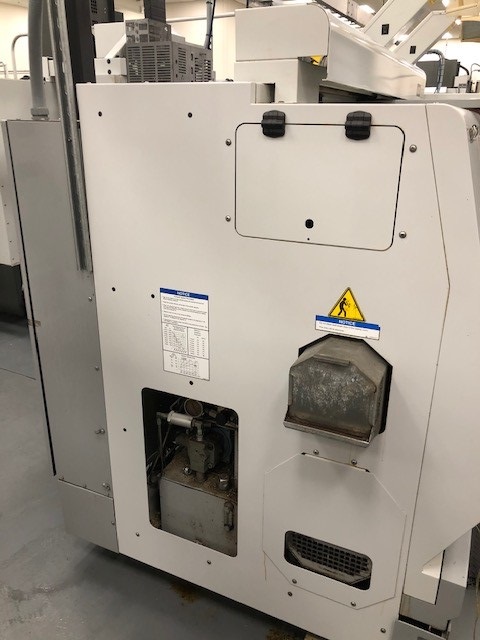

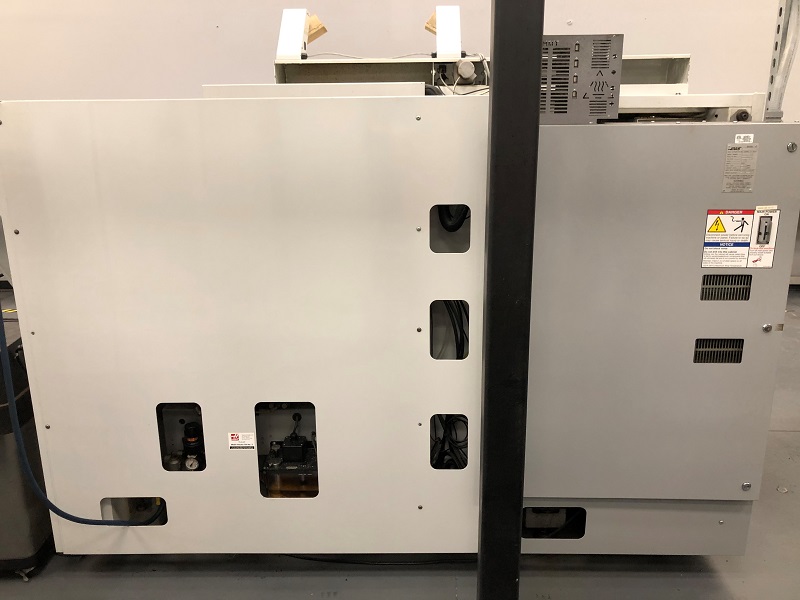

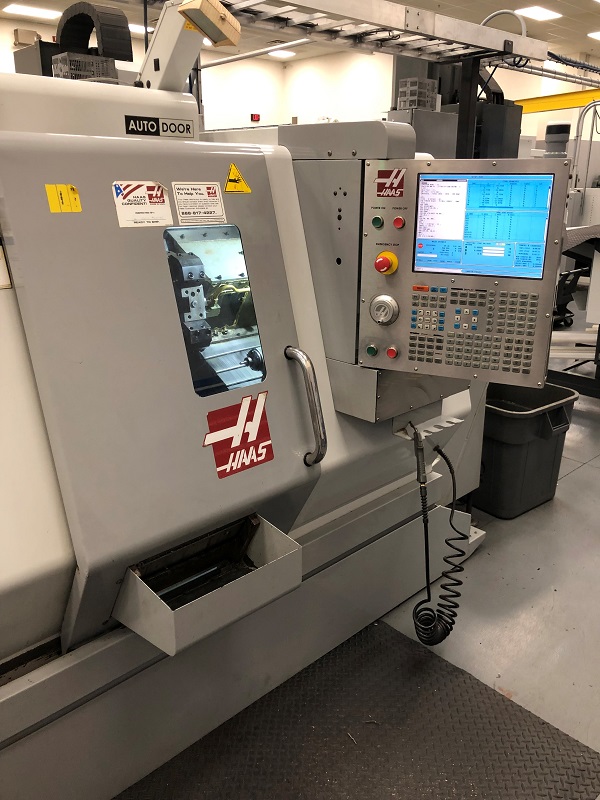

2008 HAAS SL-20T

2" Bar, 8" Chuck, 10 Tools, 20 HP, 3400 RPM, Tailstock, Tool Presetter, Parts Catcher, Bolt-On Turret, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 8"
  • Max Diameter Bar Capacity 2"
  • Max Swing Over Bed / Carriage 20" / 9.5"
  • Max Machining Length 20"
  • Spindle Motor 20 HP
  • Spindle Speed 3400 RPM
  • Spindle Nose A2-6
  • Spindle Bore 3"
  • Tools 10
  • Rapid Traverse Rates 710 IPM
  • X-Axis Travel 8.45"
  • Z-Axis Travel 20"
  • Machine Dimensions (L x W x H) 129" x 88" x 72"
  • Machine Weight 9000 lbs.
  • Distance Between Centers 24"
  • Max Turning Diameter 10.3"
  • Spindle Torque 154 ft. lbs.
  • Tailstock Taper MT#4

Product Features

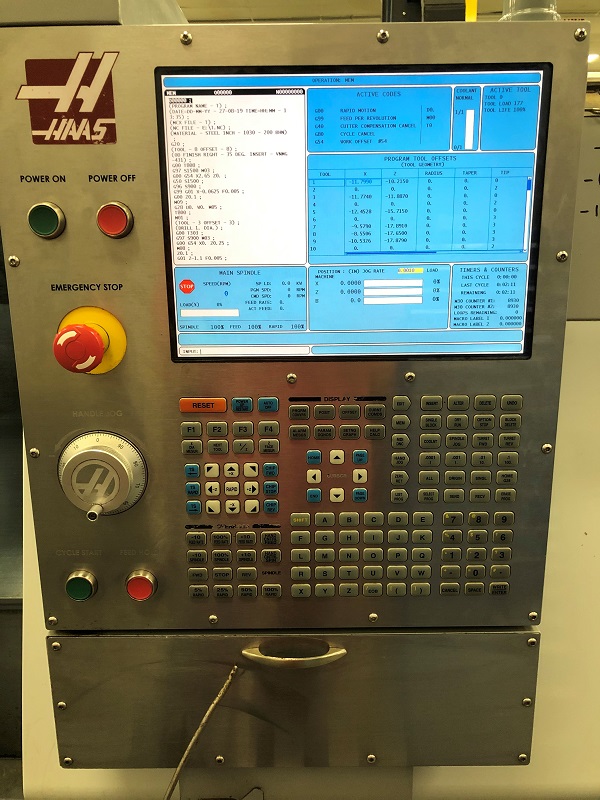

  • HAAS 32-BIT CNC CONTROL
  • 12" Color LCD

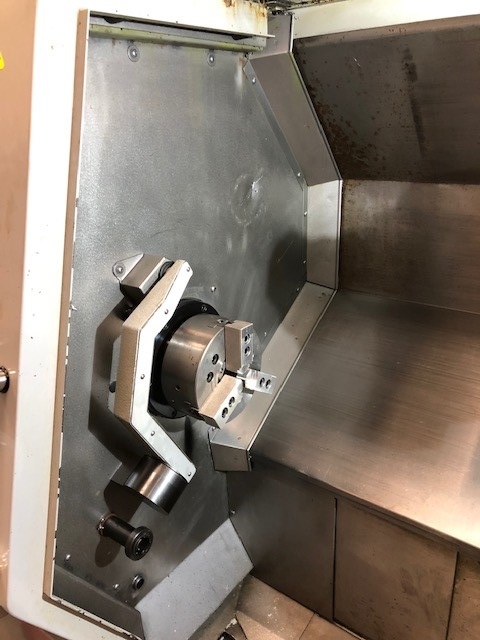

  • 8" Hydraulic Chuck
  • USB Port
  • Fully Programmable Hydraulic Tailstock
  • Tool Presetter

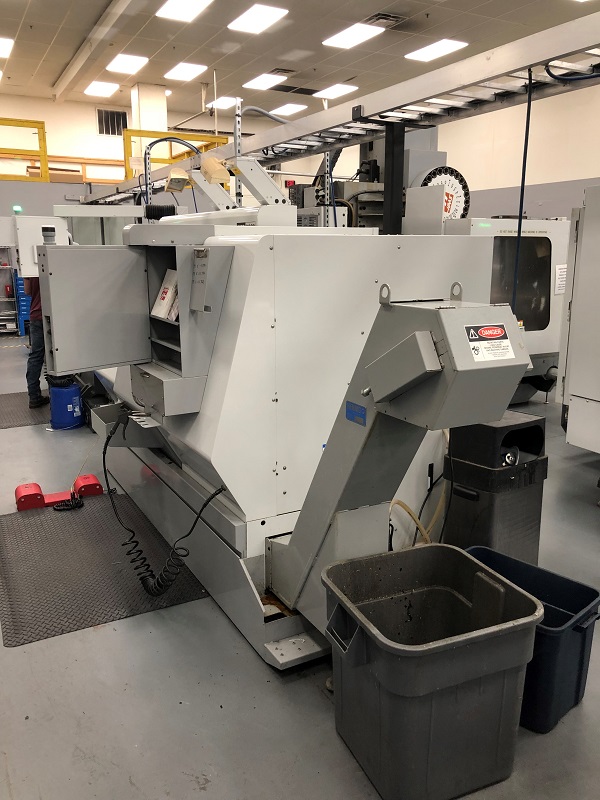

  • Hennig Chip Conveyor (Side Exit Hinge Belt)
  • Auto Parts Catcher

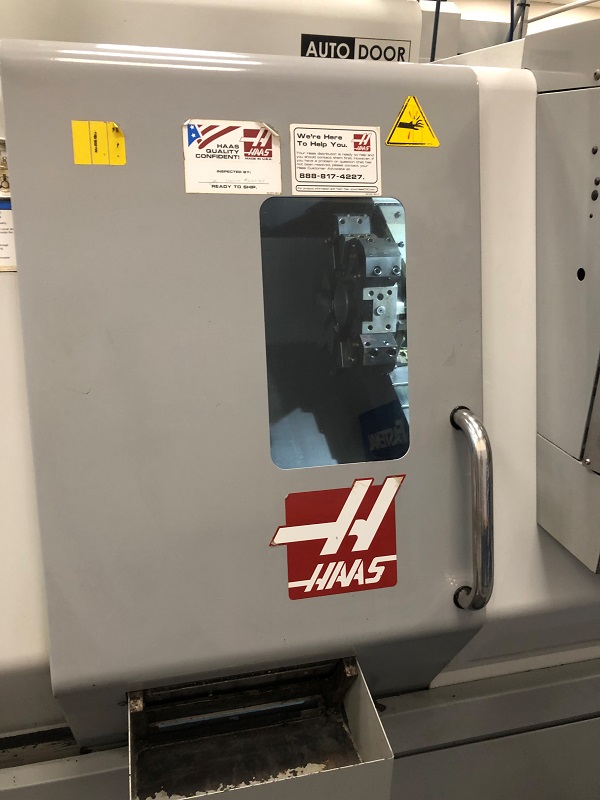

  • Auto Door
  • Robot Interface
  • Intuitive Programming System
  • Macros
  • Spindle Orientation
  • Rigid Tapping
  • Green Work Indicator Light
  • High Intensity Lighting
  • Bolt-On Turret
  • (3) Boring Bar Holders
  • (3) OD Wedge Blocks
  • Manufacturing Date September 2008
  • 2854 Motion Time
  • 2686 Spindle Time
