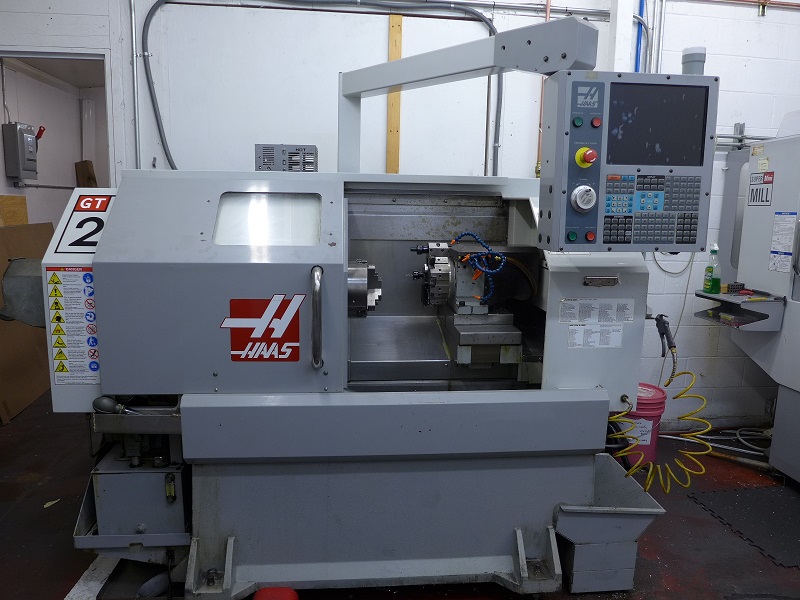

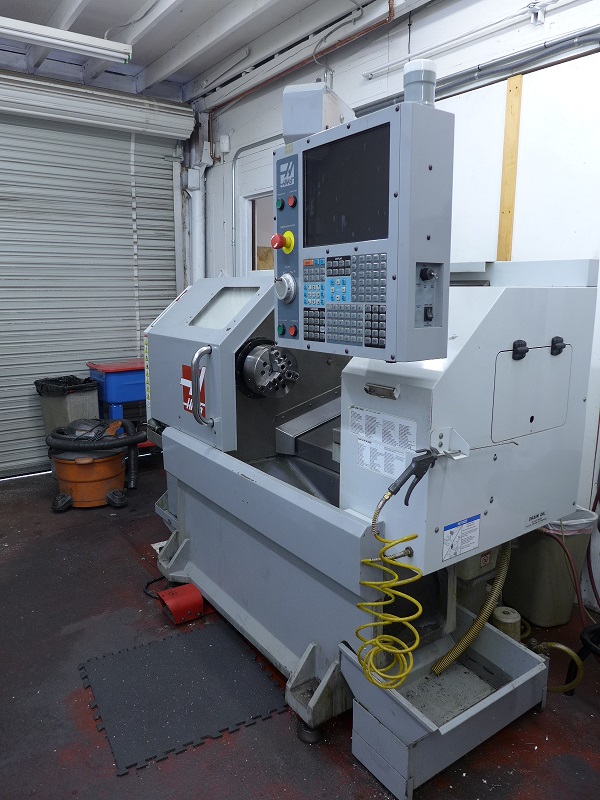

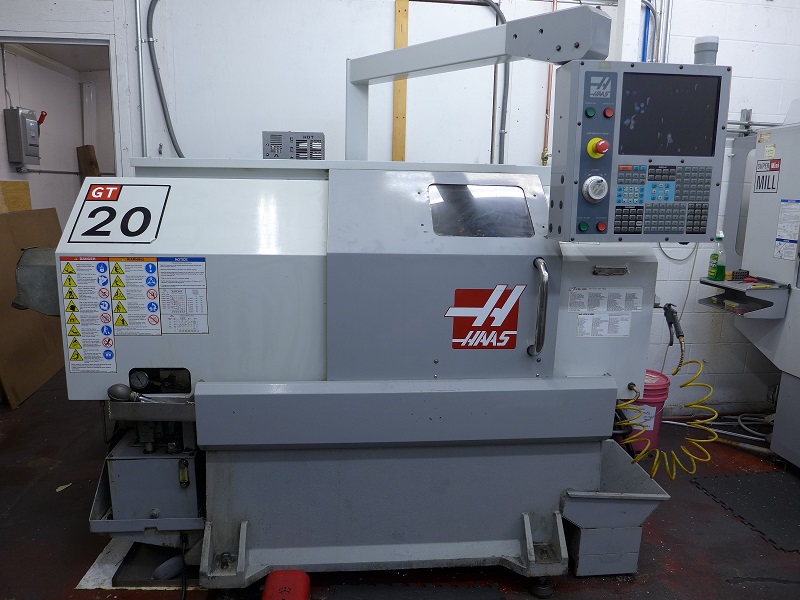

2008 HAAS GT-20

1.5" Bar, 8" Chuck, 8 Tools, 4000 RPM, 10 HP, Bolt-On Turret
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 8"
  • Max Diameter Bar Capacity 1.5"
  • Spindle Motor 10 HP
  • Spindle Speed 4000 RPM
  • Spindle Nose A2-6
  • Spindle Bore 2.0"
  • Rapid Traverse Rates (X & Z) 710 IPM
  • X-Axis Travel 6"
  • Z-Axis Travel 12"
  • Machine Dimensions (L x D x H) 96" x 54" x 70"
  • Machine Weight 4100 lbs.
  • Max Turning Diameter 11"
  • Max Turning Length 12"

Product Features

  • HAAS CNC Control
  • 12" Color LCD
  • USB Port

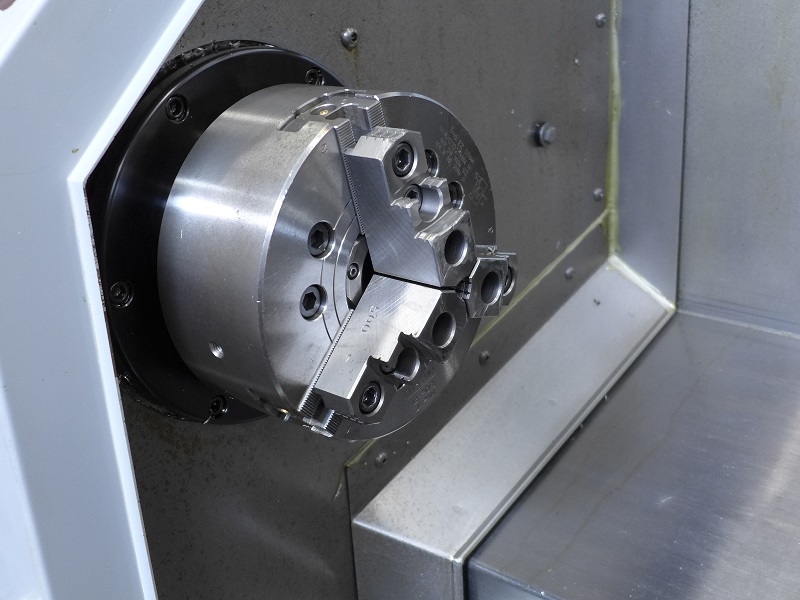

  • 8" Hydraulic Chuck

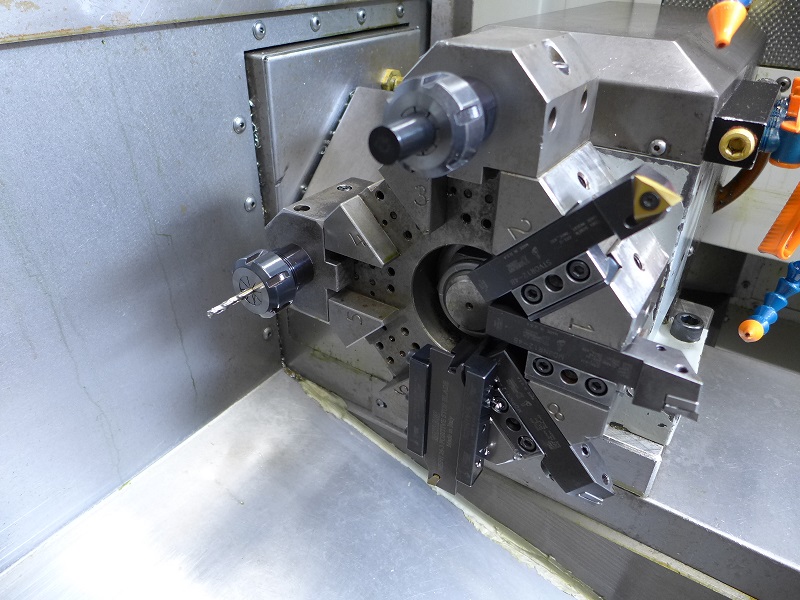

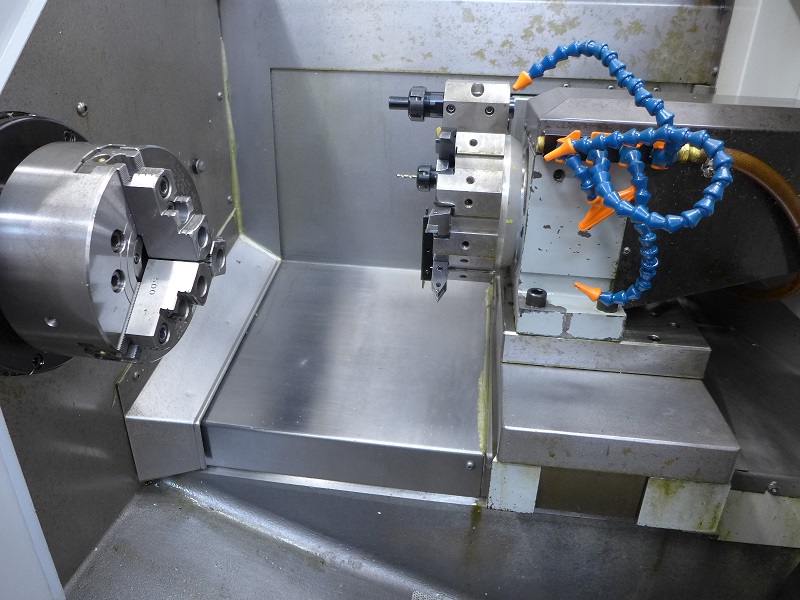

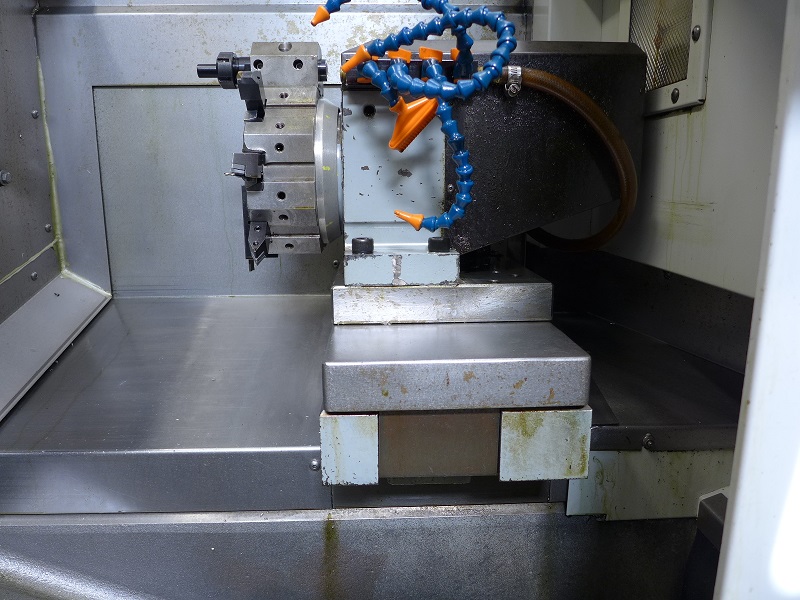

  • 8 Position Bolt-On Turret
  • (2) Boring Bar Holders
  • (4) OD Wedge Blocks
  • Chucker (No Tailstock)
  • Manufacture Date March 2008

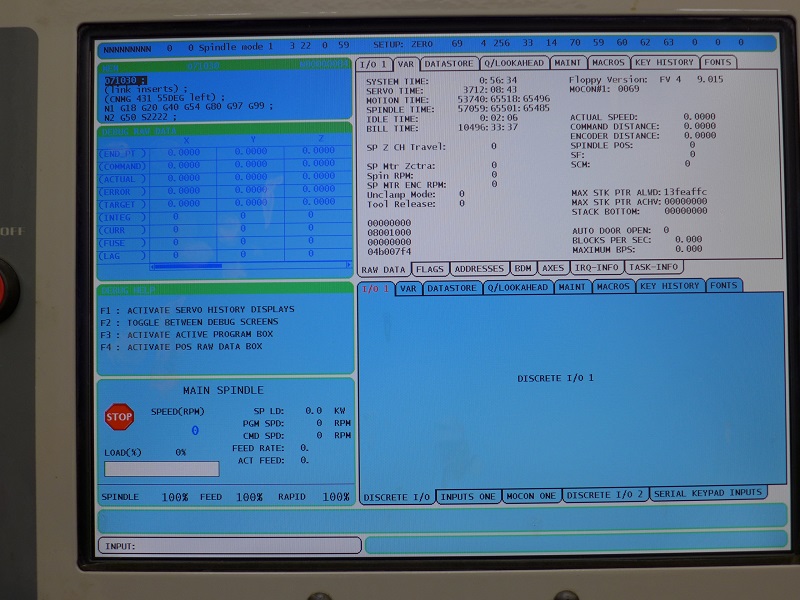

  • 3712 Servo Time
