Special Item

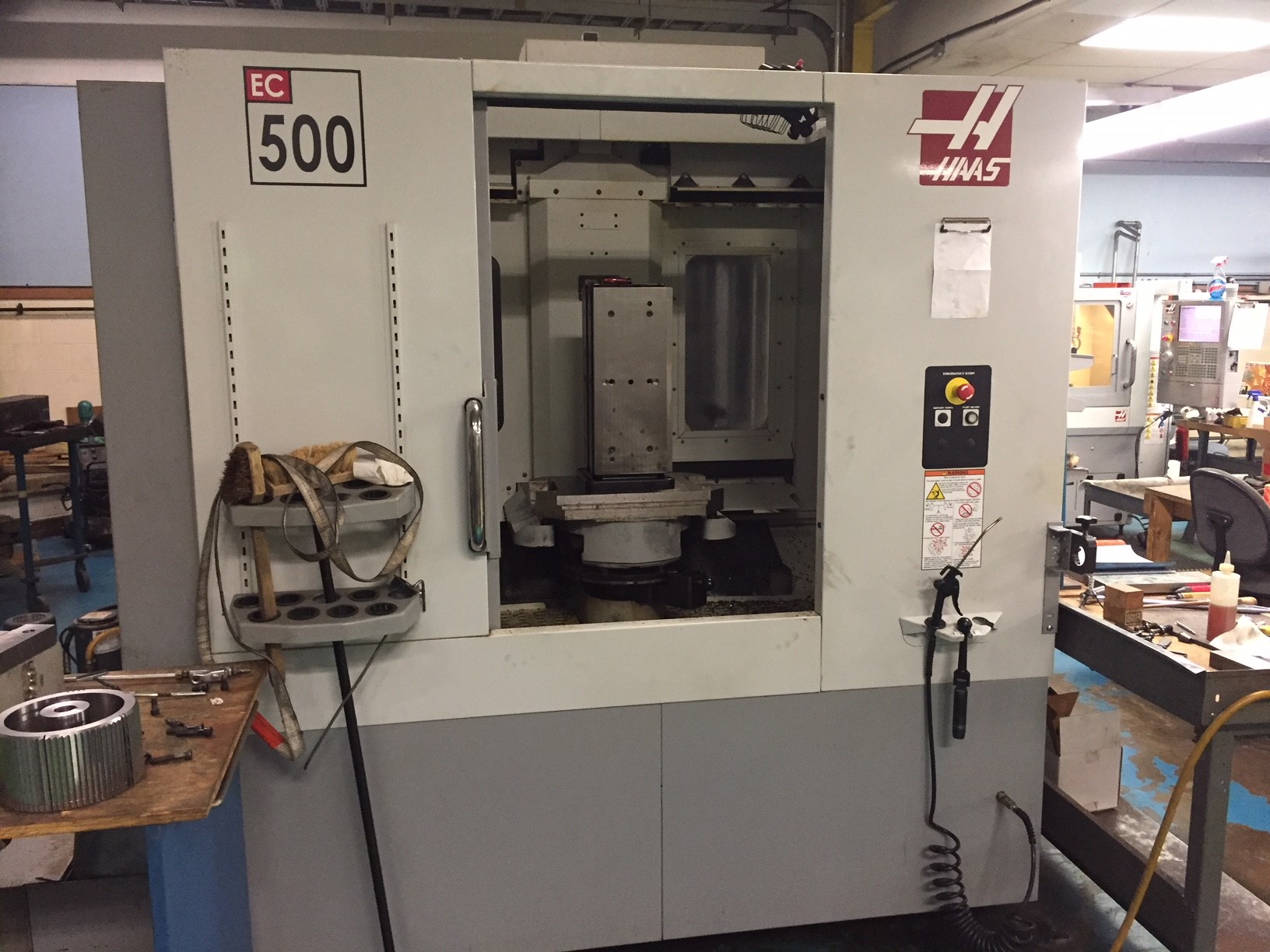

2008 HAAS EC-500

(2) 20" Plt, 32.20.28", Fourth Axis, 70 Tools, 12000 RPM, 30HP, Cat 40, CTS, Probes, Auger
Talk to a representative today!
(803) 548-8000

Product Details

  • Pallet Size 20"
  • X-Axis 32"
  • Y-Axis 20"
  • Z-Axis Travel 28"
  • Pallet Index .001 Degrees
  • Spindle Speed 12,000 RPM
  • Spindle Taper Cat 40
  • Spindle Motor 30 HP
  • Tools 40
  • Rapid Traverse Rates 1000 IPM
  • Tool Change Time (T - T / C - C) 1.6 / 2.8
  • Max Pallet Load Capacity 1000 lbs.
  • Max Tool Diameter 3" / 6"
  • Max Tool Length 12"
  • Max Tool Weight 12 lbs.
  • Machine Dimensions (L x W x H) 156" x 164" x 102"
  • Machine Weight 24,000

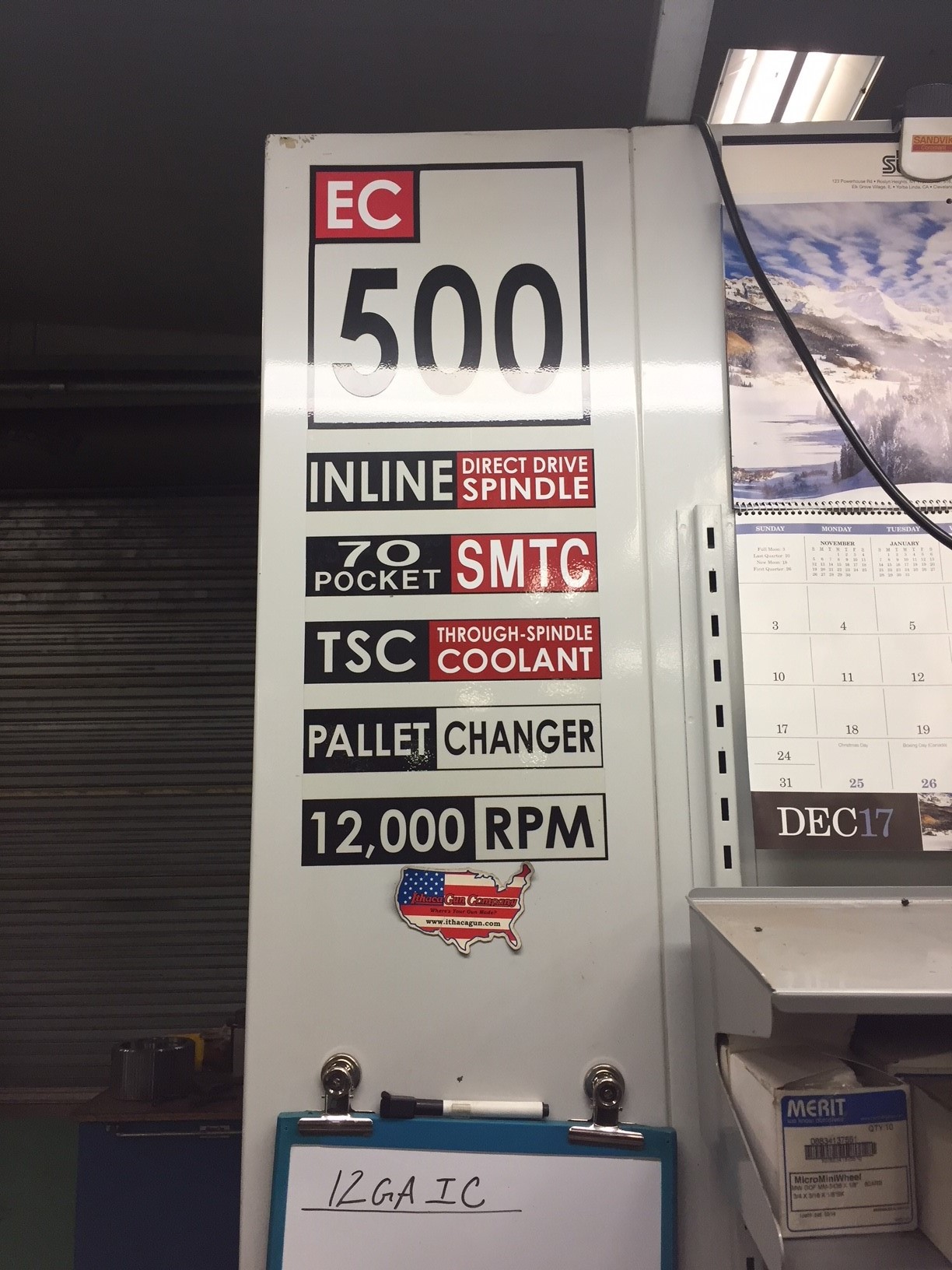

  • Notes 12000 RPM Inline 30 HP Direct Drive Spindle

Product Features

  • HAAS CNC CONTROL
  • 15" Color LCD
  • (2) 20" Pallets
  • Fourth Axis
  • Tool & Touch Probes
  • Coolant Thru Spindle
  • Programmable Coolant
  • 70 Position Side Mount Tool Changer
  • Green Work Indicator Light
  • Chip Auger
  • Tool Shelves
  • Mfg Date June 2008
  • 2845 Servo On Time
  • 1173 In Motion Time
  • 1183 Spindle Time
