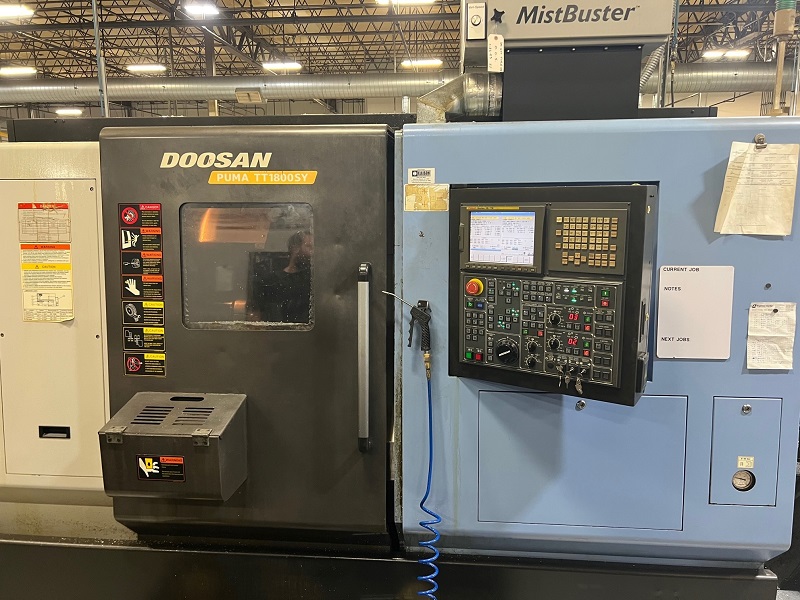

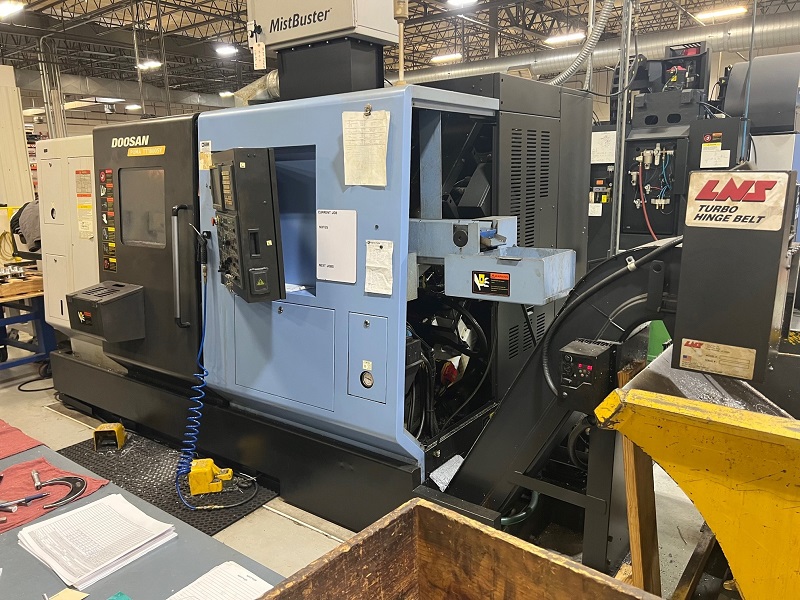

2008 DOOSAN PUMA TT-1800SY

Fanuc 18iTB, 2.63" Bar, 8" Chucks, 12 + 12 Tools, 5000 RPM, 30 HP, Y-Axis, Twin Turrets, Twin Spindles
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 8"
  • Max Diameter Bar Capacity 2.63"
  • Max Machining Length 27.38"
  • Spindle Motor (Left & Right) 30 / 25 HP
  • Spindle Speed 50 - 5000 RPM
  • Spindle Nose (Left & Right) A2-6
  • Spindle Bore (Left & Right) 2.99"

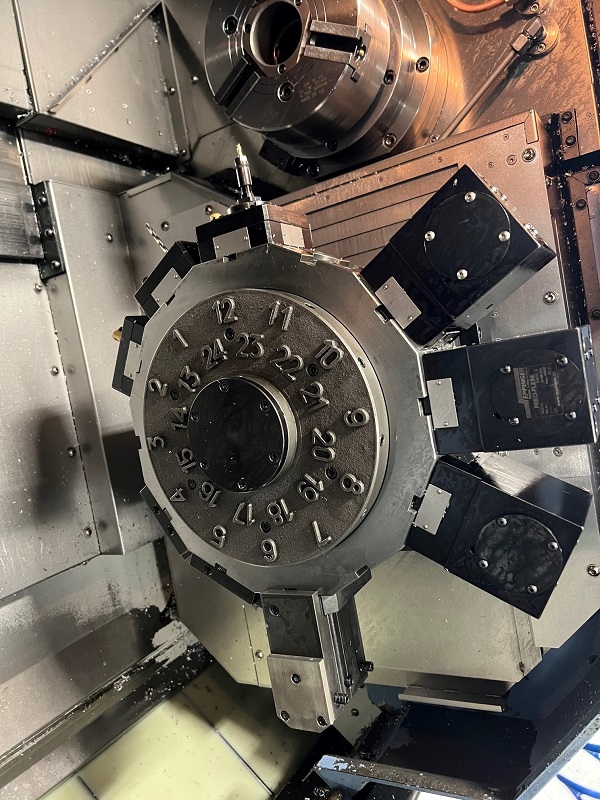

  • Tools (Upper / Lower Turret) 12 / 12 (All Live)
  • Milling Motor 7.5 HP
  • Milling Speed 5000 RPM

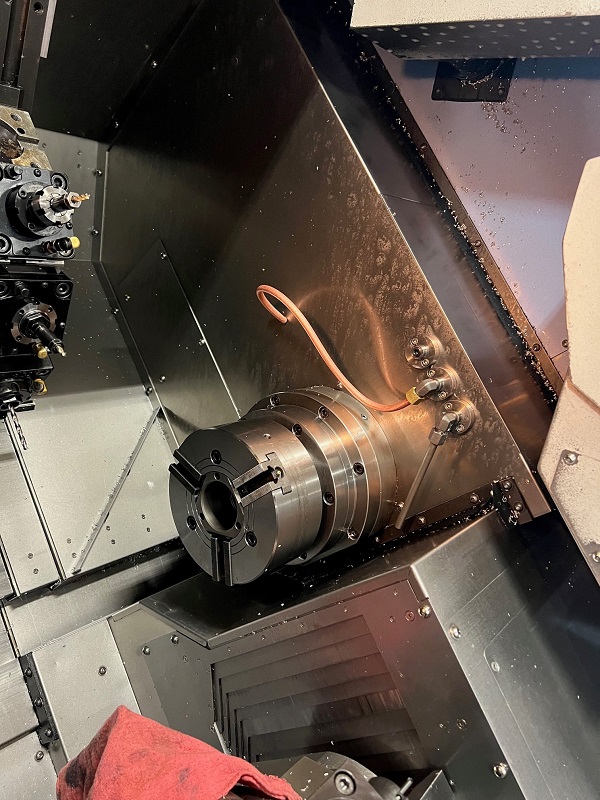

  • Sub Spindle Motor 30 HP
  • Sub Spindle Speed 5000 RPM
  • Rapid Traverse Rates (X / Z) 787 / 1574 IPM
  • X-Axis Travel (Upper / Lower Turret) 6.5" / 7.48"
  • Z-Axis Travel (Upper / Lower Turret) 27.5" / 28.34"
  • C-Axis Index (Left & Right) .001 Degrees
  • Machine Dimensions (L x W x H) 154" x 81" x 82"
  • Machine Weight 17,000 lbs.
  • Distance Between Spindles 38.5"
  • Max Turning Diameter 9.05"
  • Right Spindle Travel 30.31"
  • Spindle Torque (Left & Right) 152 ft. lbs.
  • Y Axis Travel 3.93"

Product Features

  • FANUC 18i-TB CNC Control
  • 10.4" Color LCD
  • USB Port

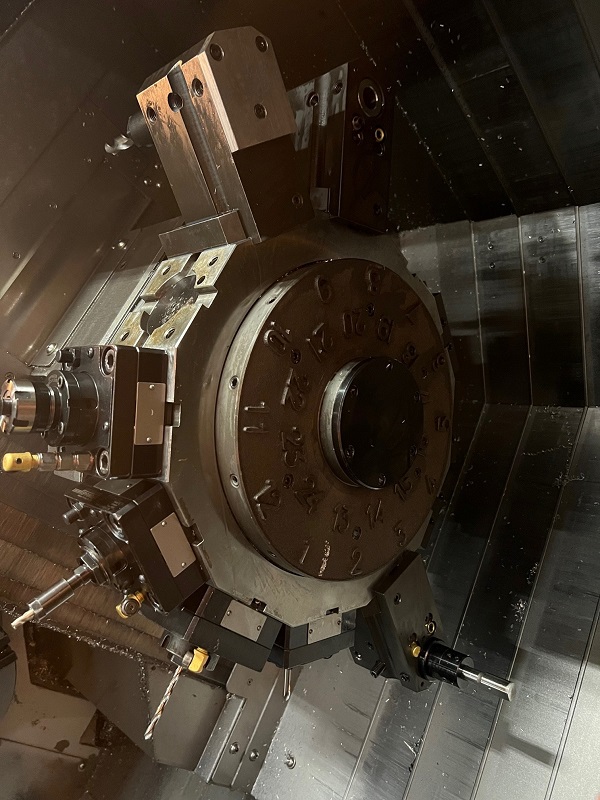

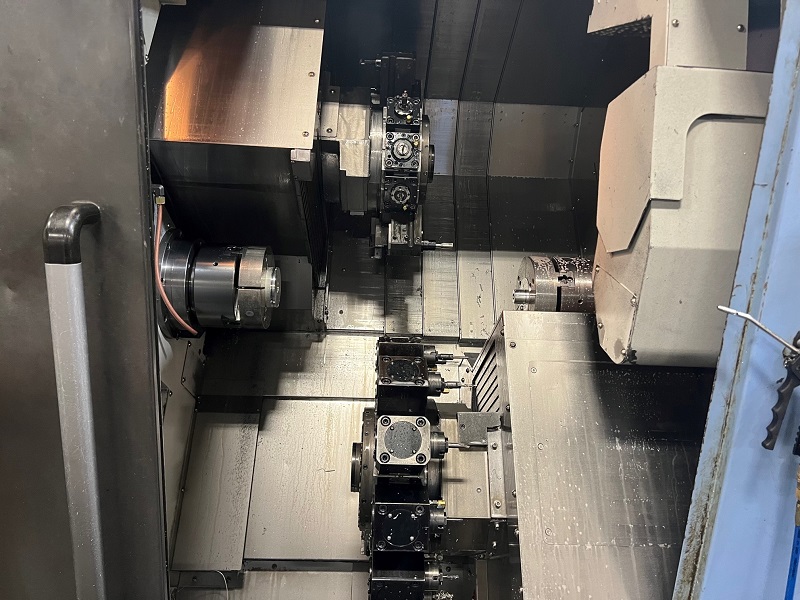

  • Twin Upper and Lower Turrets and Twin Opposed Spindles
  • Y-Axis Live Tooling on Upper Turret

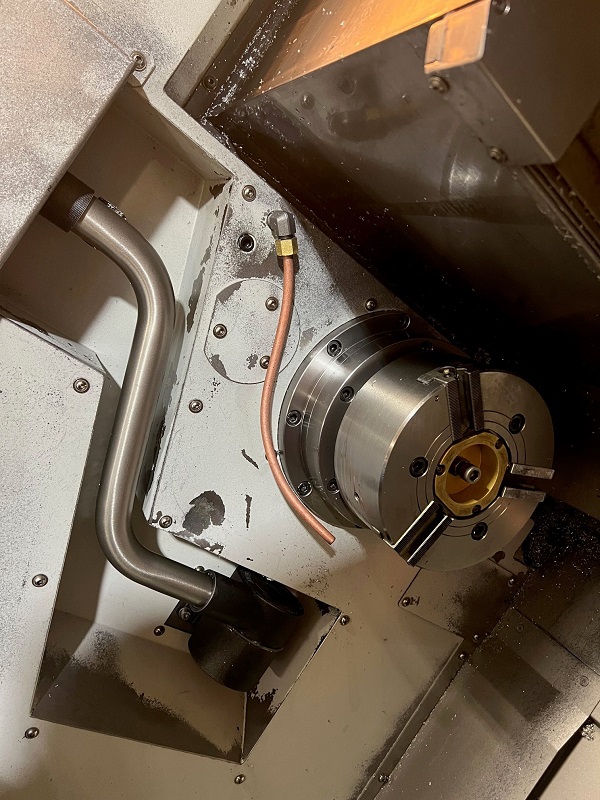

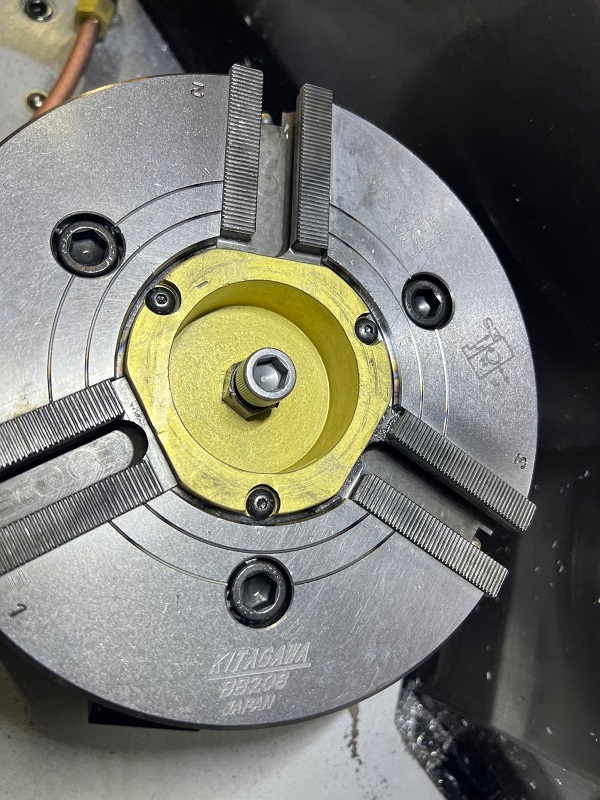

  • (2) 8" Kitagawa BB-208 Hydraulic Chucks
  • Auto Parts Catcher
  • Work Exit Conveyor
  • LNS Turbo Chip Conveyor (Side Exit Hinge Type)
  • Automatic Tool Presetter
  • Barfeed Interface
  • Three Color Tower Light
  • Mist Buster
  • Air Gun
  • (2) Eppinger BMT-55 OD Live Holders (ER25)
  • (2) Eppinger BMT-55 Face Live Holders (ER25)
  • (4) Turning Holders
  • (1) Double Turning Holder (Main and Sub Spindle)
  • (2) Facing Holders
  • (1) Cut Off Holder
  • (5) Boring Bar Holders (1.25" ID)
  • (1) Triple Boring Bar Holder (1" ID)
  • Manufacture Date April 2008

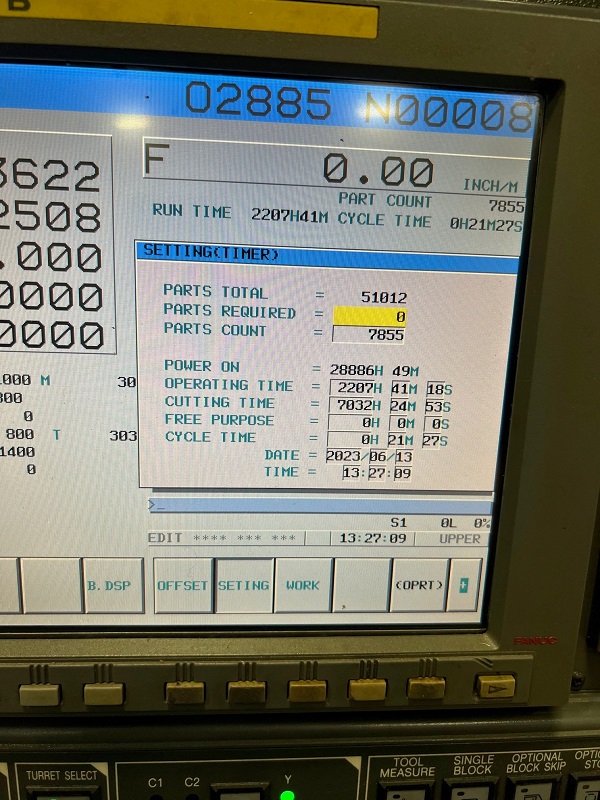

  • 28,886 Power On Time (Head 1)
  • 2207 Operating Time (Head 1)
  • 7032 Cutting Time (Head 1)
  • 27,837 Power On Time (Head 2)
  • 10,910 Operating Time (Head 2)
  • 4120 Cutting Time (Head 2)
