Special Item

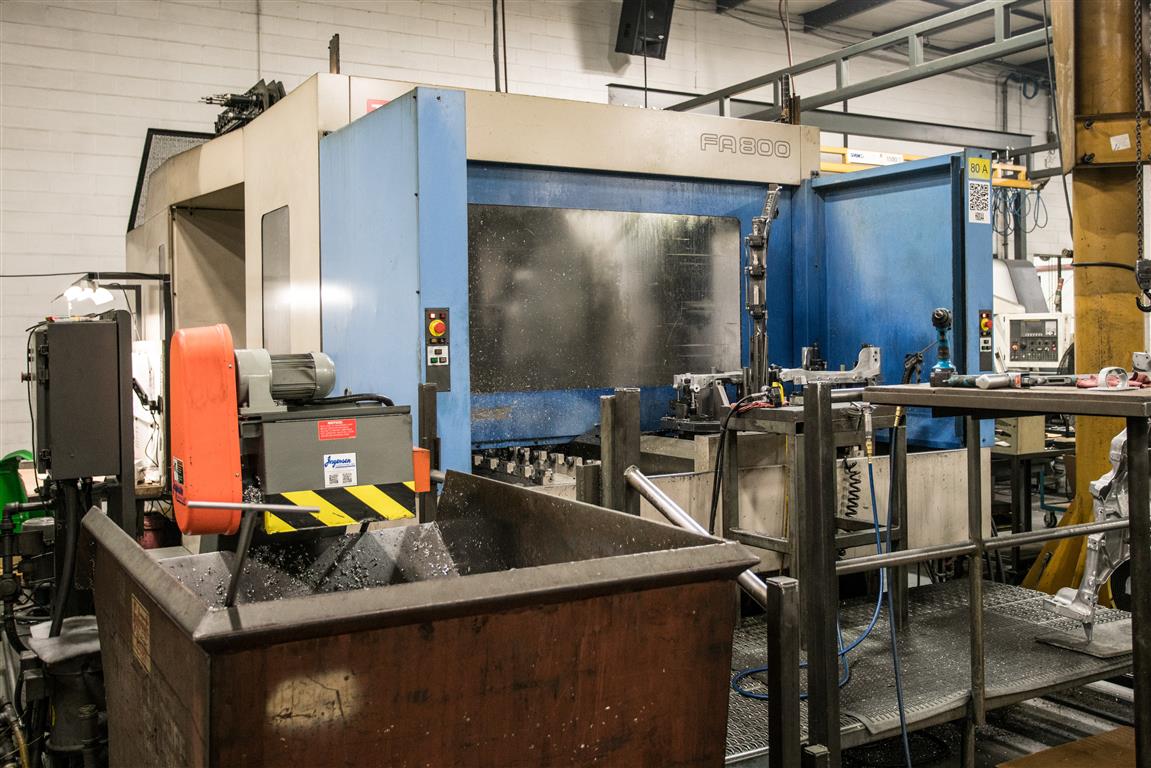

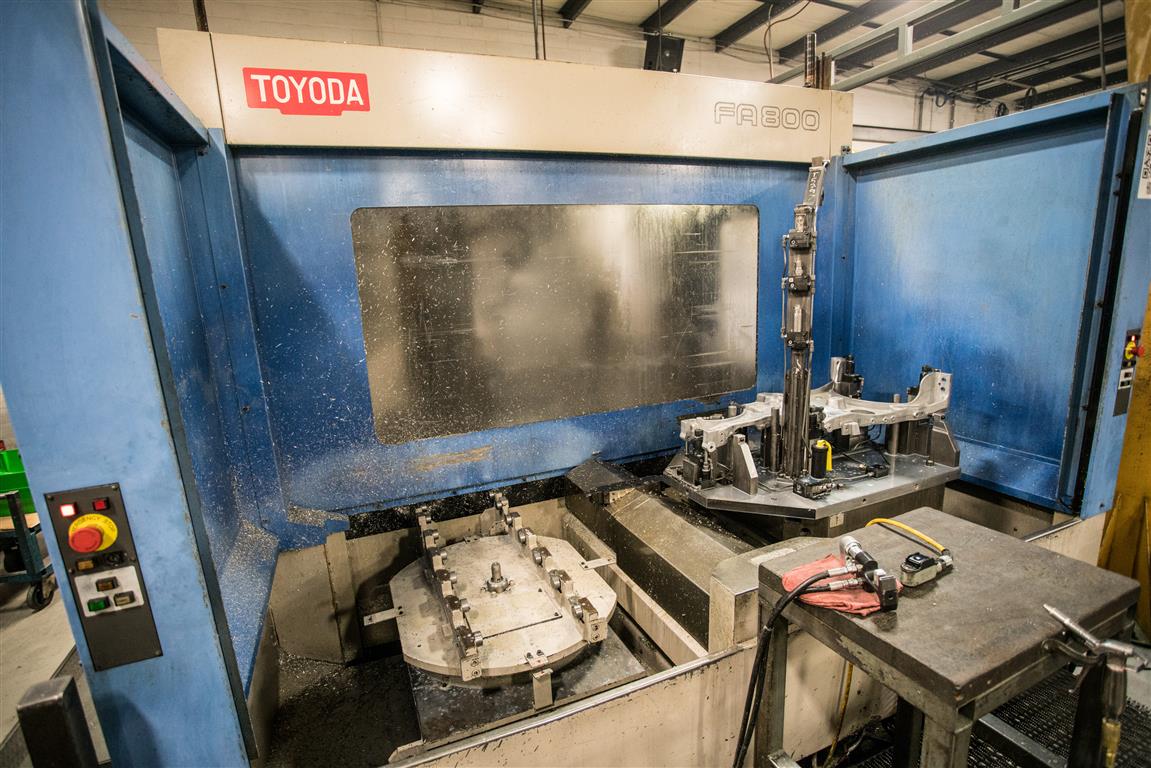

2005 TOYODA FA-800

Fanuc 16i-MB, 31.5" Plts, 53.45.45", 1 Degree, 6000 RPM, Cat 50, 40 HP, 60 Tools, TSC 1000 psi, Box Ways
Talk to a representative today!
(803) 548-8000

Product Details

  • Pallet Change Time (90 Deg / 180 Deg) 5 / 7.2 Seconds
  • Pallet Load Capacity 5500 lbs.
  • Pallet Size 31.5" (2)
  • X-Axis 53.1"
  • Y-Axis 45.2"
  • Z-Axis 45.2"
  • Pallet Index 1 Degree
  • Spindle Speed 35 - 6000 RPM
  • Spindle Taper Cat 50
  • Spindle Motor 40 / 30 HP AC
  • Spindle Center to Table Top 7.87" - 53.1"
  • Spindle Nose to Table Center 1.97" - 47.2"
  • Tools 60
  • Max Tool Diameter 4.7" / 9.4"
  • Max Tool Length 21.7"
  • Max Tool Weight 77 lbs.
  • Max Workpiece Dia / Height 63" / 51.2"
  • Machine Dimensions (L x W x H) 266" x 173" x 152"
  • Machine Weight 46,000

Product Features

  • FANUC 16i-MB CNC CONTROL
  • 10.4" Color LCD
  • PC/MCIA Interface

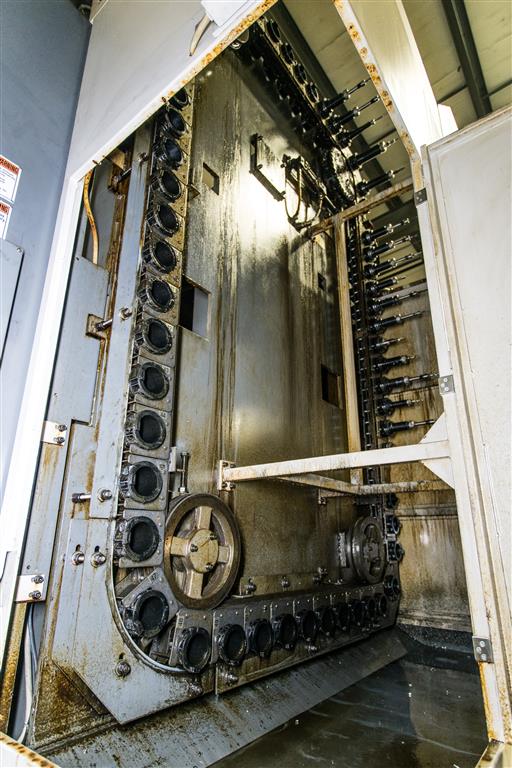

  • 60 Position Automatic Tool Changer
  • Thru Spindle Coolant (1000 psi)
  • Spindle Chiller Unit
  • Rigid Tapping
  • Spindle Air Blast
  • Heavy Duty Box Way Construction
  • Installed in 2007
