Special Item

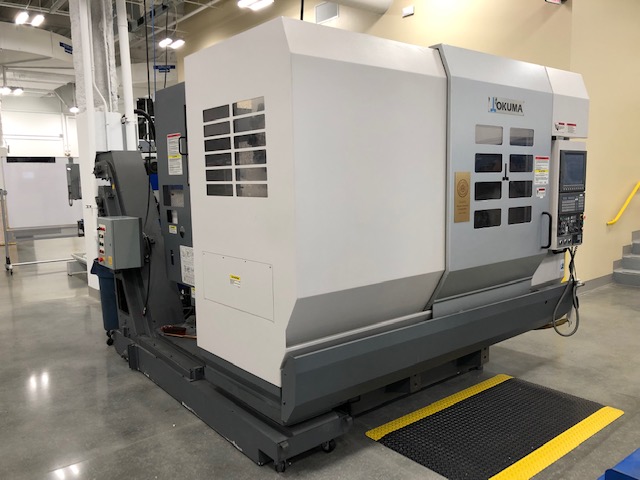

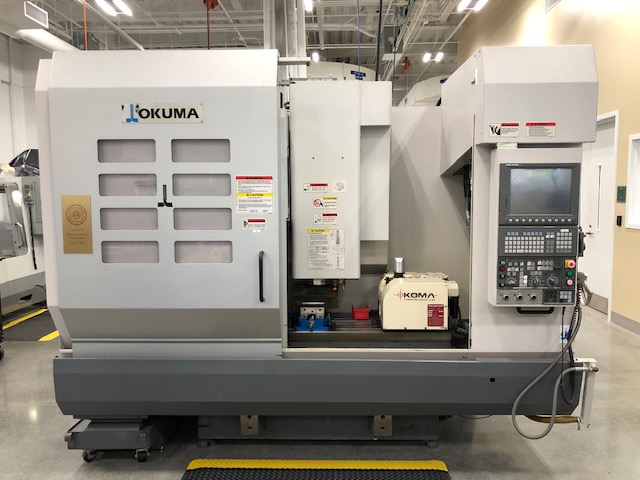

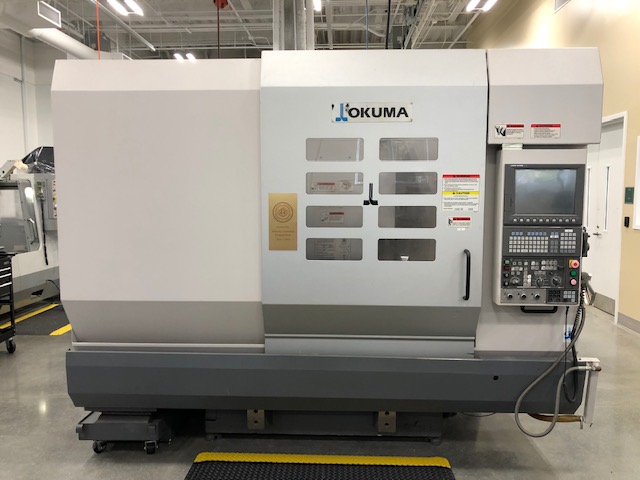

2007 OKUMA MC-V4020 5-AXIS

OSP-P200M, 40.20.18", 13000 RPM, 32 SMTC, Cat 40, 20 HP, 5-Axis, TSC, Chip,
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 40"
  • Y-Axis 20"
  • Z-Axis 17.7"

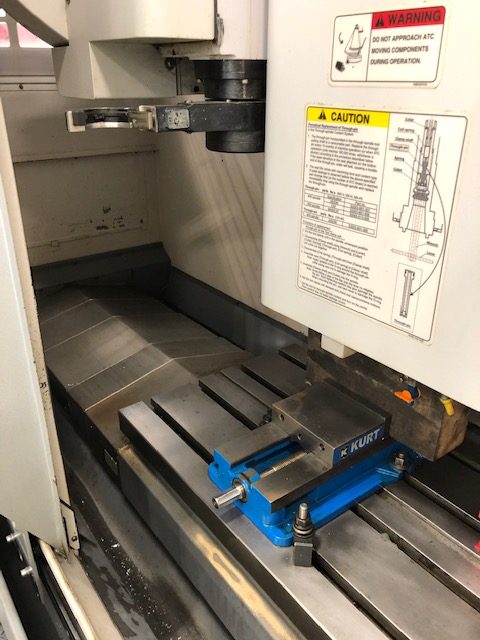

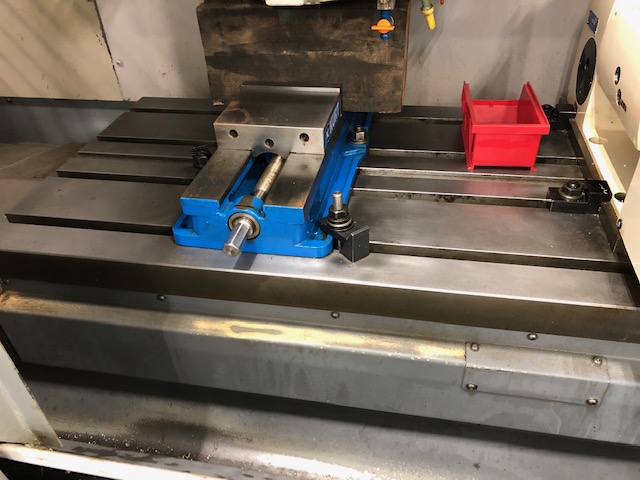

  • Table Size 48" x 20"
  • Spindle Speed 13000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 20 HP
  • Tools 32
  • Table Load Capacity 1500 lbs.
  • Rapid Traverse Rates (X & Y / Z) 1417 / 1181 IPM
  • Max Tool Diameter 3.54" / 4.92"
  • Max Tool Length 15.75"
  • Max Tool Weight 17.6 lbs.
  • Machine Dimensions (L x W x H) 130" x 107.2" x 104.3"
  • Machine Weight 15,432 lbs.
  • Spindle Nose to Table Top 6.3" - 24"
  • Tool Change Time (T - T / C - C) 1.5 / 5.0 Seconds

Product Features

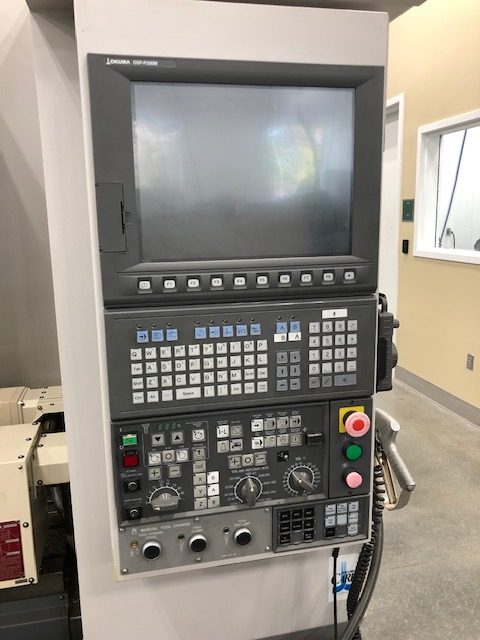

  • OSP-P200M CNC Control
  • 10.4" Color LCD

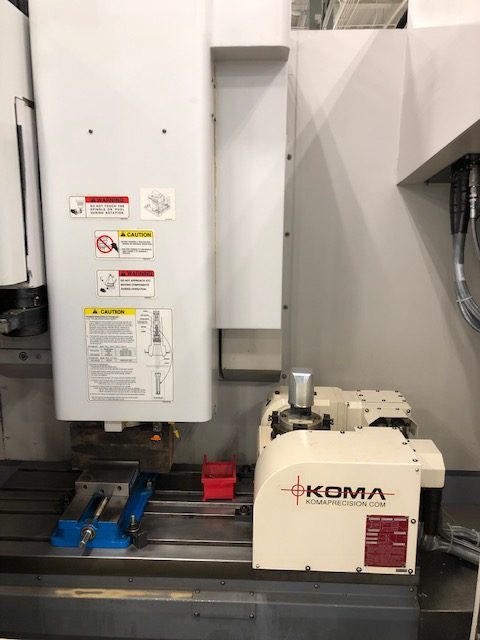

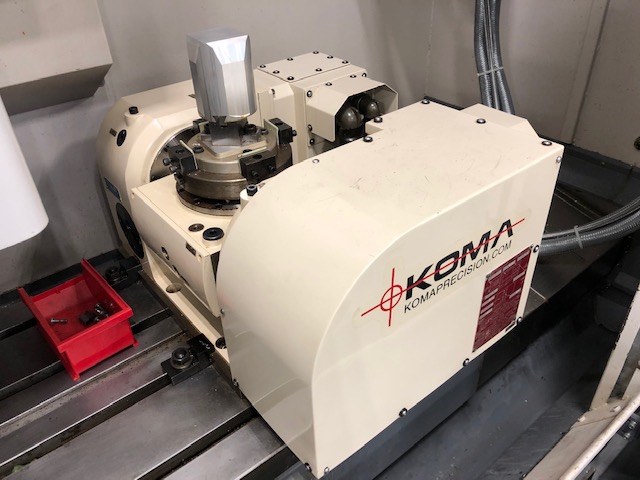

  • Tsudakoma TN-161D Rotary/Tilt 5-Axis Trunnion Table
  • Through Spindle Coolant Interface
  • 13000 RPM Spindle Speed
  • 32 Postion Side Mount Tool Changer

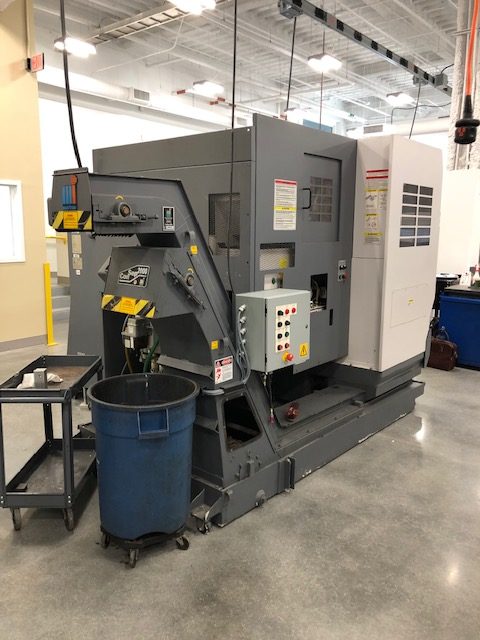

  • Mayfran Consep 2000 Chip Conveyor (Left Rear Exit)
  • Remote Jog Handle
  • Color Graphic Display
  • Animation
  • Helical Cutting
  • One Direction Positioning
  • Skip Function
  • Change Work Coordinates
  • Exact Stop
  • 5-Axis Control
  • 200 Sets of Tool Data
  • Point Calculation
  • Hi-Cut Pro
  • 3D R-Simulation
  • Coordinate Calculation & Conversion
  • Graphic IMAP
  • 200 Sets of Common Variables
  • Tool Life Management
  • Hi-G
  • 100 Sets of Work Coordinates
  • Synchronized Tapping
  • Inch/Metric Switchable
  • System Variables
  • Additional Math Function
  • Manufacture Date July 2007
