< Back to Lathes
Special Item

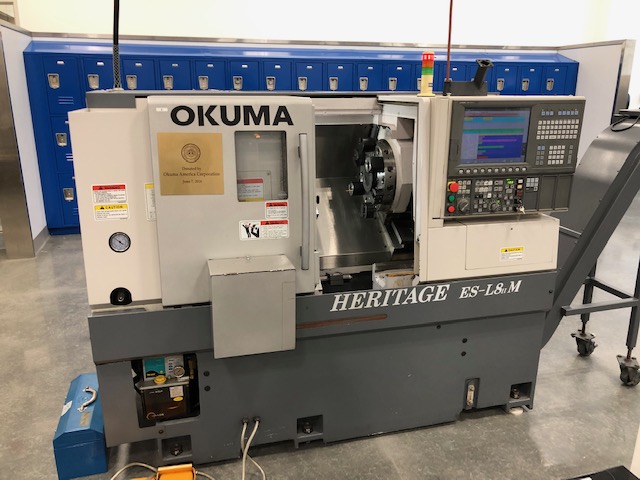

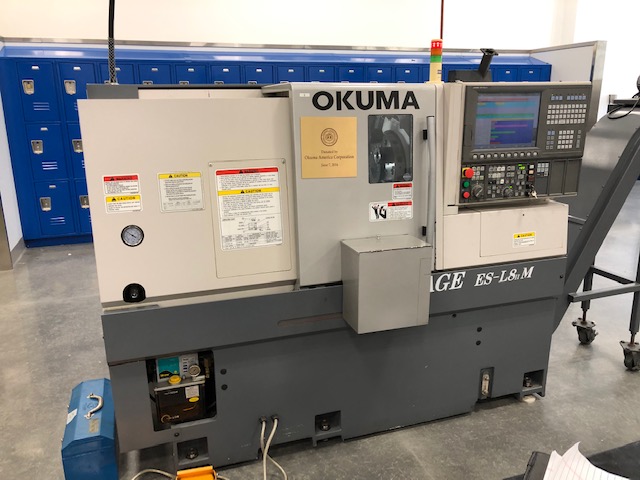

2007 OKUMA ES-L8IIM

OSP-P200ML-R, 2" Bar, 8" Chuck, 4500 RPM,12 Tools, 15 HP, Live Tooling, Chip Conveyor, Parts Catcher, Box Ways
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 8"
  • Max Diameter Bar Capacity 2"
  • Max Swing Over Bed / Carriage 17.7"
  • Max Machining Length 19.68"
  • Spindle Motor 15 HP AC
  • Spindle Speed 4500 RPM
  • Spindle Nose A2-6
  • Spindle Bore 2.56"
  • Tools 12
  • Milling Motor 5 HP
  • Rapid Traverse Rates 591 / 787 IPM
  • X-Axis Travel 6.1"
  • Z-Axis Travel 20.47"
  • C-Axis Index .001 Degrees
  • Machine Dimensions (L x W x H) 120.5" x 66" x 67"
  • Machine Weight 8140 lbs.
  • Max Turning Diameter 10.60"
  • Tailstock Taper MT #5

Product Features

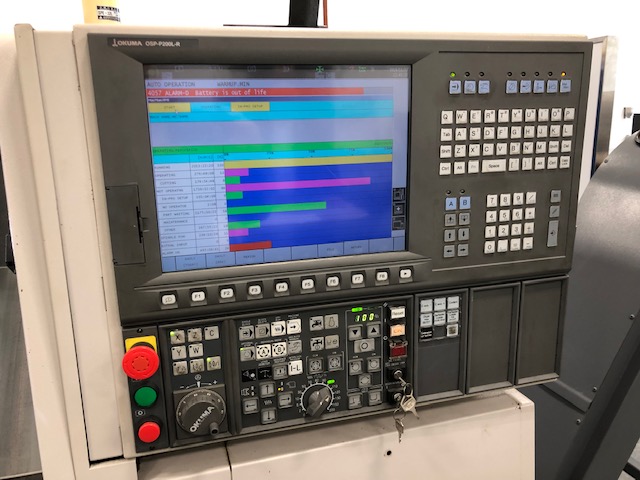

  • OSP-P200ML-R CNC Control
  • 10.4" Color LCD
  • C-Axis Live Tooling Capability
  • 8" Kitagawa B208 Hydraulic Chuck
  • Auto Parts Catcher
  • Touch Setter (Tool Presetter)

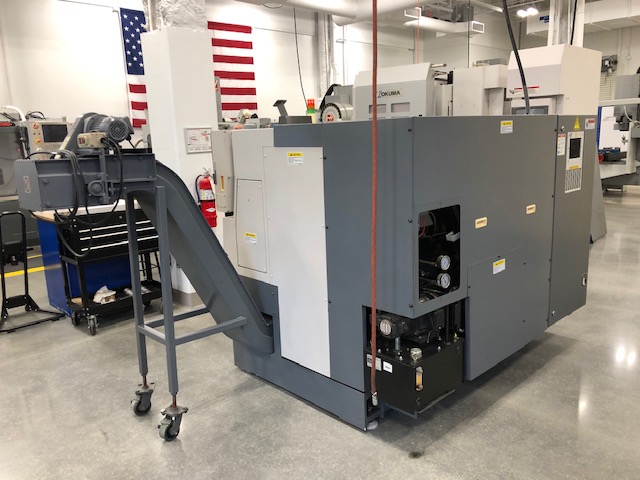

  • Chip Conveyor Hinge Type (Side Exit)
  • Hydraulic Tailstock Quill
  • Three Color Tower Light
  • Hi-G Control

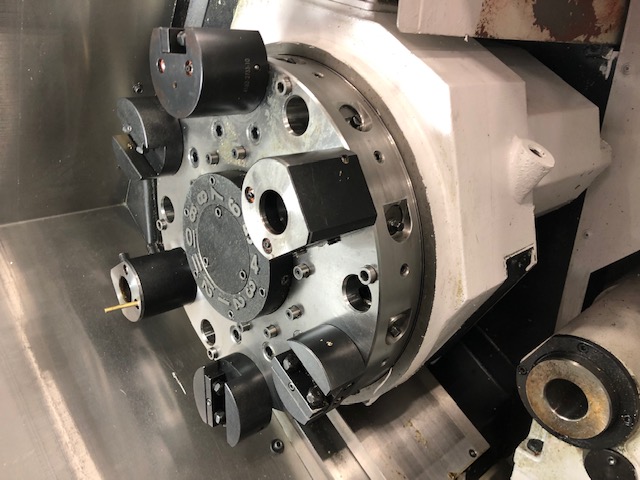

  • Servo Driven Turret
  • Plane Conversion
  • Profile Generation
  • Synchronized Tapping
  • NC Torque Limiter
  • Lap 4
  • Tool Nose Radius 2B
  • User Task 2
  • Expanded Auto Chamfering
  • 3D Animation
  • Tool Life Management
  • Tool Wear Compensation
  • Inch/Metric Switchable
  • Cycle Time Calculation
  • NC Work Counter
  • NC Work Monitor
  • Cycle Time Check
  • Load Monitor
  • Mac Man
  • DNC-T1
  • Electronic Spindle Orientation
  • (3) Boring Bar Holders
  • (3) Turning Holders
  • (1) Facing Holder
  • 2011 Running Time
  • 276 Operating Time
  • 174 Cutting Time
  • 1736 Not Operating Time
  • 234 Spindle Run Time
