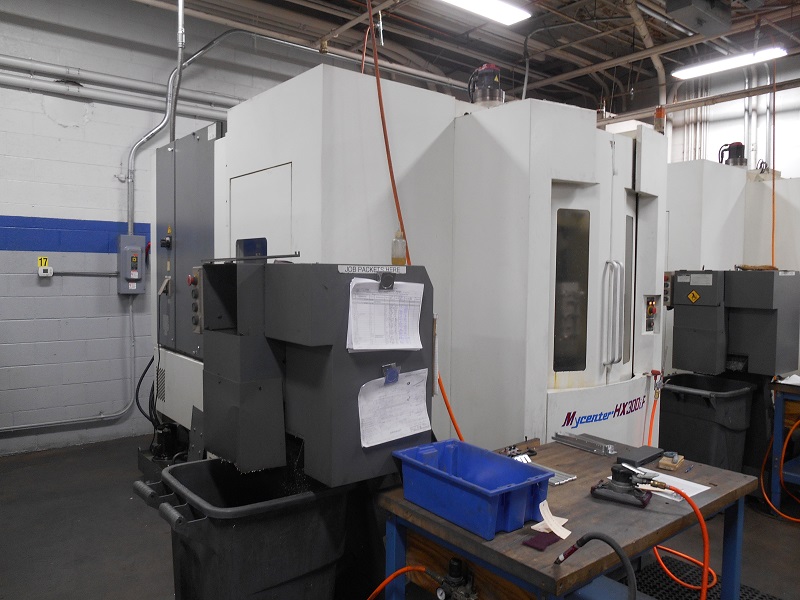

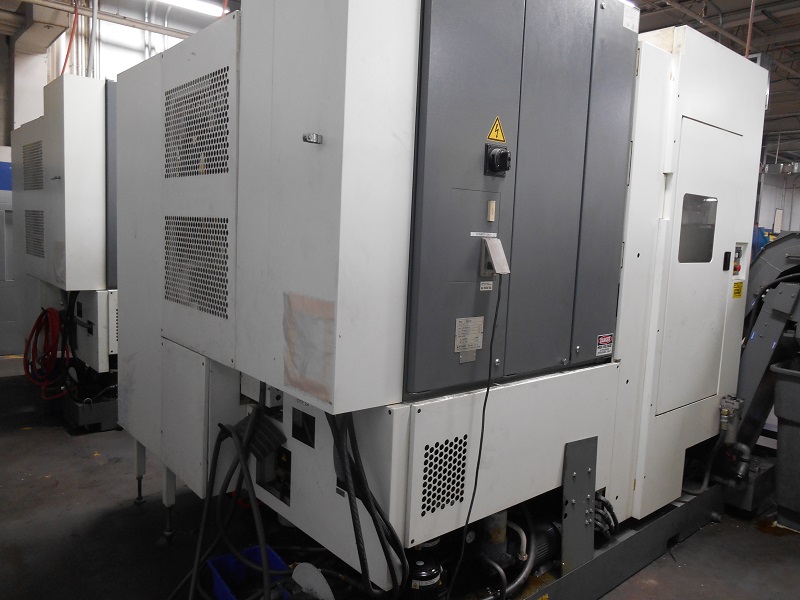

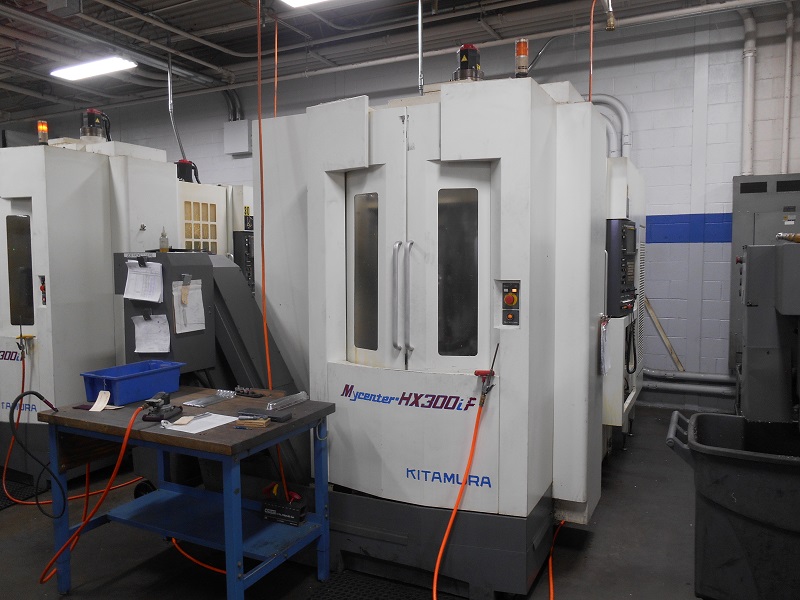

2007 KITAMURA MYCENTER HX-300iF (#2)

Fanuc 16i-MB, 11.8" Plts, 20.20.19", Fourth Axis, 15000 RPM, 40 Tools, Cat 40 Big Plus, TSC, Chip
Talk to a representative today!
(803) 548-8000

Product Details

  • Pallet Load Capacity 550 lbs.
  • Pallet Size 11.8" (2)
  • X-Axis 20.1"
  • Y-Axis 20.1"
  • Z-Axis 19.3"
  • Pallet Index .001 Degrees
  • Spindle Speed 40 - 15,000
  • Spindle Taper Cat 40 Big Plus
  • Spindle Center to Table Top 3.9" - 23.2"
  • Spindle Nose to Table Center 1.6" - 21.7"
  • Tools 40
  • Rapid Traverse Rates 2362 IPM
  • Tool Change Time (T - T / C - C) 1.7 / 5.0 Seconds
  • Max Tool Diameter 3.74" / 5.9"
  • Max Tool Length 11.8"
  • Max Tool Weight 22 lbs.
  • Machine Weight 21,000
  • Main Motor 18 HP AC

Product Features

  • FANUC 16i-MB CNC CONTROL
  • 10.4" Color LCD
  • PC/MCIA Interface
  • Coolant Thru Spindle Interface
  • Fourth Axis Rotary Table
  • 15,000 RPM Spindle Speed
  • Big Plus Cat 40 Spindle
  • Rigid Tapping
  • Data Server
  • A1 Nano High Precision Contour Control
  • 500 Block Look Ahead
  • Risc 64-Bit Processor with Nurbs Interpolation
  • Spindle Warmup Timer
  • Remote Manual Pulse Generator
  • Three Color Tower Light
  • Coordinate System Rotation
  • Tool Offset Memory C
  • Expanded Work Offsets
  • Expanded Macros
  • Shower Coolant
  • Spindle Chiller Unit
  • Chip Conveyor Double Decker Style with Filtration (Left Front Exit)
  • Heavy Duty Box Way Construction
  • 42,792 Power On Time
  • 26,699 Cutting Time
