2007 HURCO VMX-42

Ultimax, 42.24.24", 10000 RPM, Cat 40, 24 HP, 24 SMTC, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 42"
  • Y-Axis 24"
  • Z-Axis 24"
  • Table Size 50" x 24"
  • Spindle Speed 10,000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 24 HP
  • Tools 24
  • Table Load Capacity 3000 lbs.
  • Rapid Traverse Rates 787 IPM
  • Max Tool Diameter 4.7"
  • Max Tool Length 11.8"
  • Max Tool Weight 15 lbs.
  • Machine Dimensions (L x W x H) 116.2" x 90.6" x 100"
  • Machine Weight 14,525 lbs.
  • Spindle Nose to Table Top 6" - 30"
  • Spindle Torque 210 ft. lbs.
  • Tool Change Time (T - T / C - C) 3 / 7 Seconds

Product Features

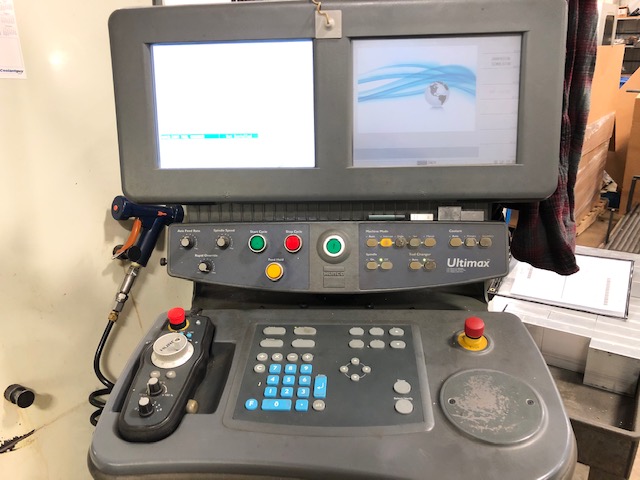

  • Ultimax CNC Control
  • 12" Dual Color CRTs
  • 10,000 RPM Spindle Speed
  • 24 Position Side Mount Tool Changer
  • NC Production Package
  • Industry Standard NC
  • Select Surface Finish Quality
  • Rigid Tapping
  • Tool Change Optimization
  • Remote Jog Handle
  • Two Color Light
  • Chip Conveyor (Left Side Exit)
