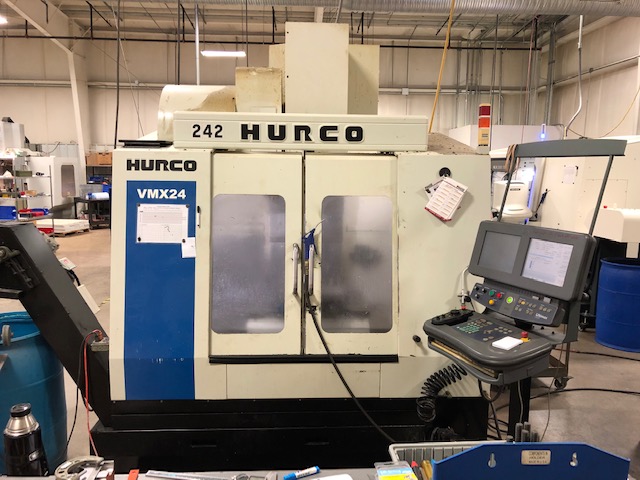

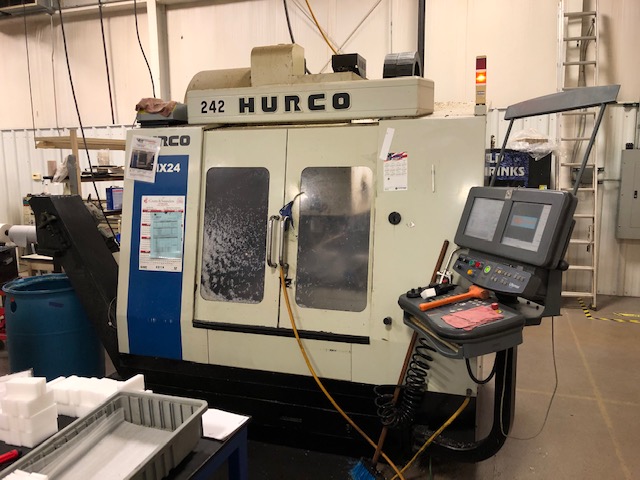

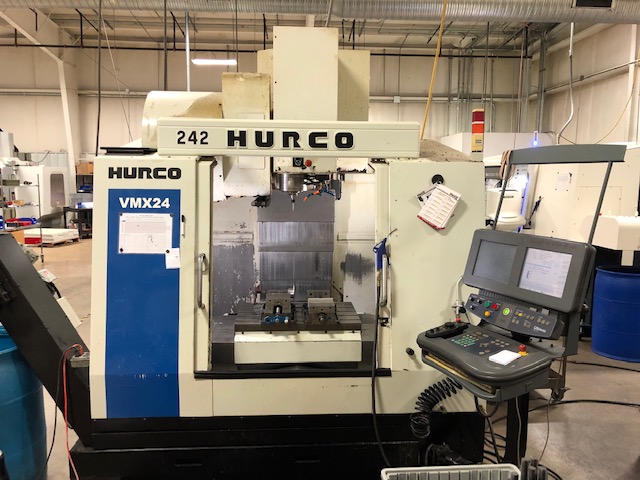

2007 HURCO VMX-24

WinMax, 24.20.24", 12000 RPM, Cat 40, 12 HP, 24 SMTC, Rigid Tapping, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 24"
  • Y-Axis 20"
  • Z-Axis 24"

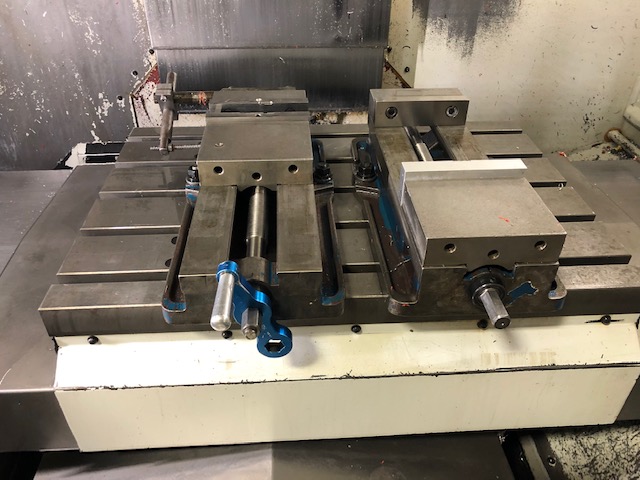

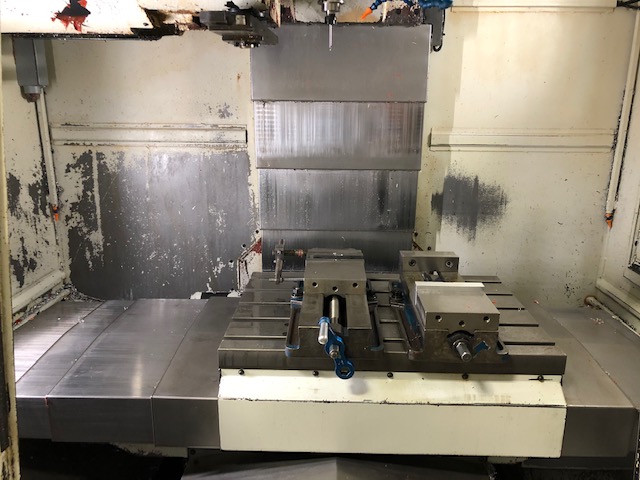

  • Table Size 30" x 20"
  • Spindle Speed 12,000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 12 / 10 HP
  • Tools 24
  • Table Load Capacity 3000 lbs.
  • Rapid Traverse Rates (X & Y / Z) 1378 / 1181 IPM
  • Max Tool Diameter 3.2" / 4.7"
  • Max Tool Length 11.8"
  • Max Tool Weight 15 lbs.
  • Machine Dimensions (L x W x H) 86" x 91" x 106"
  • Machine Weight 9260 lbs.
  • Spindle Nose to Table Top 6" - 30"
  • Spindle Torque 85 ft. lbs.
  • Tool Change Time (T - T / C - C) 3 / 7 Seconds

Product Features

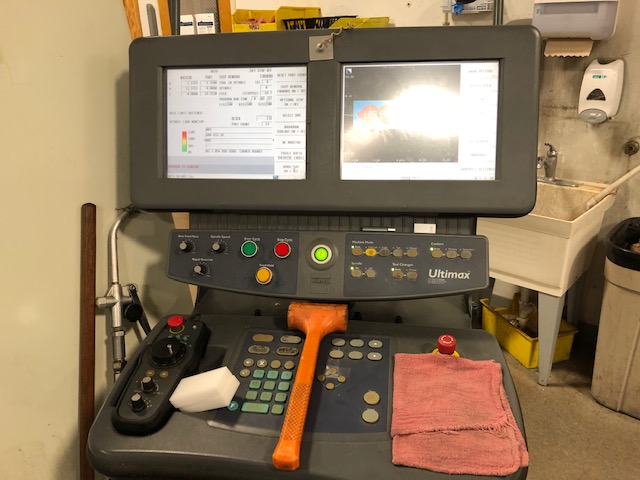

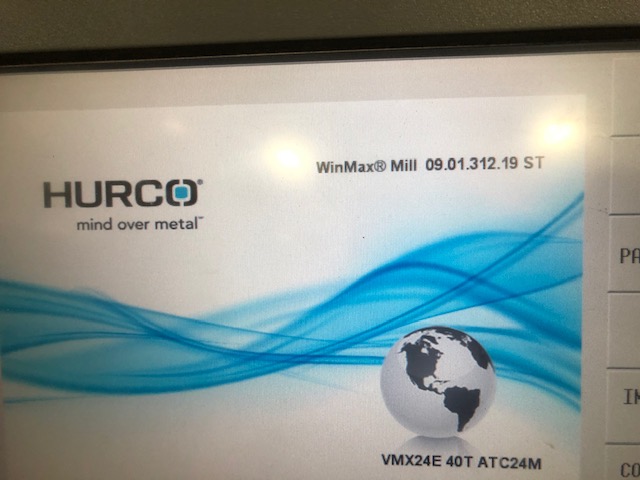

  • WinMax CNC Control (Inside the Ultimax Console)
  • 12" Color Dual Screens
  • 10,000 RPM Spindle
  • 24 Position Side Mount Tool Changer
  • NC Conversational Merge
  • NC Production Package
  • Industry Standard NC
  • Select Surface Finish Quality
  • Rigid Tapping
  • Tool Change Optimization
  • Remote Jog Handle
  • Two Color Light

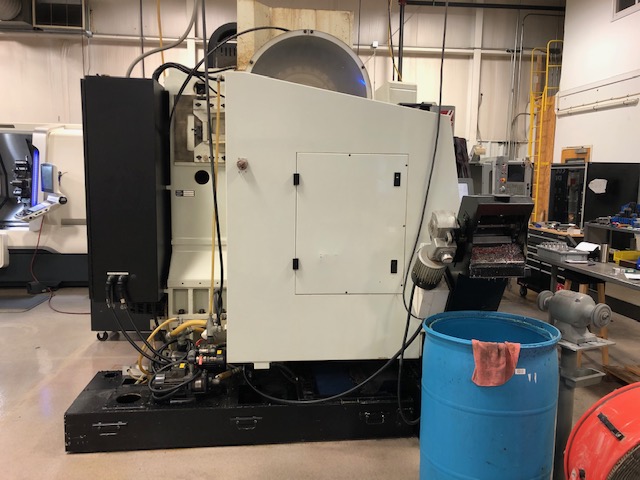

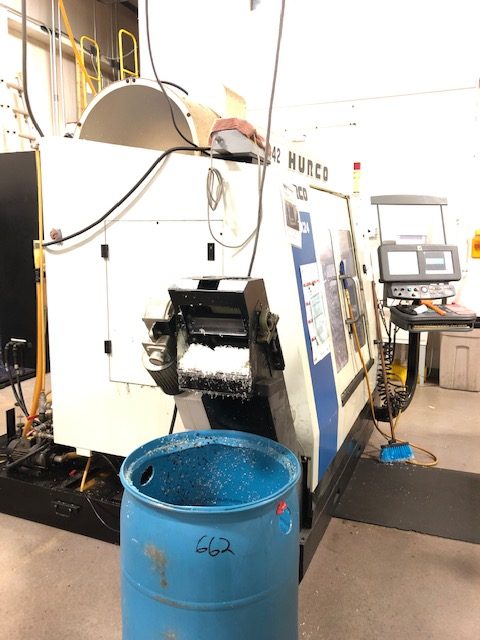

  • Chip Conveyor (Left Side Exit)

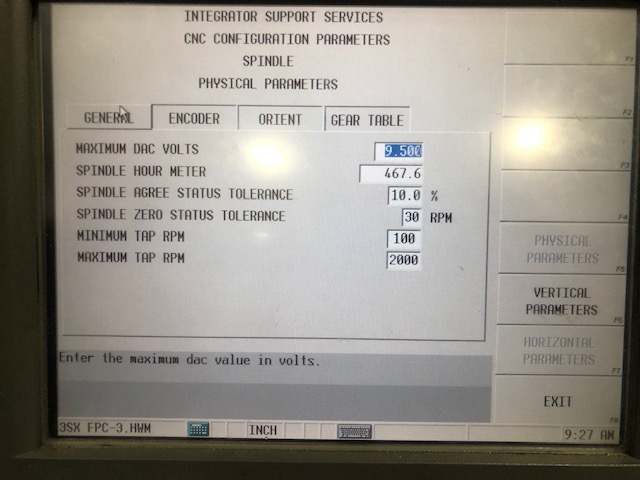

  • 467 Spindle Hours
