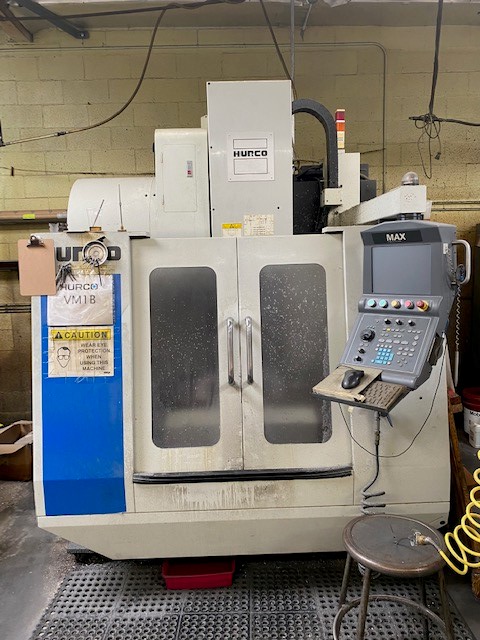

2007 HURCO VM-1

Winmax, 26.14.18", 8000 RPM, 16 Tools, 15 HP, Cat 40, SMTC
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 26"
  • Y-Axis 14"
  • Z-Axis 18"
  • Table Size 30" x 14"
  • Spindle Speed 8000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 15 / 10 HP
  • Tools 16
  • Table Load Capacity 750 lbs.
  • Rapid Traverse Rates 750 IPM
  • Max Tool Diameter 3.5" / 5"
  • Max Tool Length 9.8"
  • Max Tool Weight 15.5 lbs.
  • Machine Dimensions (L x W x H) 97.6" x 74.8" x 95.5"
  • Machine Weight 6825 lbs.
  • Spindle Nose to Table Top 4" - 22"
  • Tool Change Time (T-T/C-C) 3 / 8 Seconds

Product Features

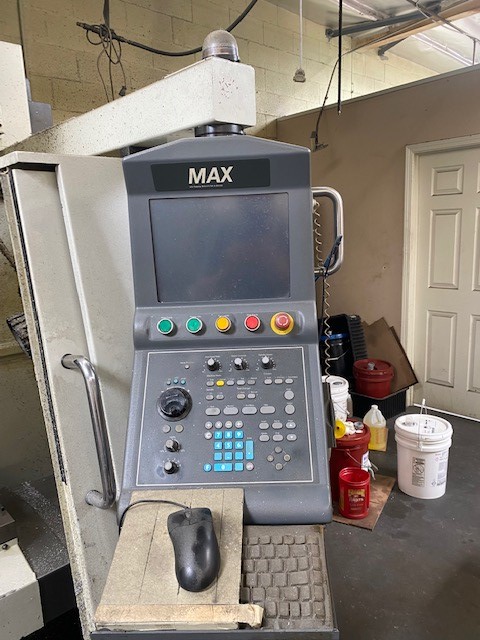

  • HURCO WINMAX CNC CONTROL
  • 12" Color LCD
  • Touch Screen Graphics
  • 3.5" Floppy Disc Drive
  • Alpha Numeric Keyuboard
  • 16 Position Side Mount Tool Changer
  • Rigid Tapping
  • 2 Color Tower Light
  • Flood Coolant System
  • Full Enclosure
