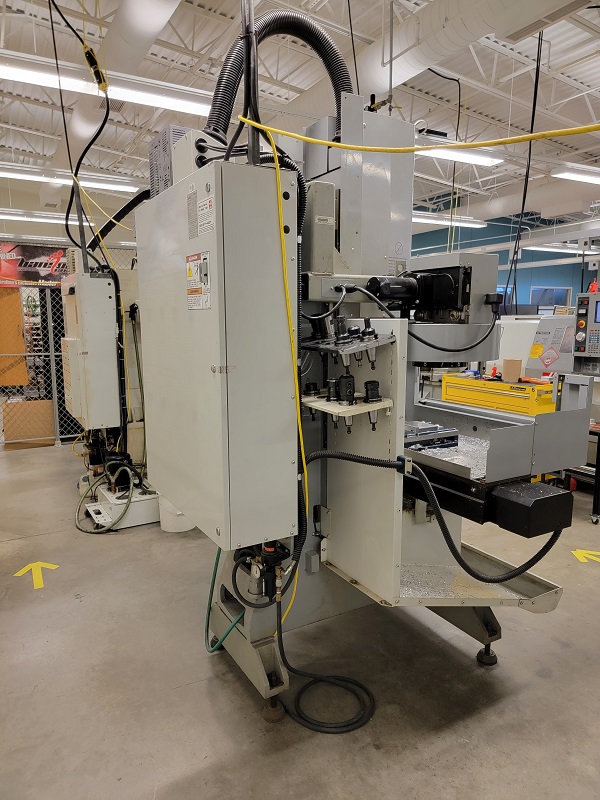

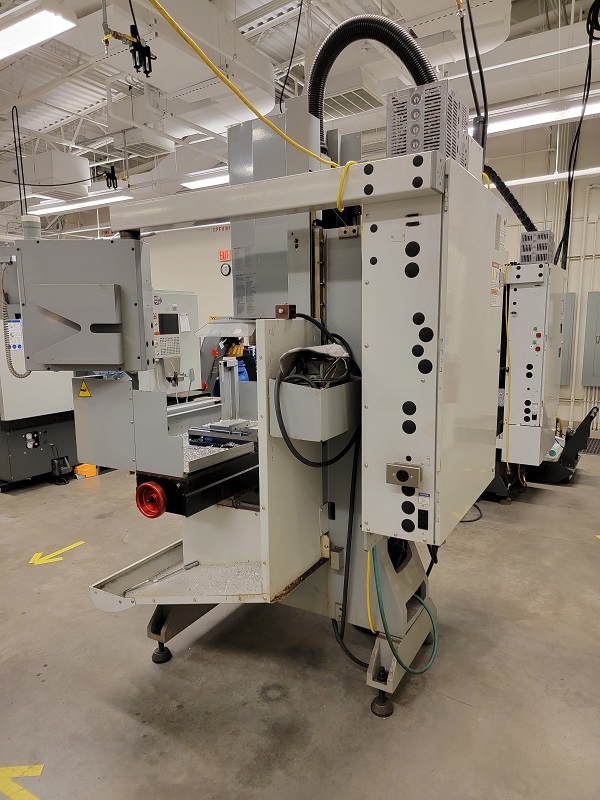

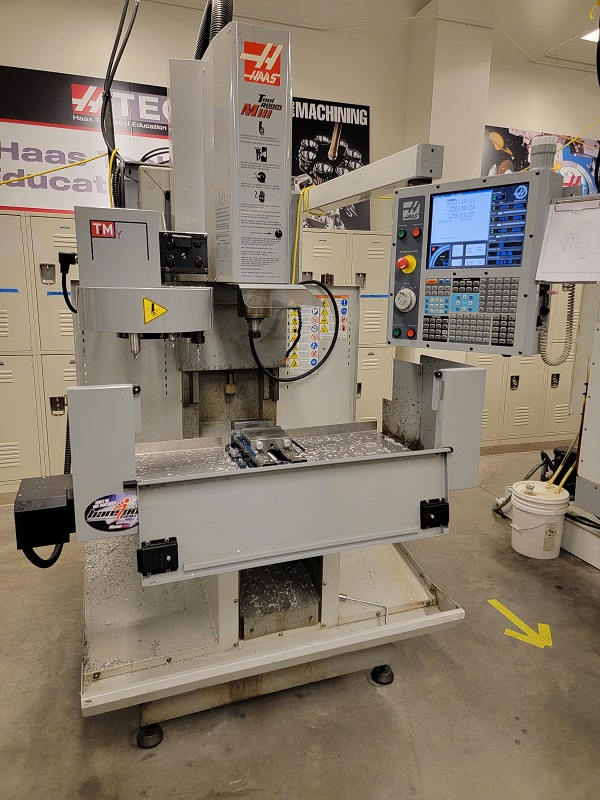

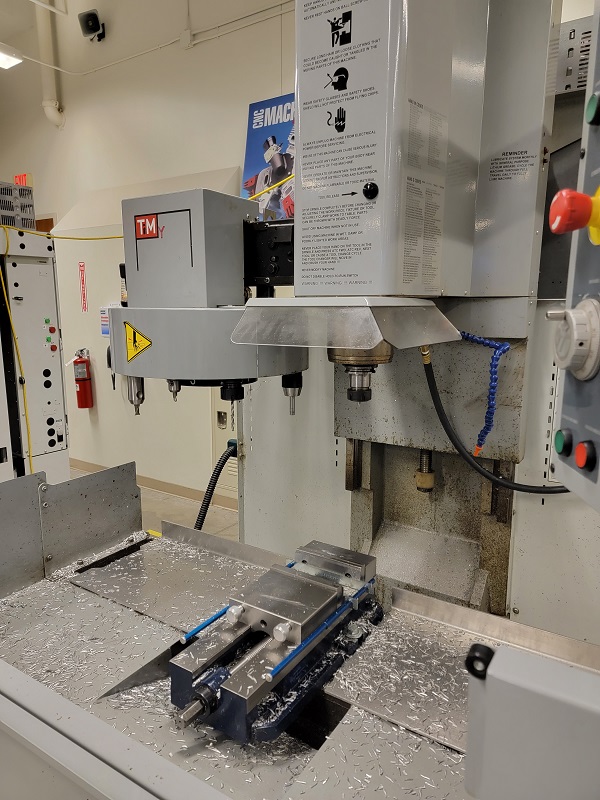

2007 HAAS TM-1

30.12.16", 4000 RPM, Cat 40, 10 Tools, Coolant System, Handwheels, VQC, IPS, From a Tech School
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 30"
  • Y-Axis 12"
  • Z-Axis 16"
  • Table Size 47.75" x 10.5"
  • Spindle Speed 4000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 7.5 HP
  • Tools 10
  • Table Load Capacity 1000 lbs.
  • Rapid Traverse Rates 200 IPM
  • Max Tool Diameter 3.5"
  • Max Tool Length 12"
  • Max Tool Weight 12 lbs.
  • Machine Dimensions (L x W x H) 85" x 64" x 109"
  • Machine Weight 3300 lbs.
  • Spindle Nose to Table Top 4" - 20"
  • Spindle Torque 33 ft. lbs.
  • Tool Change Time (T - T / C - C) 5.7 / 6.5 Seconds

Product Features

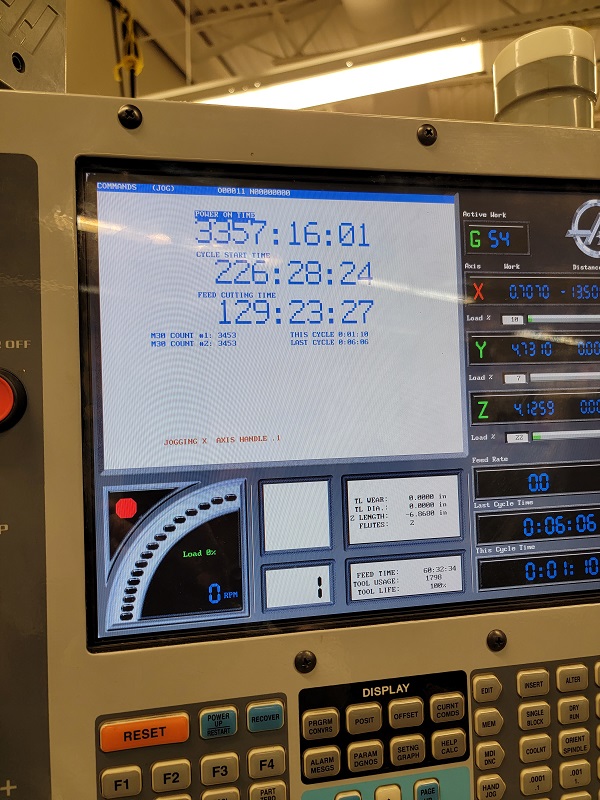

  • HAAS CNC Control
  • 12" Color CRT
  • 10 Tool Magazine
  • Coolant System
  • Floppy Disc Drive
  • Table Chip Guards
  • Visual Quick Code
  • Intuitive Programming System
  • Manufacture Date July 2007
  • 3062 Servo Time
  • 288 In Motion Time
  • 322 Spindle Time
  • Came from a Technical School
