< Back to Lathes

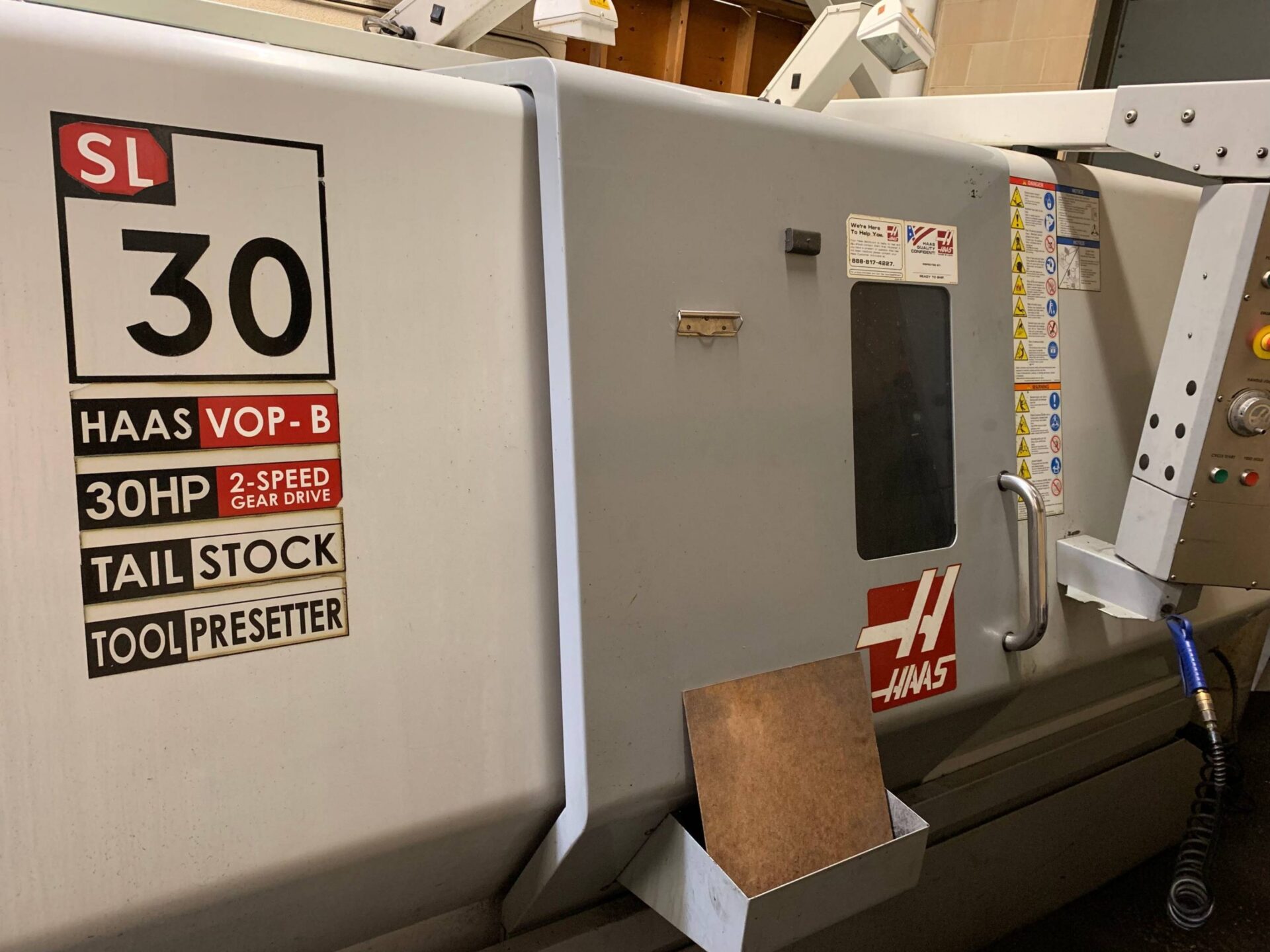

2007 HAAS SL-30T

3" Bar, 10" Chuck, 3400 RPM, 12 Tools, 30 HP, Tailstock, Tool Presetter, Gearbox, Barfeed, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 10"
  • Max Diameter Bar Capacity 3"
  • Max Swing Over Bed / Carriage 30" / 14.5"
  • Max Machining Length 32"
  • Spindle Motor 30 HP
  • Spindle Speed 20 - 3400 RPM
  • Spindle Nose A2-6
  • Spindle Bore 3.5"
  • Tools 12
  • Rapid Traverse Rates (X & Z) 710 IPM
  • X-Axis Travel 11.3"
  • Z-Axis Travel 34"
  • Machine Dimensions (L x W x H) 162" x 77" x 74"
  • Machine Weight 16,000 lbs.
  • Distance Between Centers 39"
  • Max Turning Diameter 17"
  • Spindle Torque 300 ft. lbs.
  • Tailstock Taper MT#4

Product Features

  • HAAS CNC Control
  • 10" Color CRT

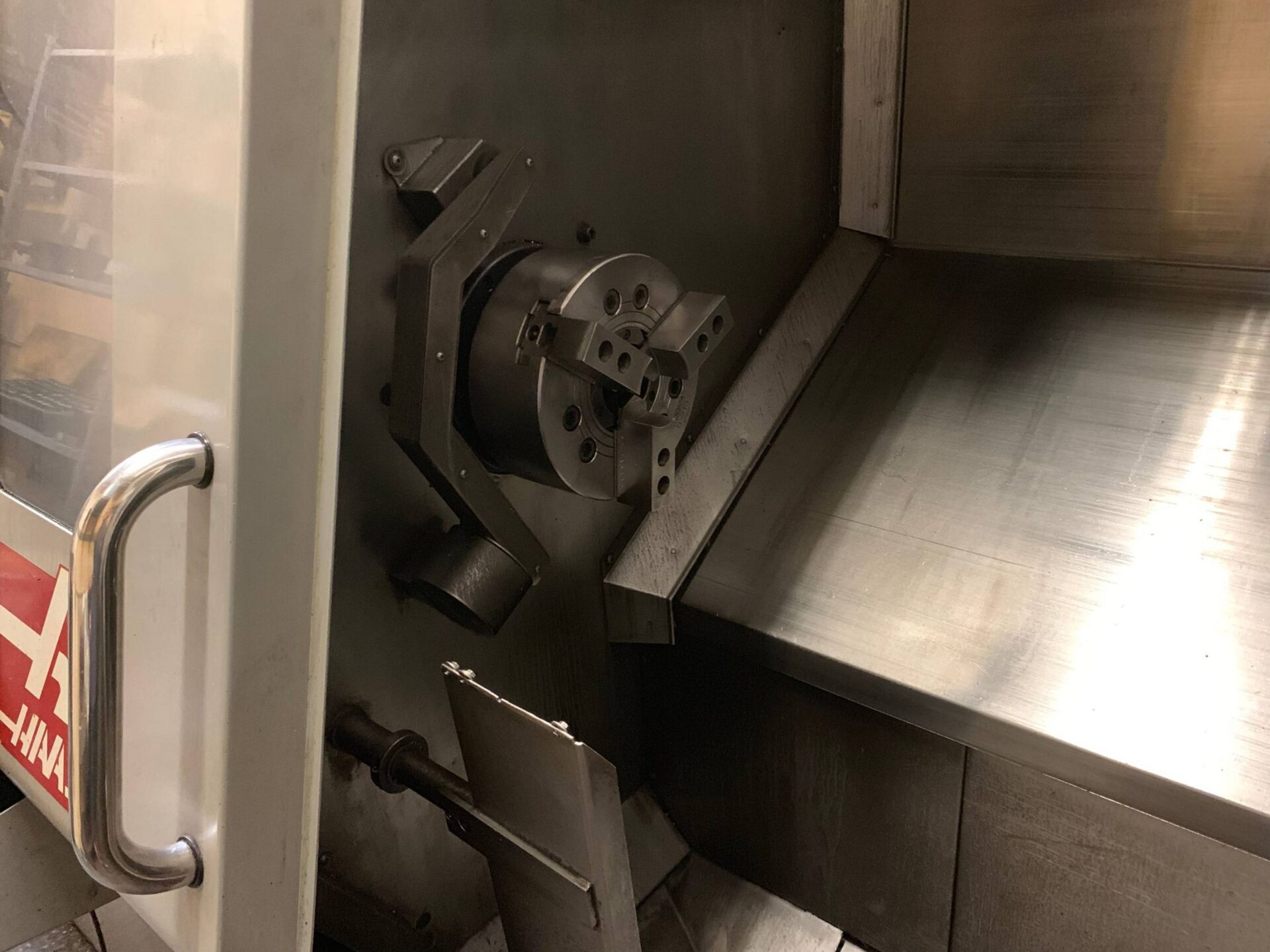

  • 10" Hydraulic Chuck

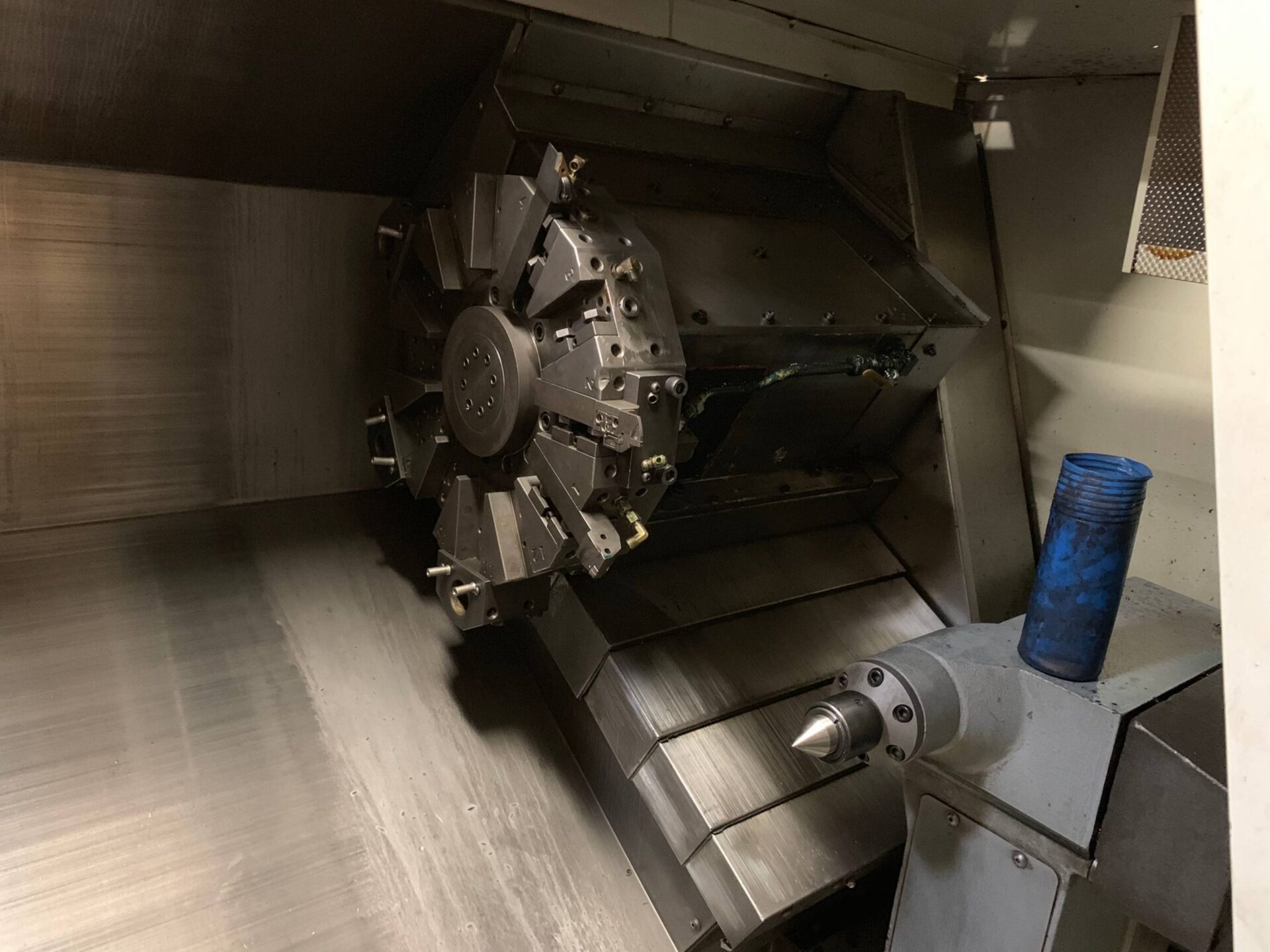

  • Fully Programmable Hydraulic Tailstock
  • 2-Speed High-Torque Gearbox
  • Tool Presetter

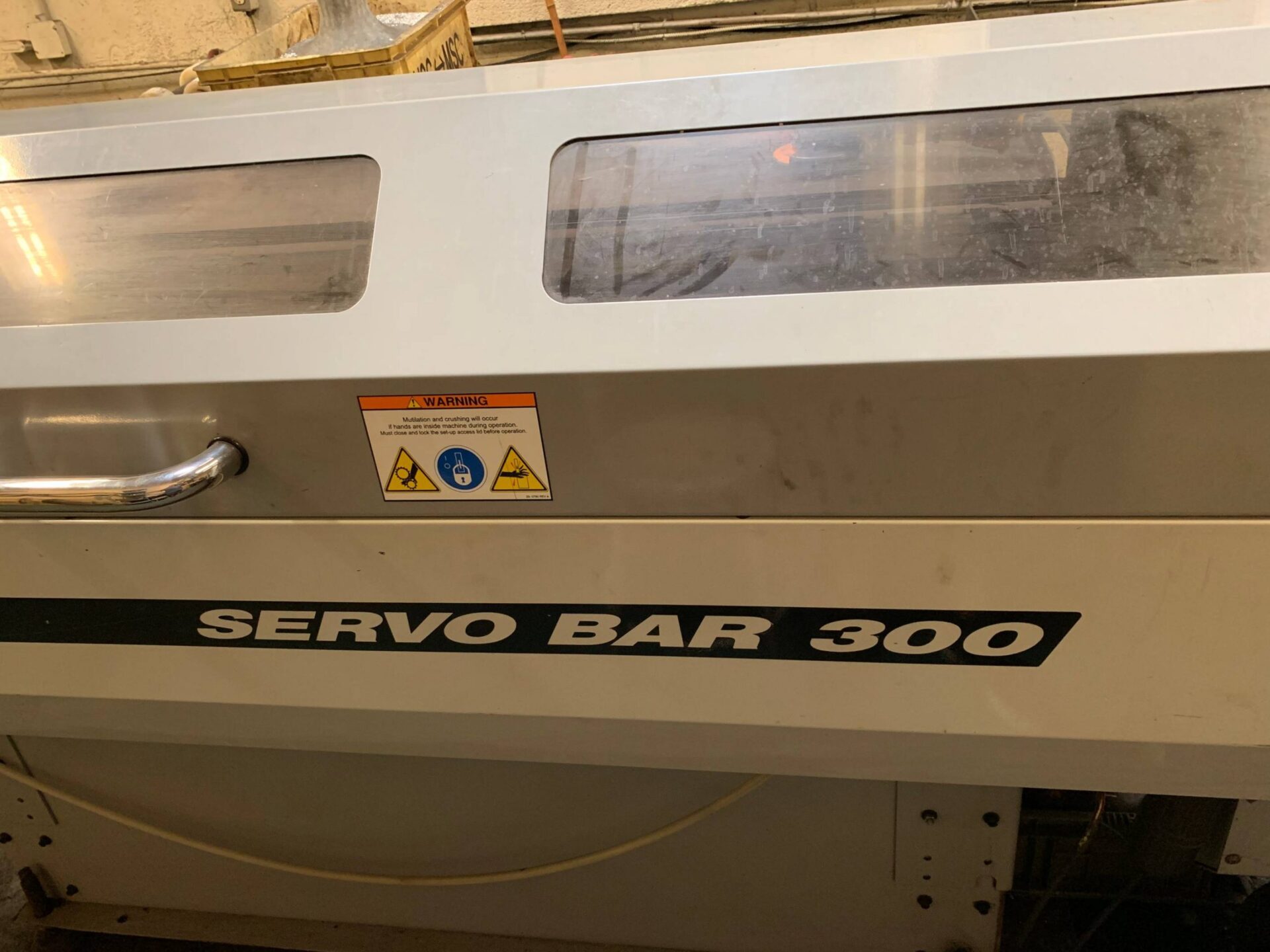

  • Haas Brushless Servo Bar 300 Magazine Barfeed
  • 2 Push Rods
  • Universal spindle liner (.75" - 3")
  • High Pressure Coolant (300 PSI)
  • Auxiliary Coolant Filtration System
  • Chip Conveyor (Side Exit)
  • Lathe Parts Hoist Mount and Swivel Boom
