< Back to Lathes
Special Item

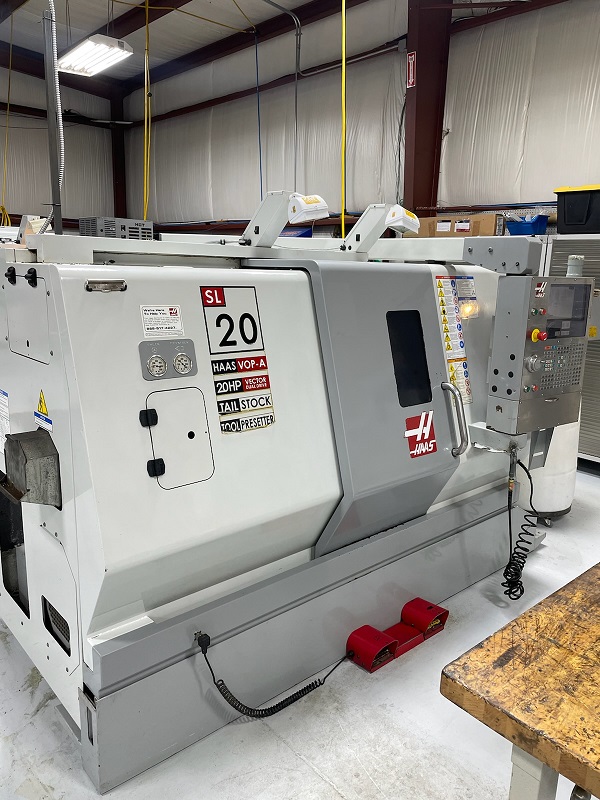

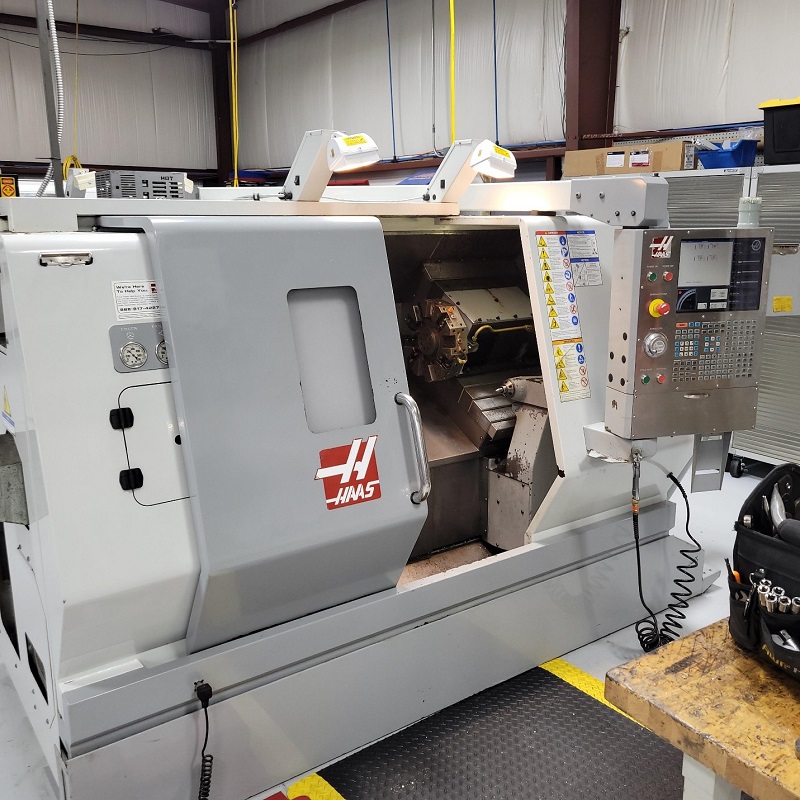

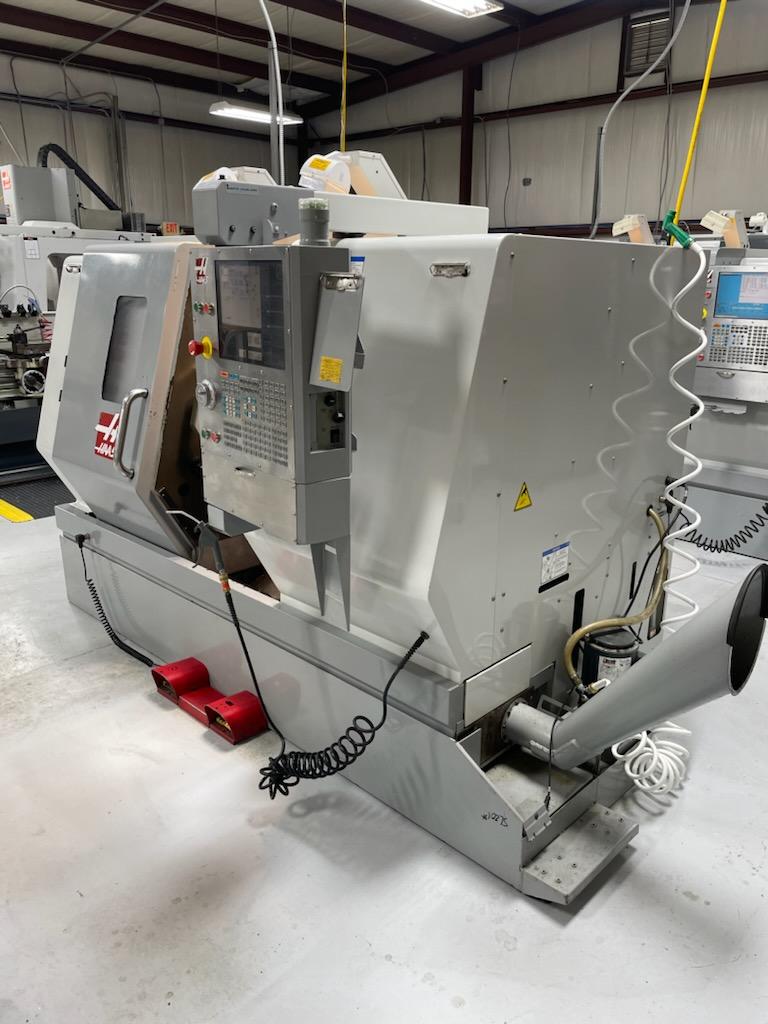

2007 HAAS SL-20T

2" Bar, 8" Chuck, 10 Tools, 20 HP, 3400 RPM, Tailstock, Tool Presetter, Bolt-On Turret, Chip Auger
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 8"
  • Max Diameter Bar Capacity 2"
  • Max Swing Over Bed / Carriage 20" / 9.5"
  • Max Machining Length 20"
  • Spindle Motor 20 HP
  • Spindle Speed 3400 RPM
  • Spindle Nose A2-6
  • Spindle Bore 3"
  • Tools 10
  • Rapid Traverse Rates 710 IPM
  • X-Axis Travel 8.45"
  • Z-Axis Travel 20"
  • Machine Dimensions (L x W x H) 129" x 88" x 72"
  • Machine Weight 9000 lbs.
  • Distance Between Centers 24"
  • Max Turning Diameter 10.3"
  • Spindle Torque 154 ft. lbs.
  • Tailstock Taper MT#4

Product Features

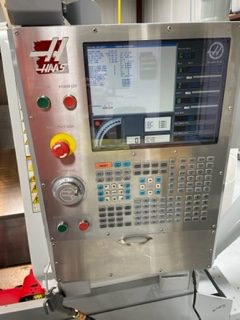

  • HAAS 32-BIT CNC CONTROL
  • 12" Color LCD
  • 8" Kitagawa B-208 Hydraulic Chuck
  • USB Port
  • Fully Programmable Hydraulic Tailstock
  • Tool Presetter

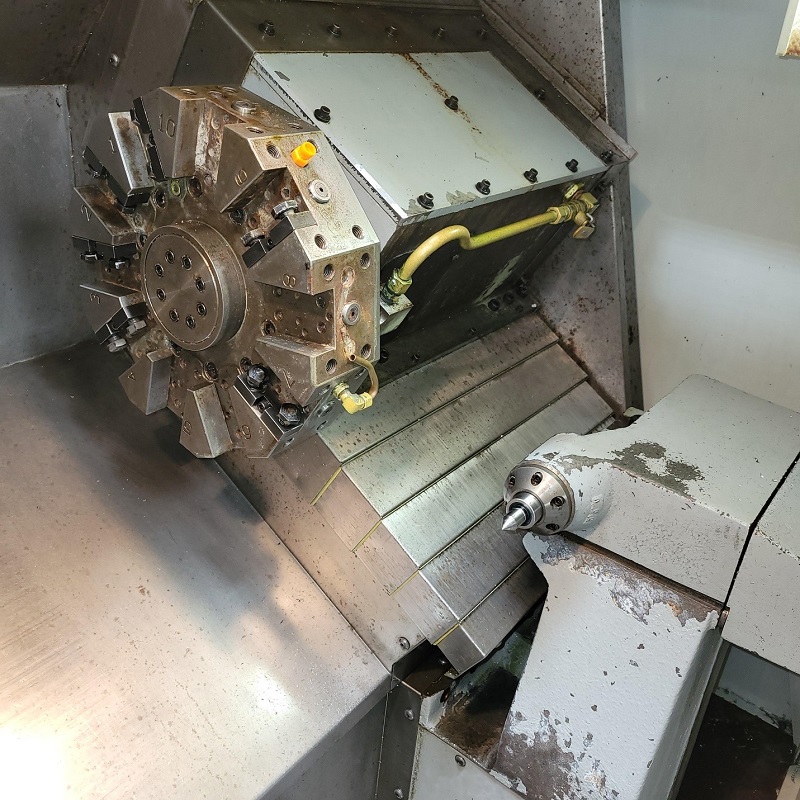

  • Bolt-On Turret
  • Chip Auger
  • High Intensity Lighting
  • Green Work Indicator Light
  • (1) Boring Bar Holder
  • (6) OD Wedge Blocks
  • Manufacture Date March 2007
  • 3240 Servo On Time
  • 540 In Motion Time
  • 521 Spindle Time
