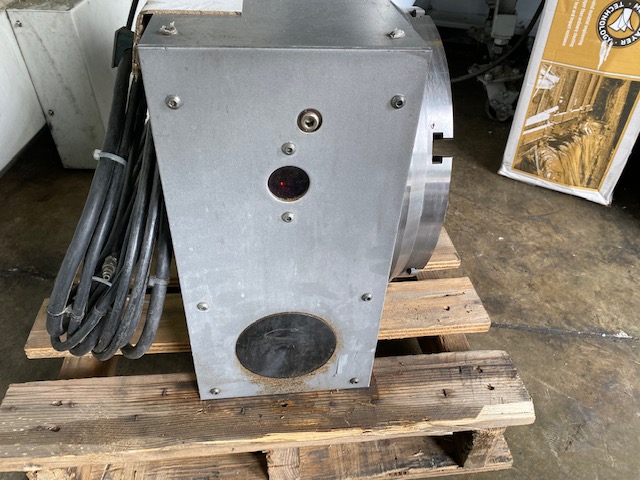

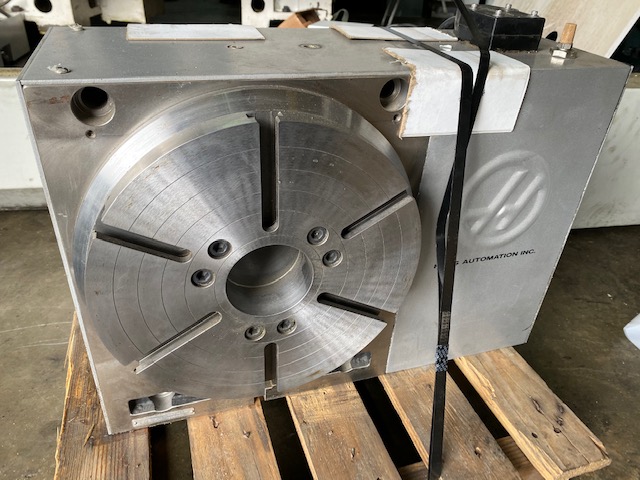

2007 HAAS HRT-310B FOURTH AXIS ROTARY TABLE

12" Fourth Axis Rotary Table
Talk to a representative today!
(803) 548-8000

Product Details

  • Accuracy +/- 15
  • Backlash 30 Arc Sec.
  • Brake Toque at 100 psi 500 ft. lbs.
  • Center Height 9.000 +/- 0.001
  • Duty Cycle speed (full / low) 50% / 100%
  • Gear Ratio (worm & gear) 72
  • Max Air Pressure 120 PSI
  • Max Rotation 0.001
  • Operating Temp 100 Degrees F
  • Power Required 115 VAC +/- 15% @ 15 amps
  • Repeatability 10 Arc Sec.
  • Replaced with New Cables Motors
  • Runout Max 0.001"
  • Speeds 0.001 - 50 Degrees / Second
  • Table 435 lbs.
  • Torque 200 ft. lbs.
  • Worm Gear Diameter 9.4"

Product Features

  • Serial Number 315762
  • Sigma 1 Motor
