2007 DOOSAN LYNX 220LC

Fanuc 0i-TC, 2.63" Bar, 8.25" Chuck, 12 Tools, 20 HP, 4000 RPM,  APC, Tailstock, Tool Presetter, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 8.25"
  • Max Diameter Bar Capacity 2.63"
  • Max Swing Over Bed / Carriage 20.1" / 11.4"
  • Turning Diameter(Max / Std) 12.6" / 8.3"
  • Spindle Motor 20 HP
  • Spindle Speed 4000 RPM
  • Spindle Nose A2-6
  • Spindle Bore 3"
  • Tools 12
  • Rapid Traverse Rates 1400 IPM
  • X-Axis Travel 6.9"
  • Z-Axis Travel 21.7"
  • Turret Index (Single Step) 0.15 Seconds
  • Machine Dimensions (L x W x H) 101" x 63" x 65"
  • Machine Weight 7700 lbs.
  • Max Turning Length 20.7"
  • Tailstock Taper MT#4

Product Features

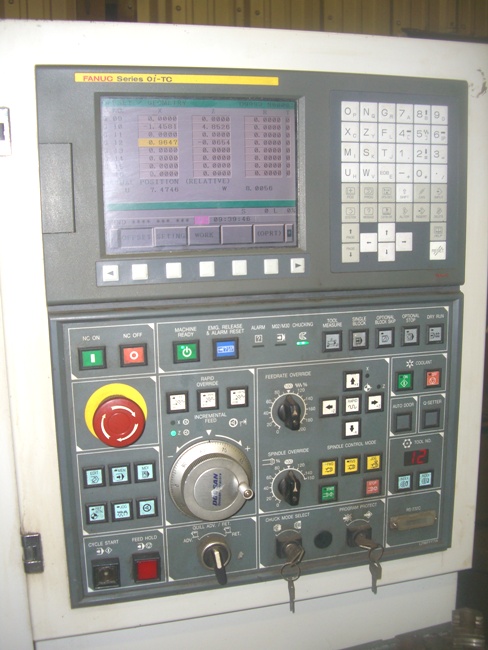

  • FANUC 0i-TC SERIES CNC CONTROL
  • 10.4" Color LCD

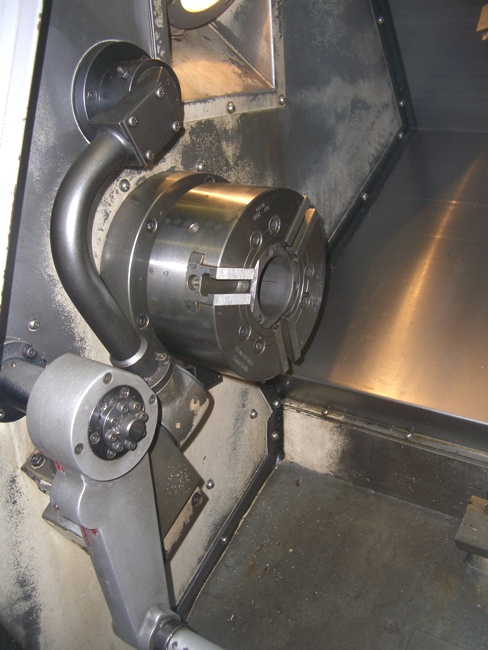

  • 8.25" Samchully HH-208 Hydraulic 3-Jaw Chuck
  • Auto Parts Catcher

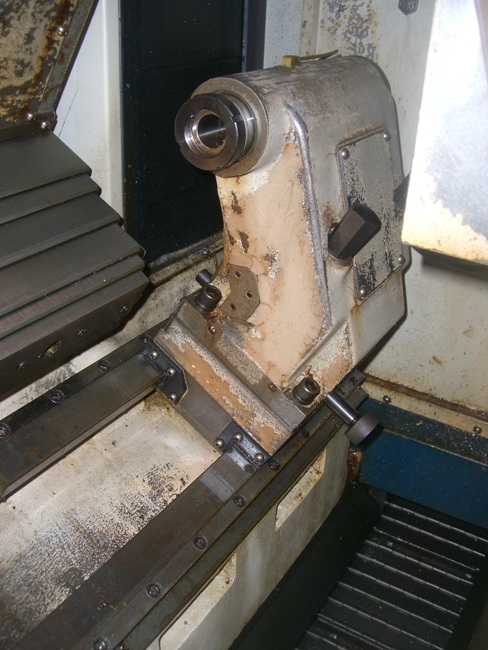

  • Tailstock
  • Tool Presetter
  • Turbo Chip Conveyor (Side Exit)
  • Mfg Date January 2007
