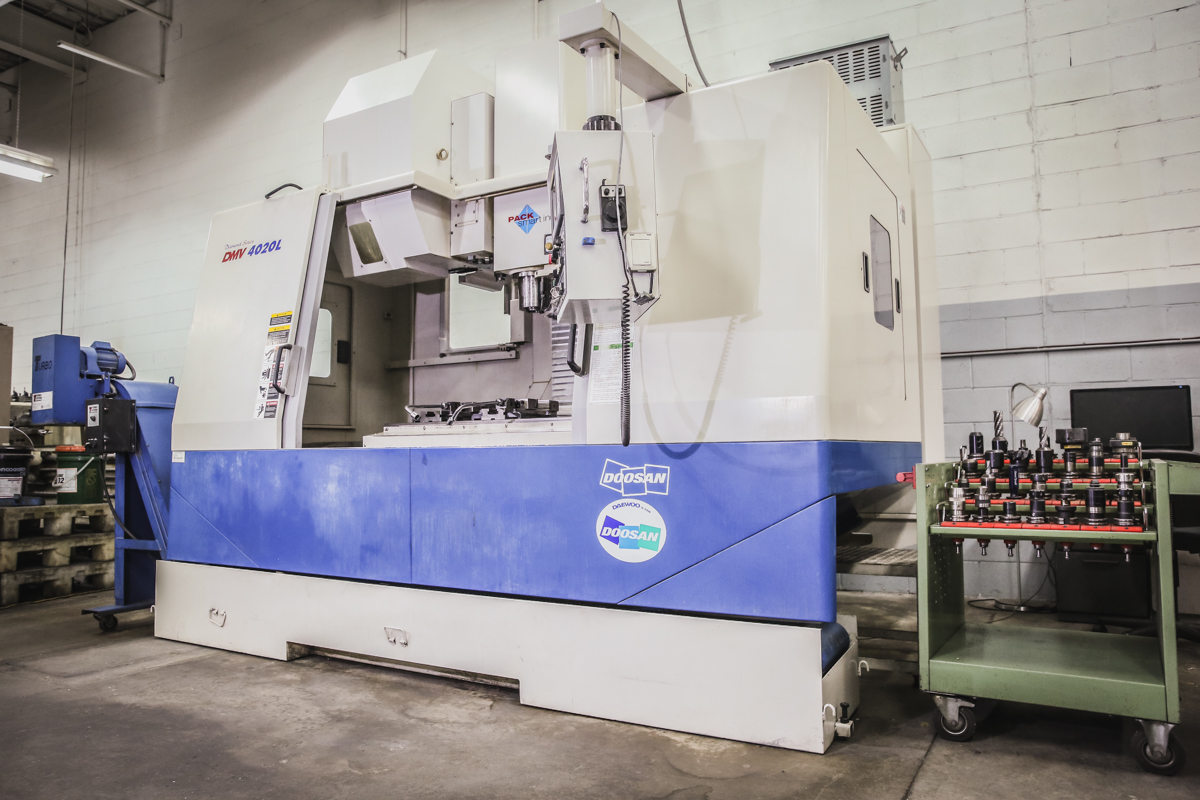

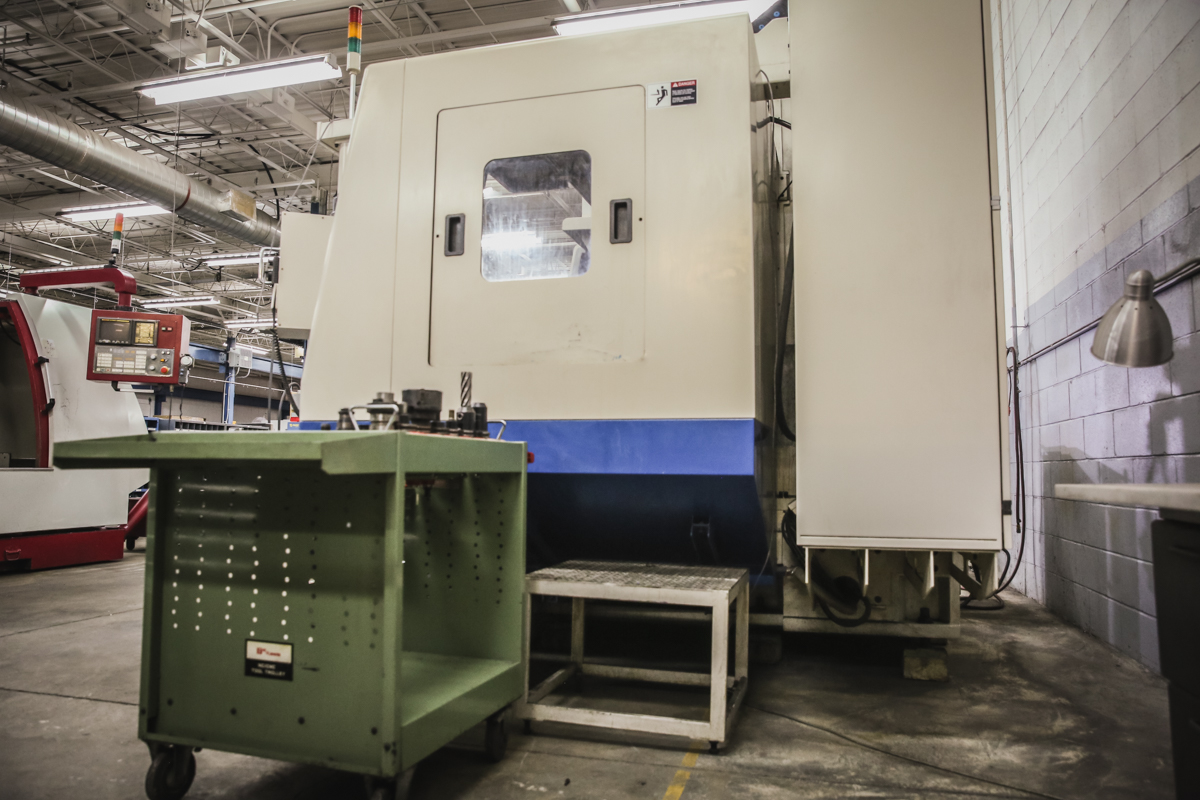

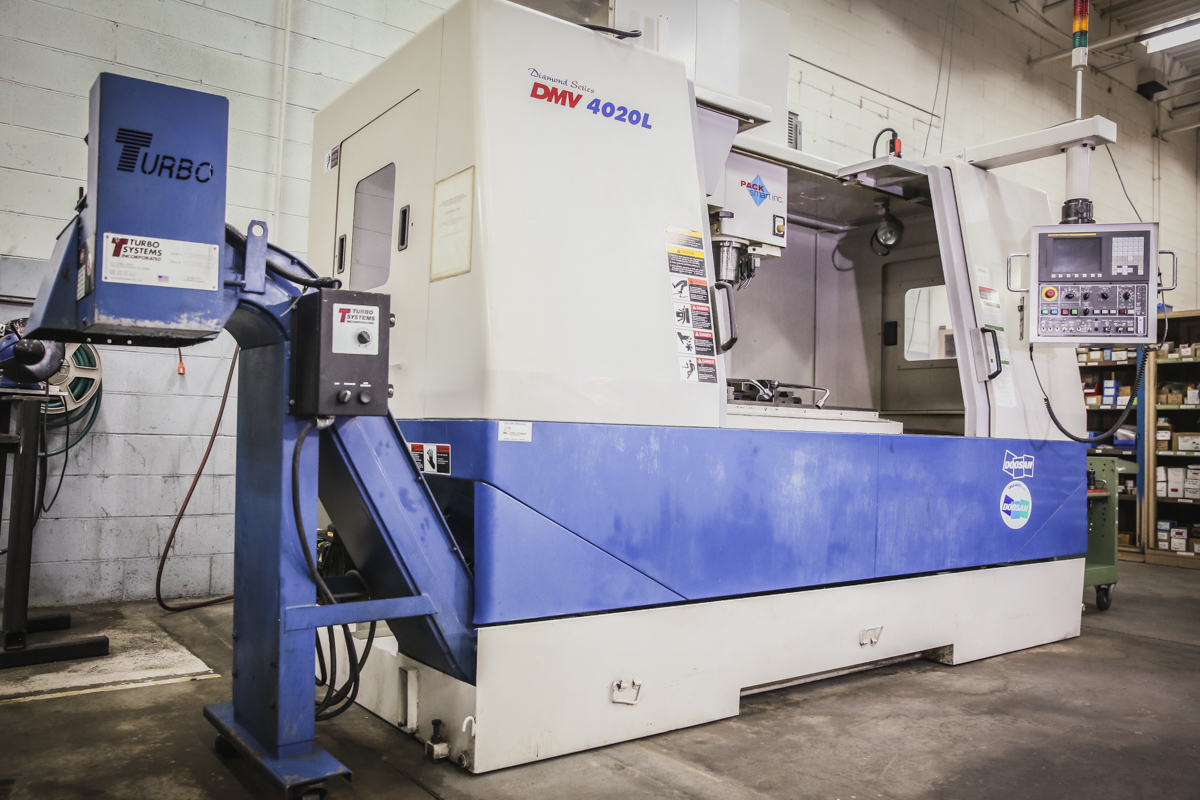

2007 DOOSAN DMV-4020L

Fanuc OiM, 40.20.25", 12000 RPM, Cat 40, 20HP, 30 Tools, TSC, Chip
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 40.1"
  • Y-Axis 20.1"
  • Z-Axis 24.6"
  • Table Size 47.2" x 19.7"
  • Spindle Speed 12,000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 20 HP
  • Tools 30
  • Table Load Capacity 1760 lbs.
  • Rapid Traverse Rates 1181 / 787 IPM
  • Max Tool Diameter 4.9" / 8.6"
  • Max Tool Length 9.8"
  • Max Tool Weight 26.4 lbs.
  • Machine Dimensions(L x W x H) 163" x 100" x 120"
  • Machine Weight 16,000 lbs.
  • Spindle Nose to Table Top 7.9" - 32.4"

Product Features

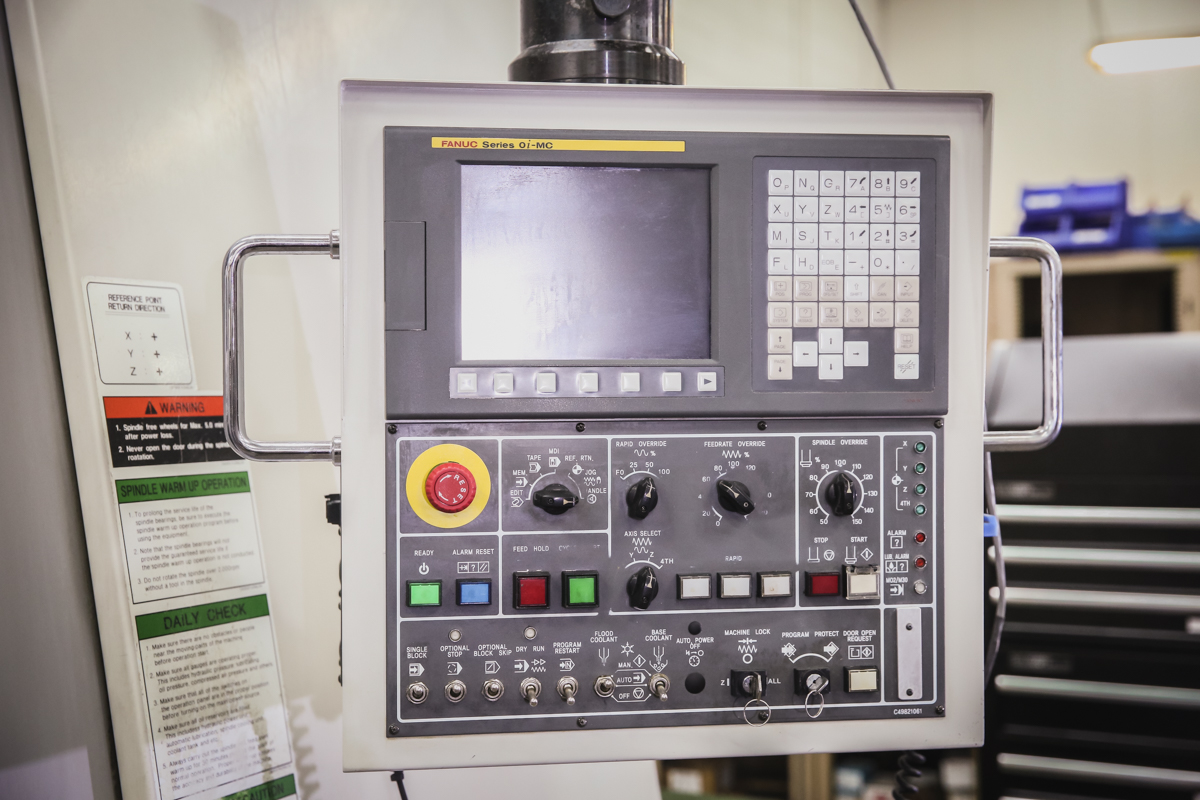

  • FANUC OiM CNC CONTROL
  • 10.4" Color LCD
  • 30 Position Side Mount Tool Changer
  • Through Spindle Coolant (300 psi)
  • PC/MCIA Interface
  • Graphic Display
  • Rigid Tapping
  • Fourth Axis Interface

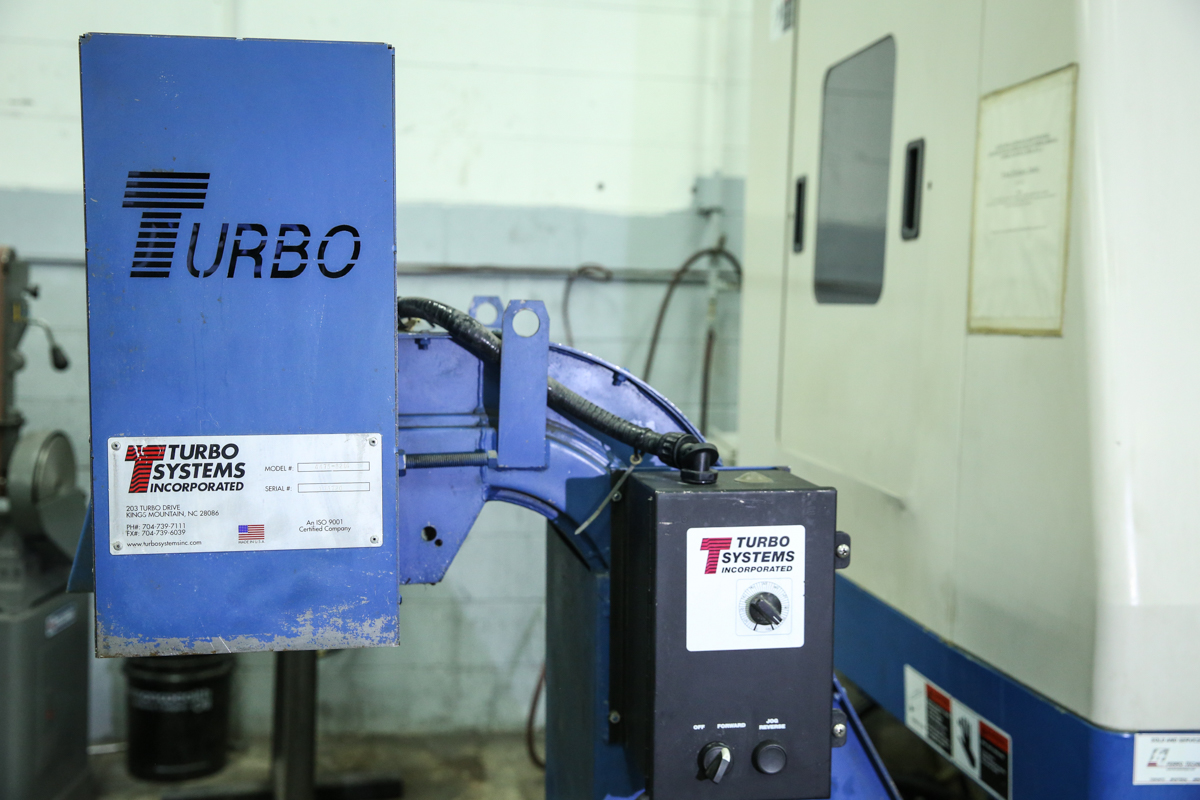

  • Chip Conveyor (Left Side Exit)
  • Remote Manual Pulse Generator
  • Base Coolant Flush
  • Three Color Tower Light
