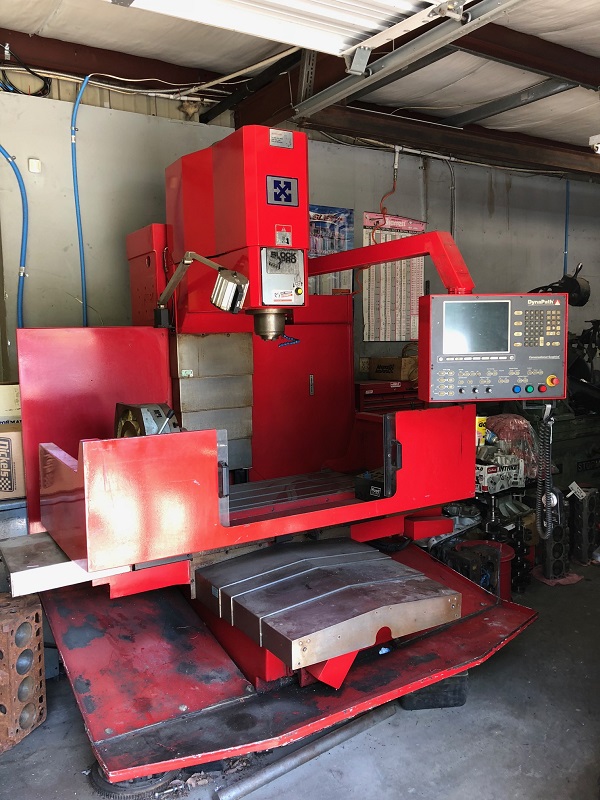

2007 BLOCK PRO 4222

Delta 2000, 42.22.24", 6000 RPM, Cat 40, Manual Indexer, Conversational Programming
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 41.7"
  • Y-Axis 22.0"
  • Z-Axis 24.02"
  • Table Size 48" x 18"
  • Spindle Speed 60 - 6000 RPM
  • Spindle Taper CAT 40
  • Table Load Capacity 2000 lbs.
  • Rapid Traverse Rate 320 IPM
  • Max Tool Diameter 3.54"
  • Max Tool Length 11"
  • Max Tool Weight 13.78 lbs.
  • Spindle Center to Column 23.62"
  • Spindle Nose to Table Top 4.8" - 28.9"
  • Spindle Torque 39 ft. lbs

Product Features

  • Dynapath Delta 2000 CNC Control
  • 12" Color LCD
  • 3-Axis Simultaneous Contouring Capability
  • Conversational Programming
  • PC Based Pentium
  • 3.5" Floppy Disc Drive
  • Rs-232 Interface
  • High Speed Contouring
  • 40 Block Look Ahead
  • Hardened and Ground Slideways on All Axes
  • (4) Box Ways on Y-Axis
  • Variable Speed AC Spindle Motor
  • AC Servo Drives
  • Tool Path Graphic Display
  • Canned Drill Cycles
  • Canned Cycles for Facing, Rectangular & Circular Pocket
  • Cutter Radius Compensation
  • Math Help
  • Chip Tray
  • Auto Lube System

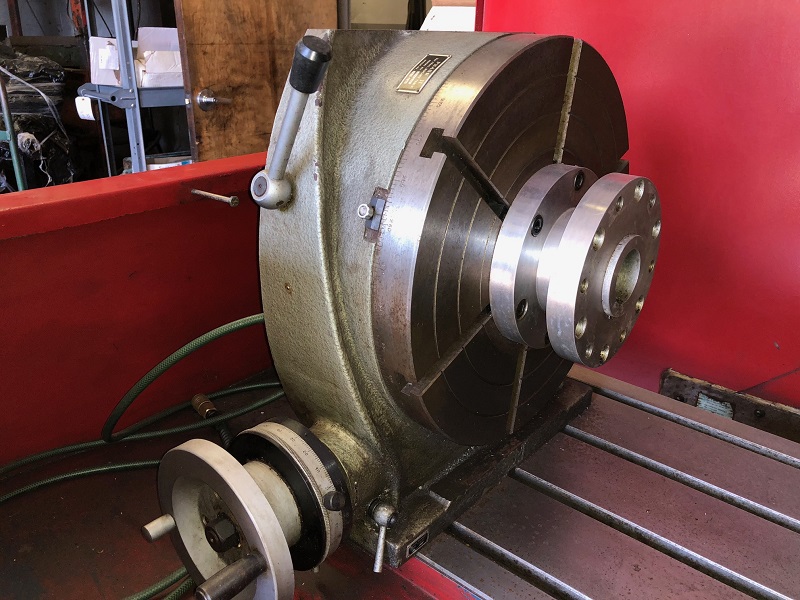

  • Manual Rotary Indexer (Horizontal & Vertical)
  • Approximately (10) Tool Holders
