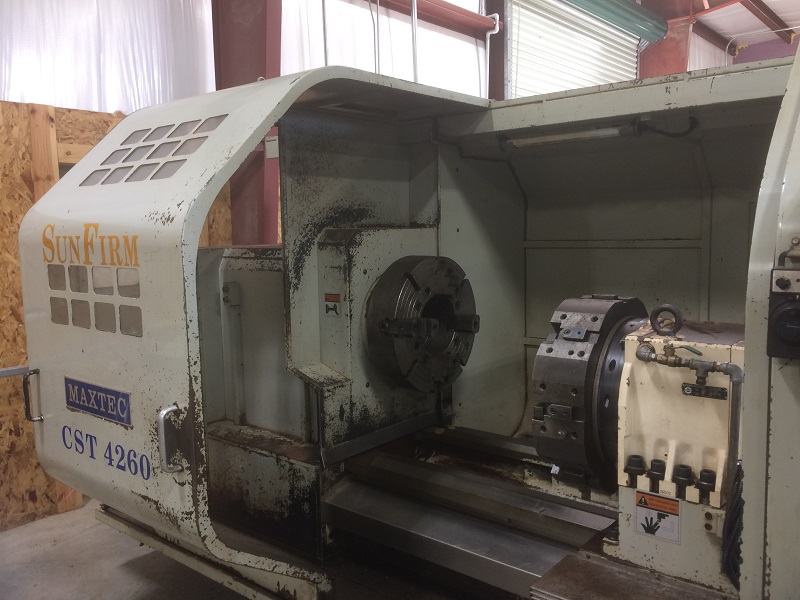

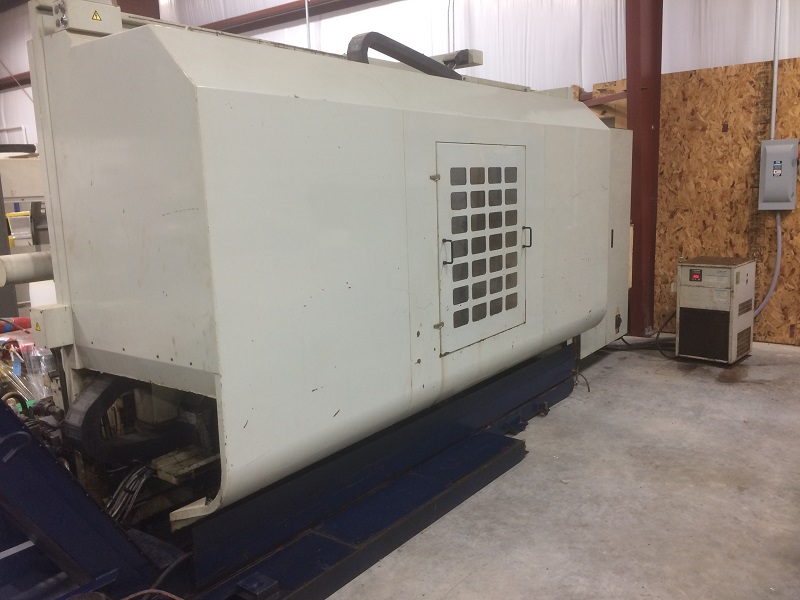

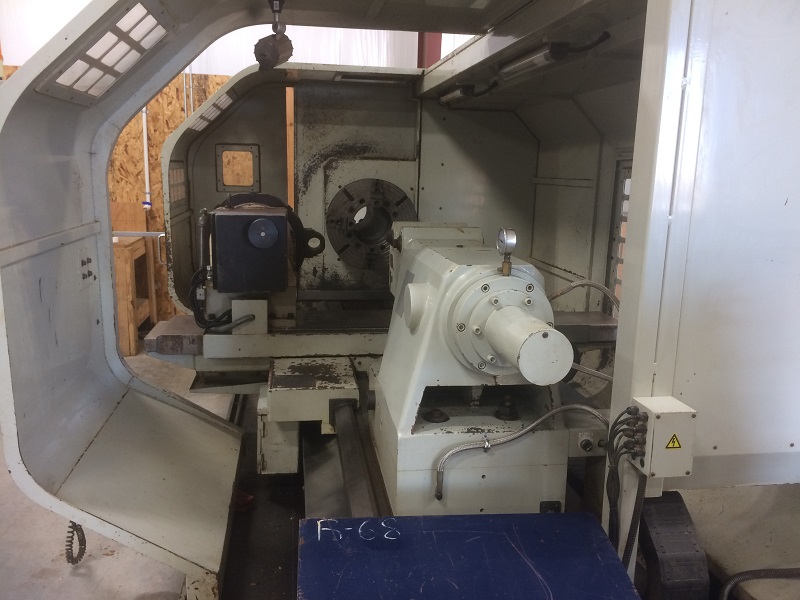

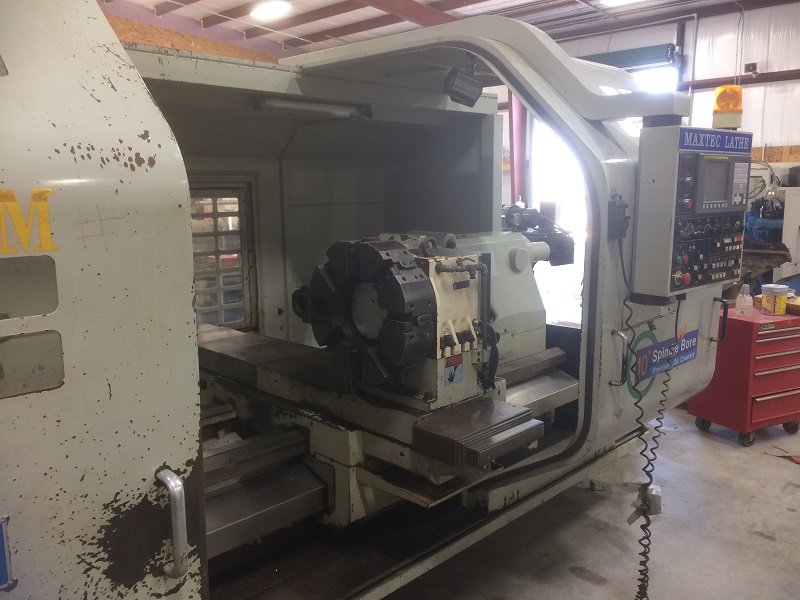

2006 SUNFIRM CST-4260

Fanuc 0i-TC, 10" Bore, 4-Jaw Chuck, 35 HP, 420 RPM, 8 Tools, 42" Swing, 60" Length, Steady Rest, Tailstock, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Max Swing Over Bed / Carriage / Gap 42" / 27" / 55"
  • Spindle Motor 35 / 30 HP
  • Spindle Bore 10"
  • Tools 8
  • Rapid Traverse Rates (X / Z) 393 / 315 IPM
  • X-Axis Travel 26"
  • Bed Width 26"
  • Distance Between Centers 60"
  • Gap Width 22"
  • Tailstock Taper MT#6

Product Features

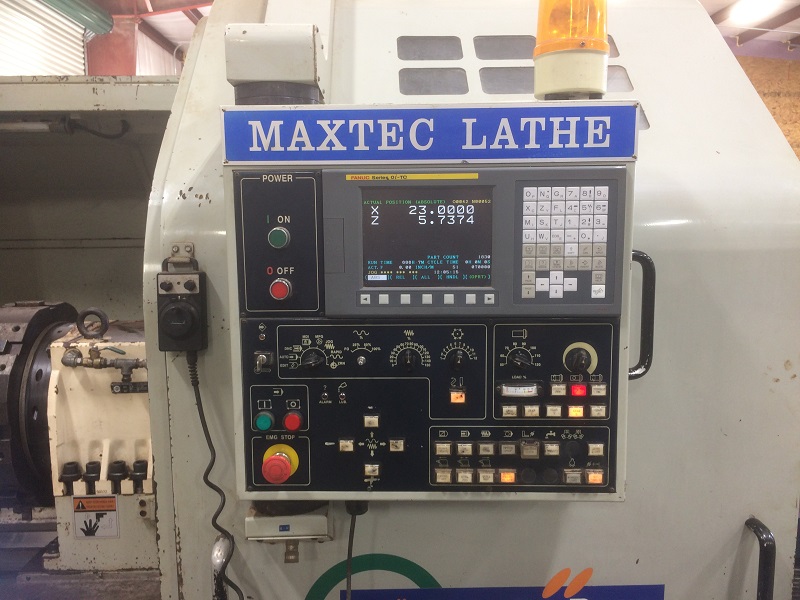

  • Fanuc 0i-TC CNC Control
  • 7" Color LCD
  • Manual 4-Jaw Chuck on Front of Spindle
  • Manual 3-Jaw Chuck on Rear of Spindle
  • (8) Position Turret
  • Manual Tailstock
  • Remote Jog Handle
  • Yellow Operation Light
  • Chip Conveyor (Right Rear Exit)
  • Spindle Chiller Unit
