< Back to Lathes
Special Item

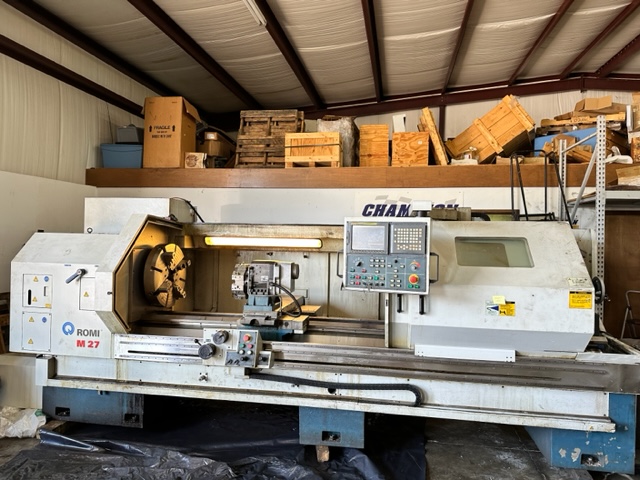

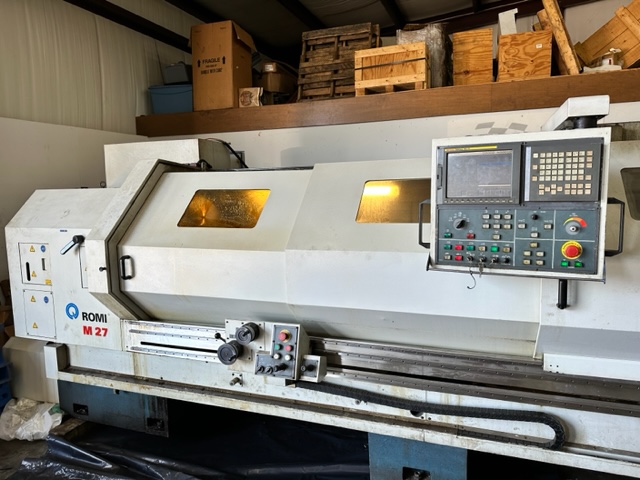

2003 ROMI M-27 CNC TEACH LATHE

GE Fanuc 21iT, 4.1" Bore, 24" Chuck, 8 Tools, 118" Length, 1800 RPM, 30 HP, Chip Conveyor, Tailstock, Steady Rest
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 24"
  • Max Swing Over Bed / Carriage 30" / 18.5"
  • Spindle Motor 30 HP
  • Spindle Nose A2-8
  • Spindle Bore 4.1"
  • Rapid Traverse Rates (X / Z) 295 / 394 IPM
  • X-Axis Travel 14.17"
  • Z-Axis Travel 118.1"
  • Machine Weight 14,000 lbs.
  • Distance Between Centers 118"
  • Spindle Torque 210 ft. lbs.
  • Tailstock Taper MT #5

Product Features

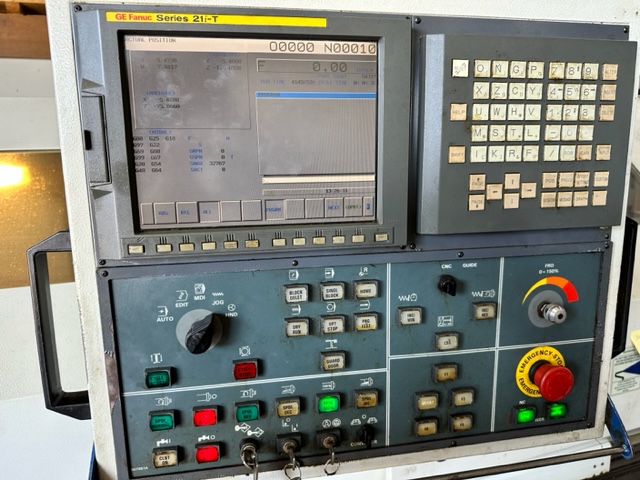

  • GE FANUC 21i-T CNC CONTROL
  • 10.4" Color LCD
  • Manual, Teach and CNC Programming Modes

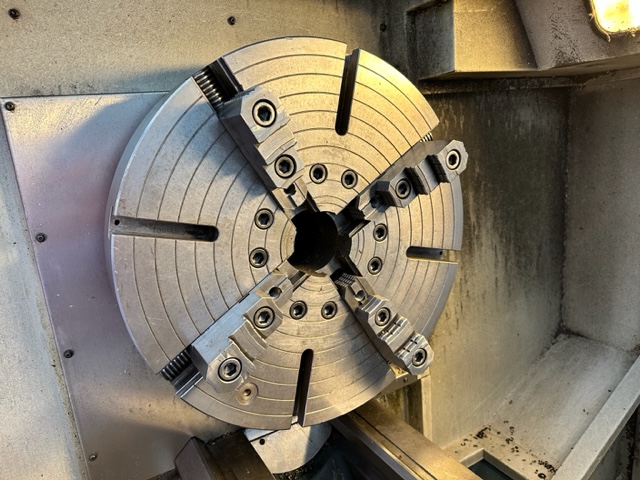

  • 24" Manual 4-Jaw Chuck
  • 118" Cutting Length

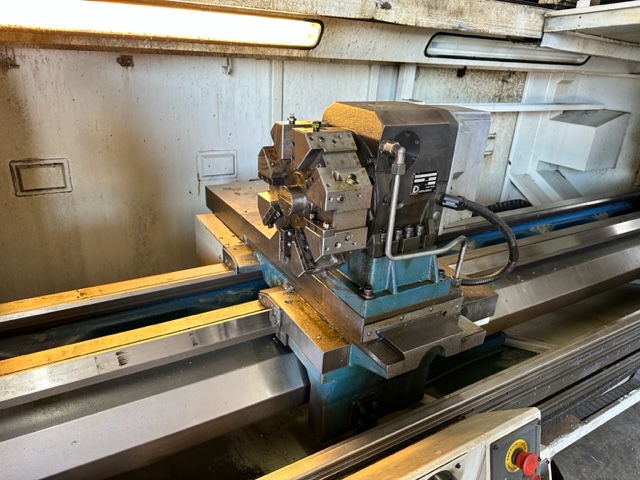

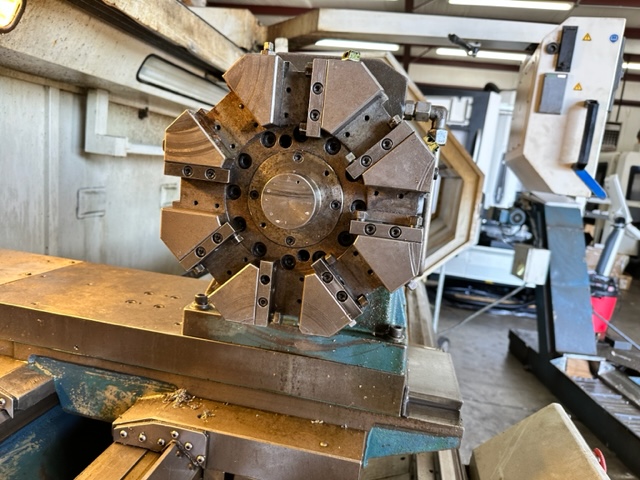

  • 8 Position Automatic Turret
  • Manual Tailstock
  • Manual Steady Rest
  • Electronic Handwheels for Manual Operation
  • 4.1" Big Spindle Bore Option
  • Coolant Pump and Tank
  • Chip Conveyor (Right Rear Exit Hinge Type)
