< Back to Lathes

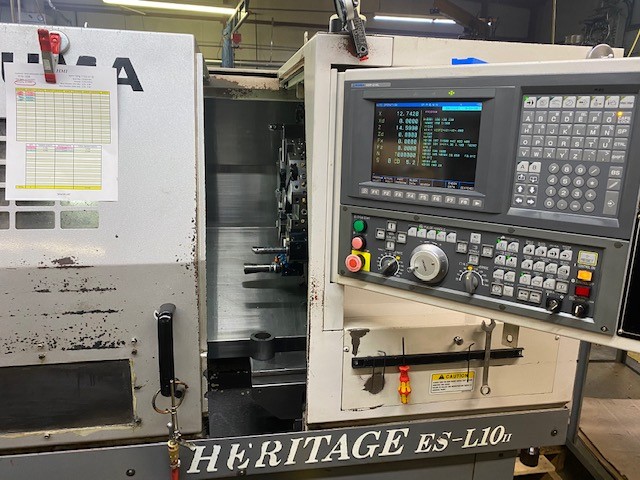

2006 OKUMA ES-L10II

OSP-U10L, 2.63" Bar, 10" Chuck, 20 HP, 12 Tools, 3000 RPM, Tailstock, Chip Conveyor, Box Ways, Geared Head
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 10"
  • Max Diameter Bar Capacity 2.63"
  • Max Swing Over Bed 20.5"
  • Spindle Motor 20 HP
  • Spindle Speed 3000 RPM
  • Spindle Nose A2-8
  • Spindle Bore 3.15"
  • Tools 12
  • Rapid Traverse Rates (X / Z) 787 / 984 IPM
  • X-Axis Travel 8.66"
  • Z-Axis Travel 20.47"
  • Machine Dimensions (L x D x H) 100" x 77" x 71"
  • Machine Weight 8140 lbs.
  • Max Turning Diameter 12.2"
  • Max Turning Length 19.68"
  • Spindle Torque 420 ft. lbs.
  • Tailstock Taper MT #5

Product Features

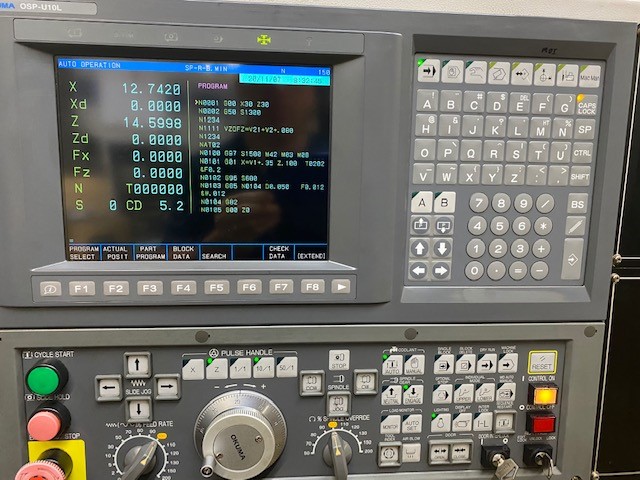

  • OKUMA OSP-U10L CNC Control
  • 10.4" Color LCD

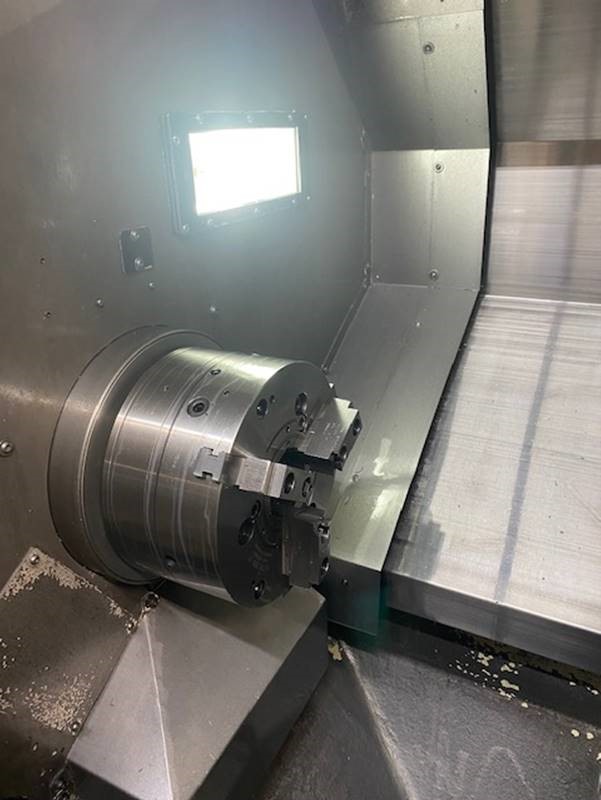

  • 10" SMW Autoblock Quick Change Hydraulic Chuck

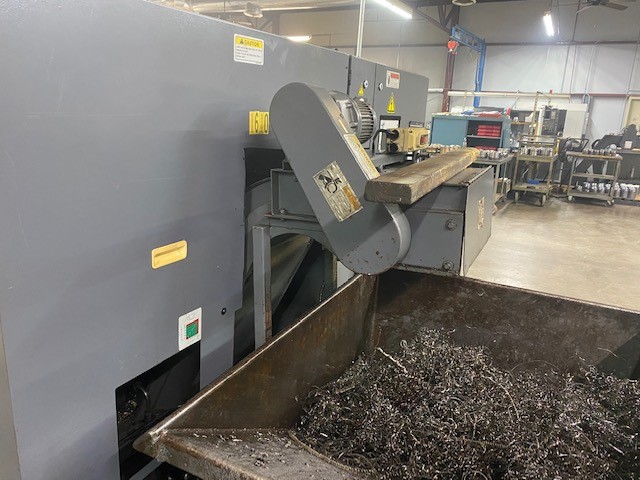

  • Chip Conveyor (Rear Exit)

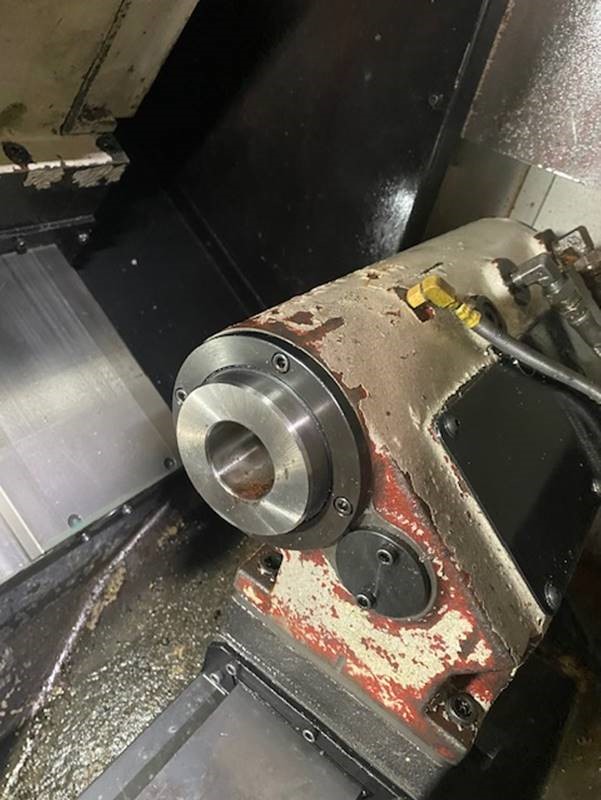

  • Tow-Along Tailstock
  • (2) Boring Bar Holders
  • (1) Facing Holder
  • (5) OD Wedge Blocks
