2006 MORI SEIKI NL-2500/700

Mori MSX-850, 3.1" Bar, 10" Chuck, 12 Tools, 4000 RPM, 25 HP, Chip Conveyor, Auto Parts Catcher
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 10"
  • Max Diameter Bar Capacity 3.1"
  • Max Swing Over Bed / Front Cover 36.4" / 22.8"
  • Max Swing Over Carriage 29.7"
  • Max Machining Length 27.7"
  • Spindle Motor 24.7 / 20 HP
  • Spindle Speed 4000 RPM
  • Spindle Nose A2-8
  • Spindle Bore 3.6"
  • Tools 12
  • Rapid Traverse Rates 1181 IPM
  • X-Axis Travel 10.2"
  • Z-Axis Travel 31.3"
  • Turret Index (Single Step) 0.2 Seconds
  • Machine Dimensions (L x W x H) 122" x 75.7" x 83.5"
  • Machine Weight 12,000 lbs.
  • Max Turning Diameter / Std. 14" / 10.8"
  • Tailstock Taper MT #5

Product Features

  • MORIC MSX_850 CNC Control
  • 10.4" Color LCD
  • MAPPS III Conversational Programming

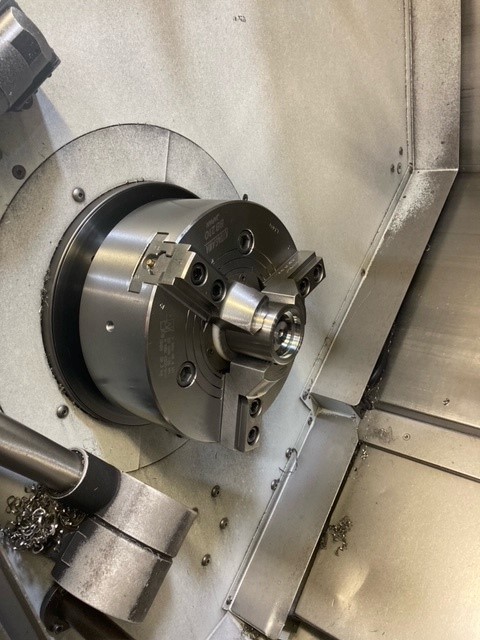

  • 10" Hydraulic Chuck
  • Tool Presetter

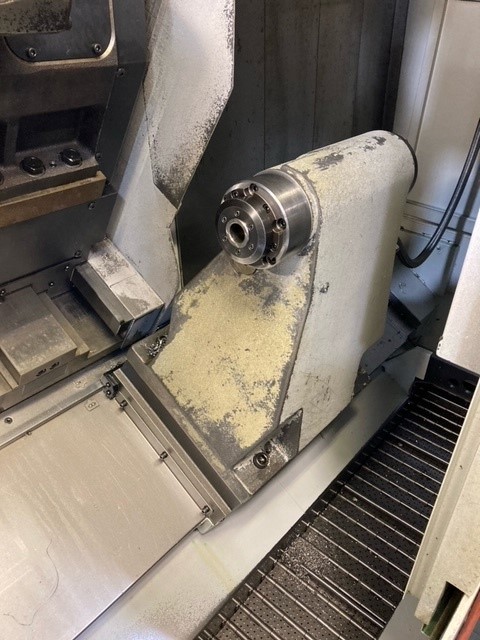

  • Servo Driven Tailstock

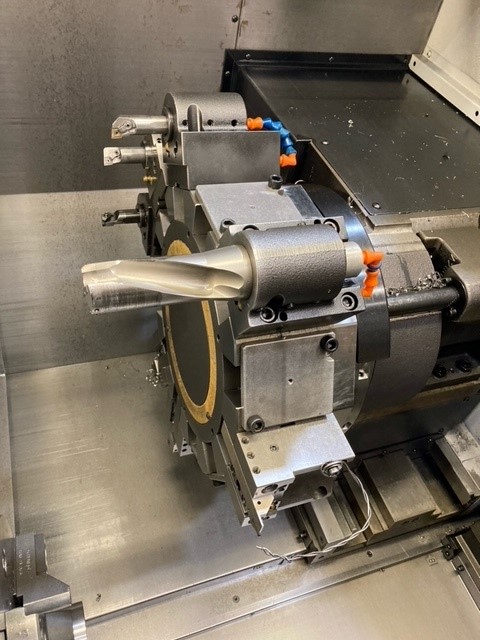

  • Servo Driven Turret

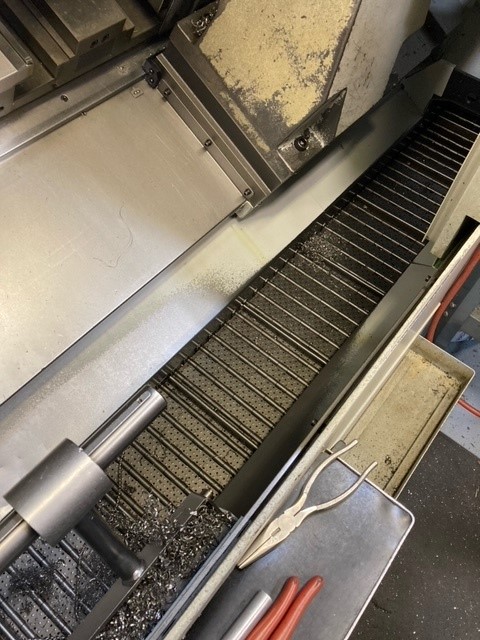

  • Turbo Chip Conveyor (Side Exit)
  • Heavy Duty Slant Bed Box Way Construction
  • Manufacture Date February 2006

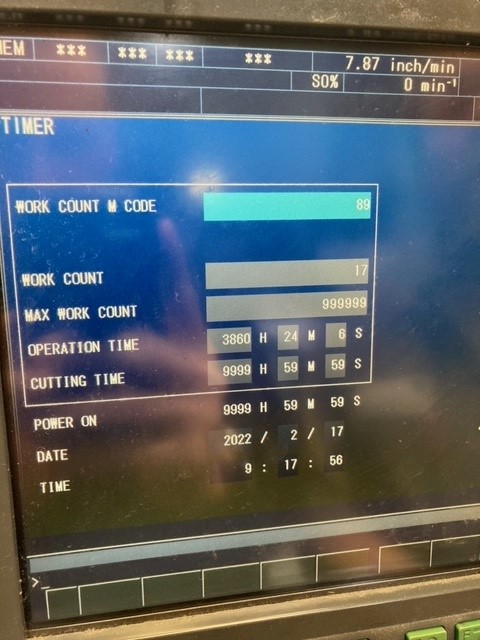

  • 9999 Power On Time
  • 3860 Operation Time
  • 9999 Cutting Time
