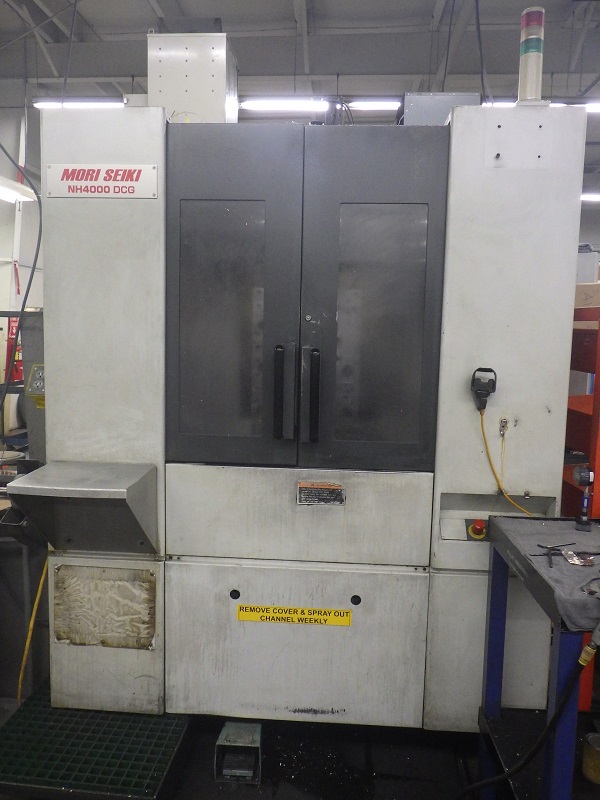

2006 MORI SEIKI NH-4000 DCG

Fanuc 18iMA, 15.75" Pallet, 22.22.25", 14000 RPM, 25 HP, Cat 40, Fourth Axis, 60 Tools, TSC 250 psi, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Pallet Change Time 6 Seconds
  • Pallet Load Capacity 880 lbs.

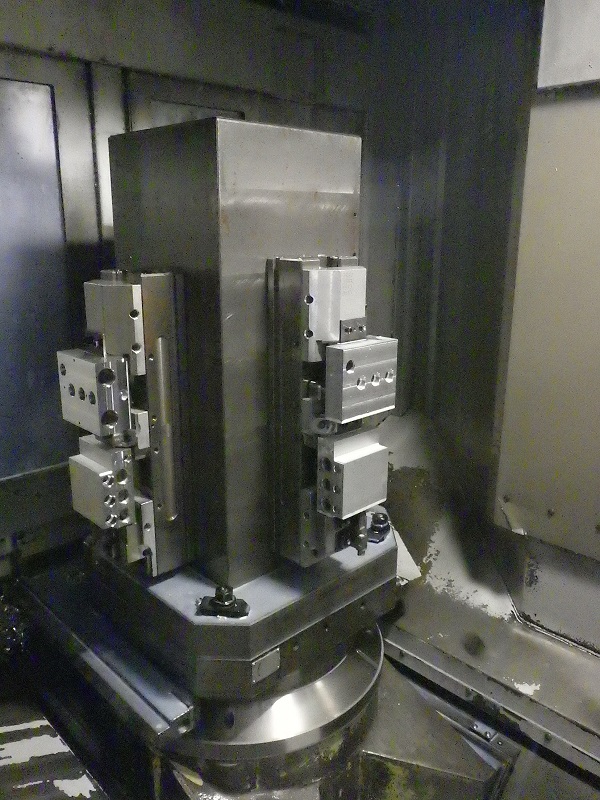

  • Pallet Size 15.75" (2)
  • X-Axis 22.04"
  • Y-Axis 22.04"
  • Z-Axis 24.80"
  • Pallet Index .001 Degree

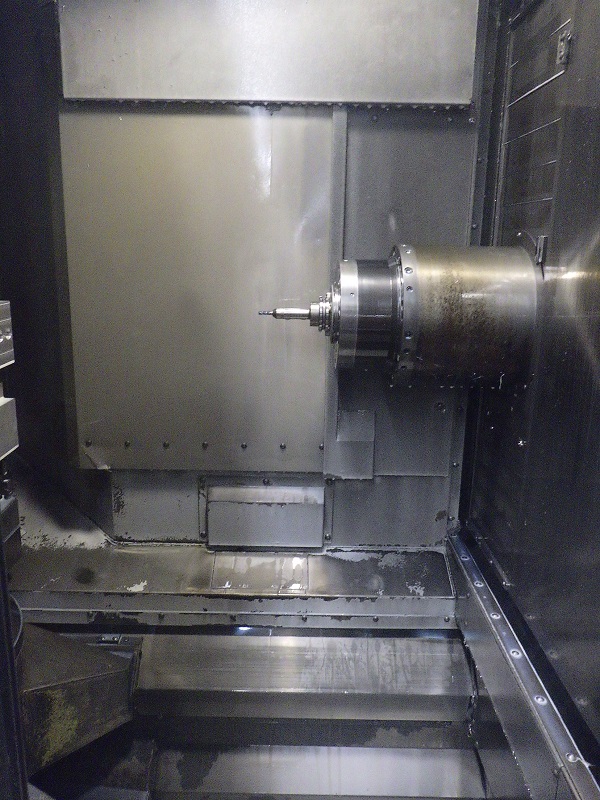

  • Spindle Speed 14,000
  • Spindle Taper CAT 40
  • Spindle Motor 25 / 15 HP
  • Spindle Nose to Table Center 3.9" - 28.7"
  • Tools 60
  • Rapid Traverse Rates 1969 IPM
  • Tool Change Time 0.9 Seconds
  • Max Tool Diameter 5.5"
  • Max Tool Length 15.7"
  • Max Tool Weight 17.6 lbs.
  • Machine Dimensions (L x W x H) 148" x 91" x 103"
  • Machine Weight 21,000

Product Features

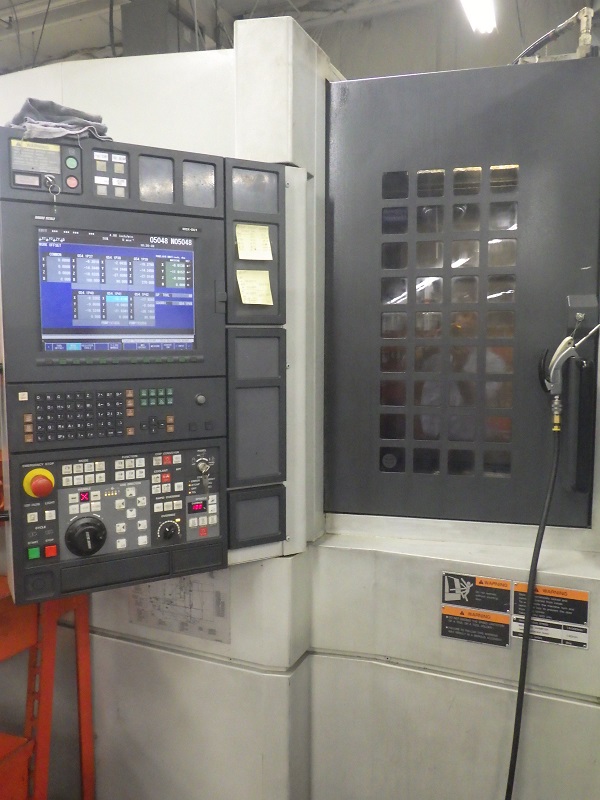

  • MORIC MSG-501 (Fanuc 18iMA) CNC CONTROL
  • 14" Color LCD
  • MAPPS Programming
  • Coolant Thru Spindle (250 psi)
  • 60 Tool Magazine
  • Shower Coolant
  • Helical Interpolation
  • Rigid Tapping
  • Three Color Tower Light

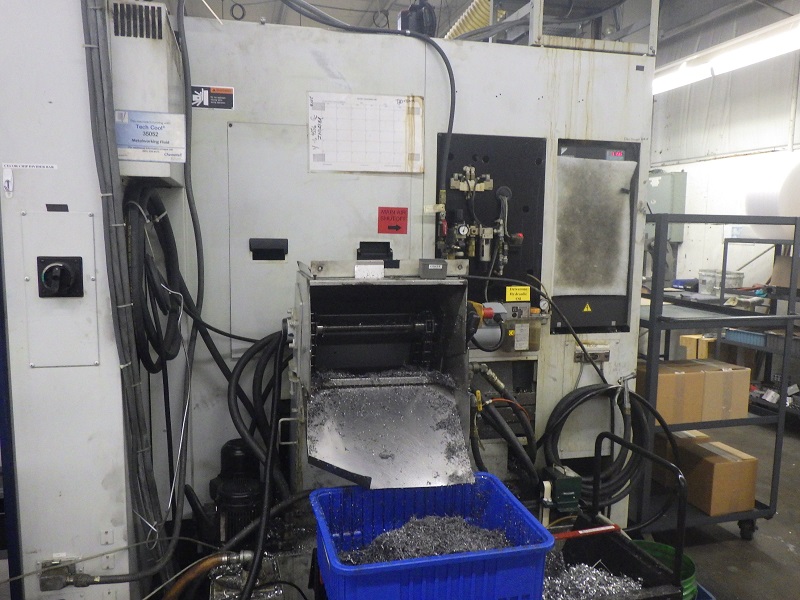

  • Chip Conveyor (Rear Exit)

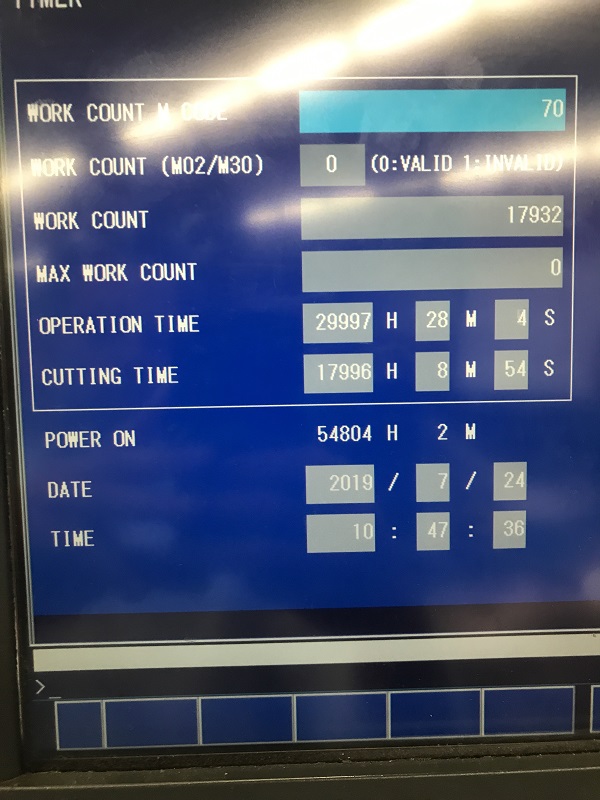

  • 54,804 Power On Time
  • 29,997 Operation Time
  • 17,996 Cutting Time
