< Back to Lathes

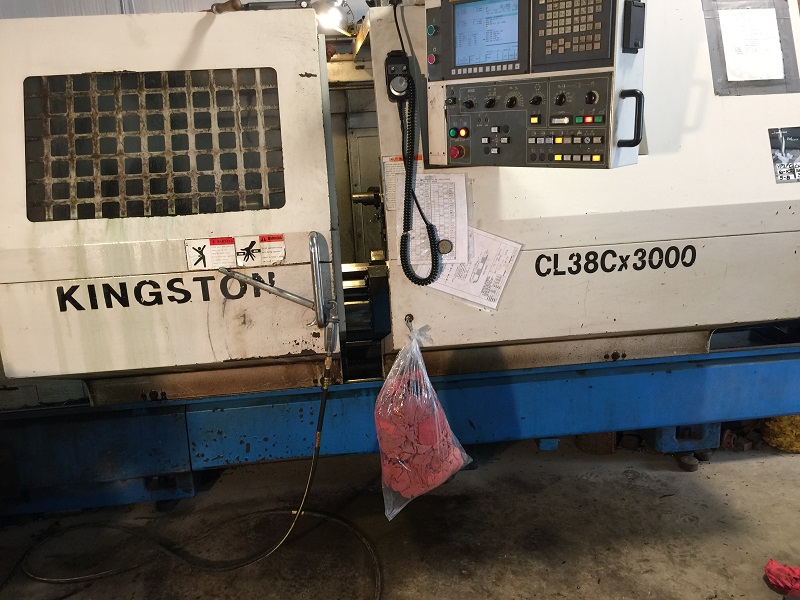

2006 KINSTON CL38C/3000

Fanuc 0i-TC, 7.3" Bore, 20" 4-Jaw Chuck, 30 HP, 24" Max Dia, 120" Length, 8 + 6 Tools, Steady Rest, Tailstock, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Max Swing Over Bed / Carriage 26"
  • Spindle Motor 30 / 25 HP AC
  • Spindle Nose A2-15
  • Spindle Bore 7.3"
  • Tools 8 Front OD + 6 Rear ID
  • Rapid Traverse Rates (X & Z) 394 IPM
  • X-Axis Travel 21.7"
  • Z-Axis Travel 120"
  • Machine Weight 18,000 lbs.
  • Bed Width 18"
  • Distance Between Centers 120"
  • Max Turning Diameter (Chucking/Shaft) 24"/14.5"
  • Tailstock Taper MT #5

Product Features

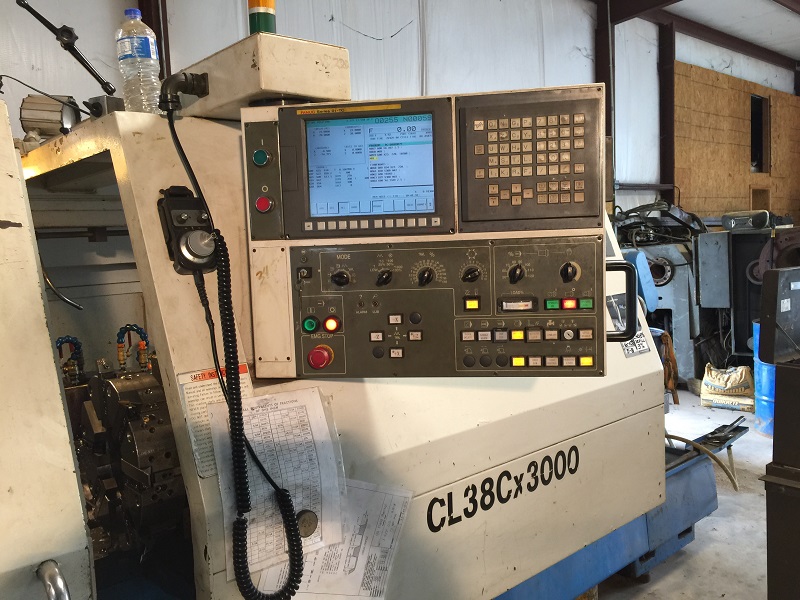

  • Fanuc 0i-TC CNC Control
  • 9" Color LCD

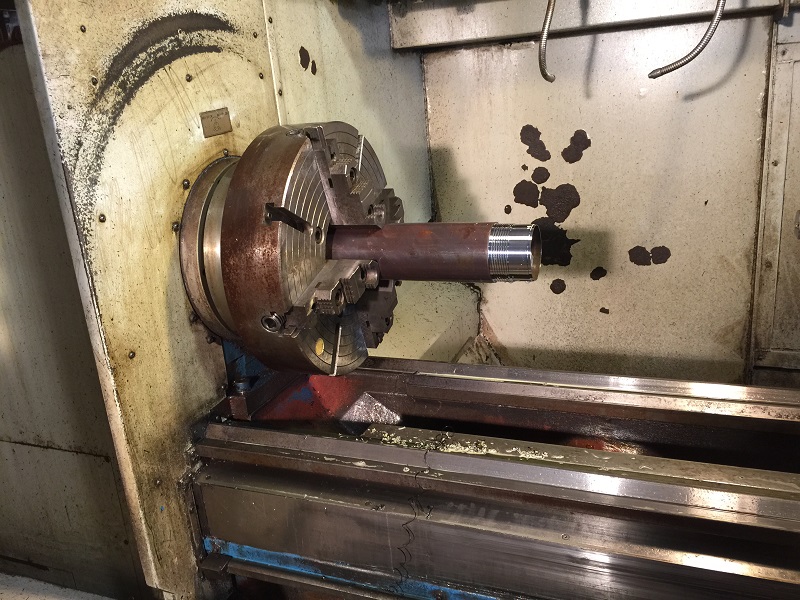

  • 20" Manual 4-Jaw Chuck
  • Manual Steady Rest
  • Manual Tailstock
  • Chip Conveyor (Right Rear Exit)

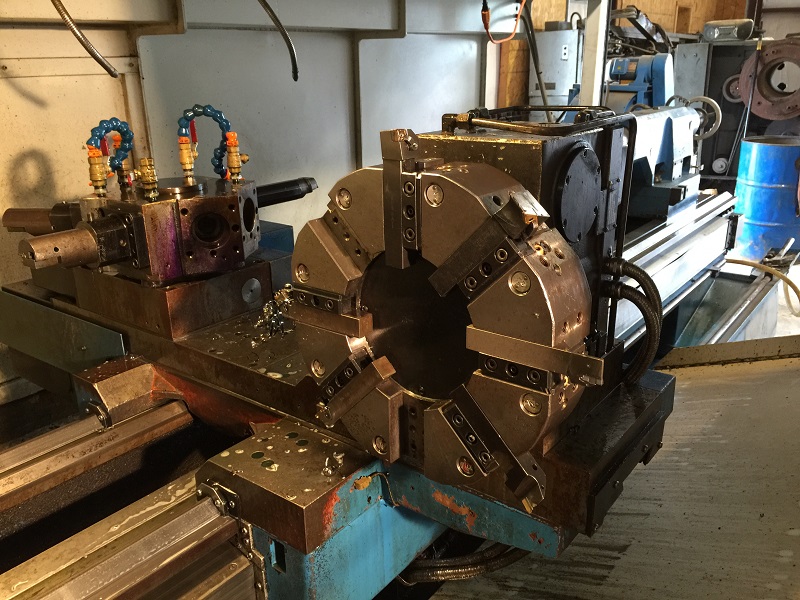

  • (8) Front OD + (6) Rear ID Tool Turrets
  • Manufacture Date September 2005
  • Installed in 2006
