< Back to Lathes
Special Item

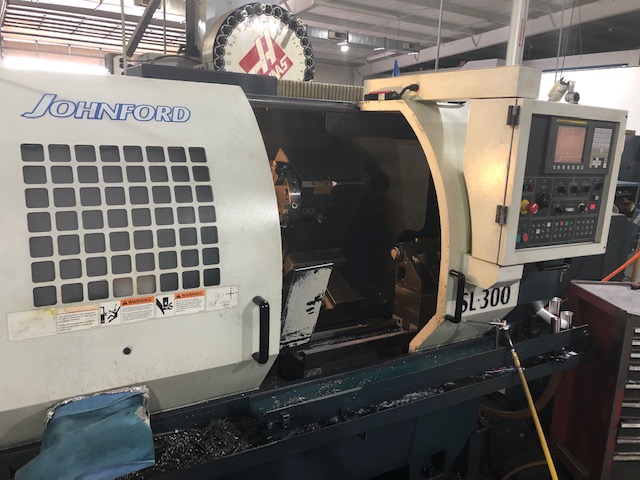

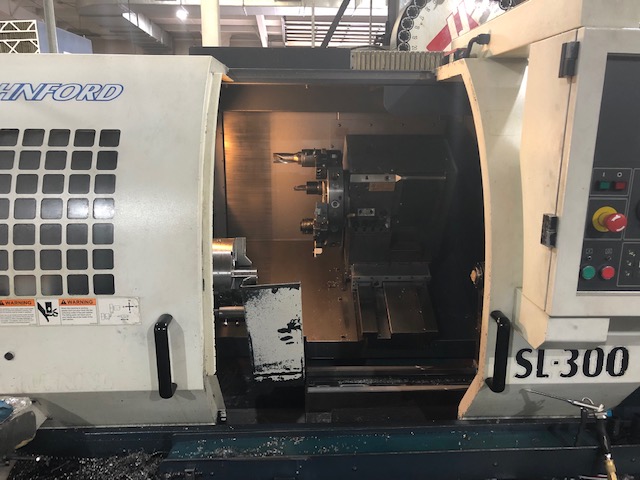

2006 JOHNFORD SL-300B

Fanuc 0i-TC, 2.65" Bar, 10" Chuck, 4500 RPM, 12 Tools, 20HP, Tail, Chip, APC, Barfeed
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 10"
  • Max Diameter Bar Capacity 2.65"
  • Spindle Motor 20 HP
  • Spindle Speed 30 - 4500 RPM
  • Spindle Nose A2-6
  • Spindle Bore 3.1"

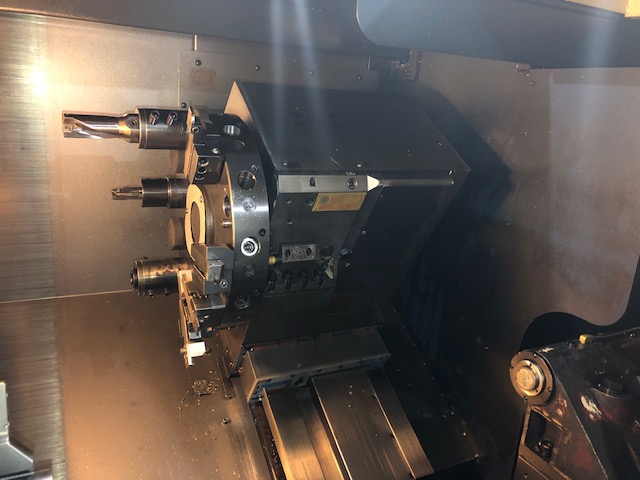

  • Tools 12
  • Rapid Traverse Rate (X / Z) 787 / 944 IPM
  • X-Axis Travel 7.09"
  • Z-Axis Travel 21.25"
  • Turret Index (Single Step) 0.2 Seconds
  • Machine Dimensions (L x W x H) 177" x 83" x 89"
  • Machine Weight 8880 lbs.
  • Distance Between Centers 24"
  • Max Turning Diameter 12.99"
  • Tailstock Taper MT #5

Product Features

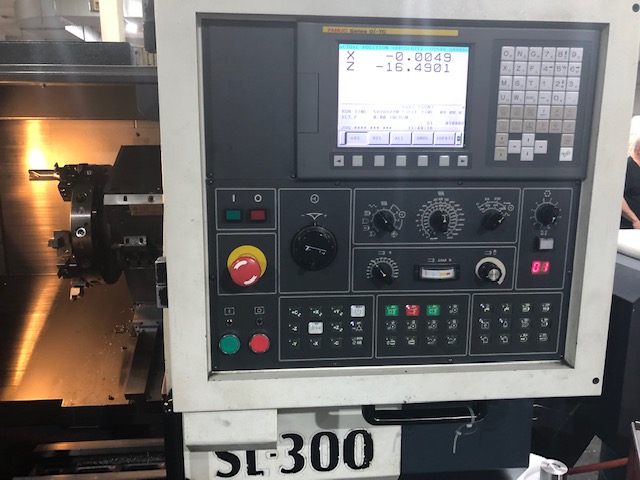

  • FANUC 0i-TC CNC Control
  • 10.4 Color LCD

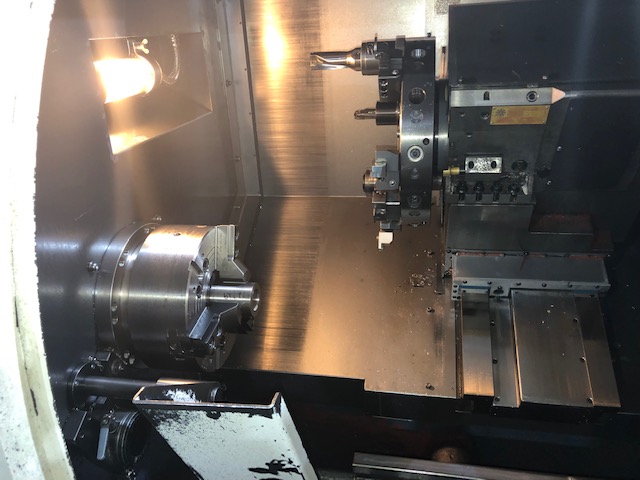

  • 10" Hydraulic Chuck
  • Johnford Pro 1500 4ft Barfeed
  • Programmable Tailstock
  • Automatic Parts Catcher
  • High Pressure Coolant
  • Manufactured July 2006

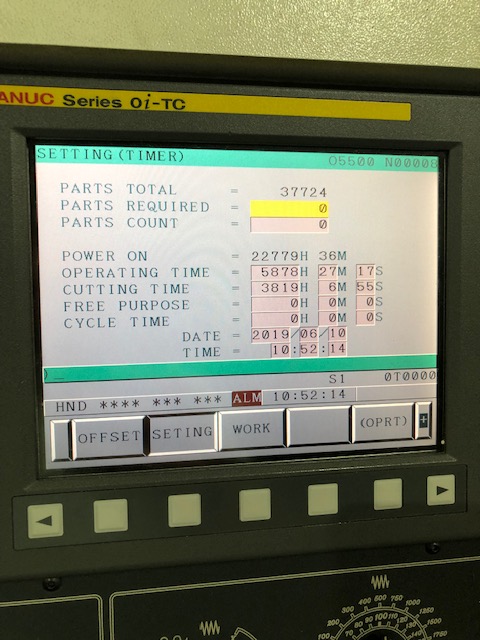

  • 22,779 Power On Time
  • 5,878 Operating Time
  • 3,819 Cutting Time
