Special Item

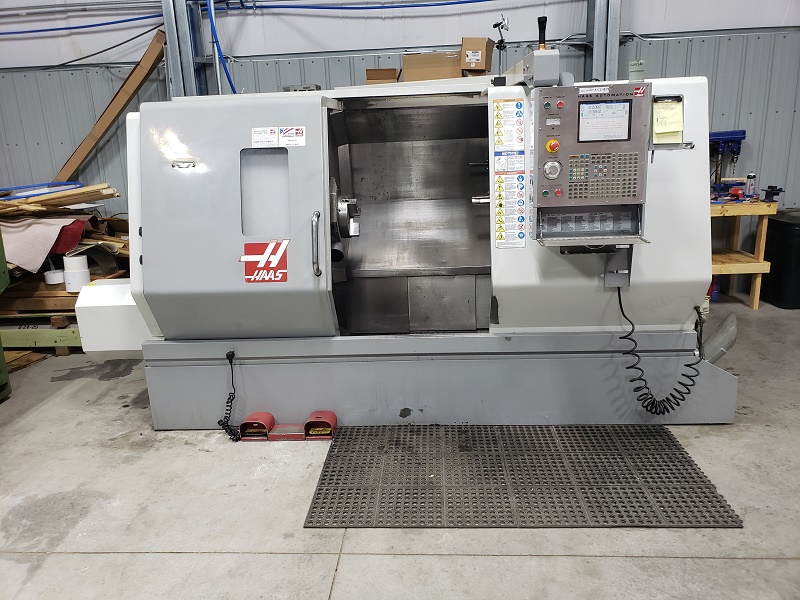

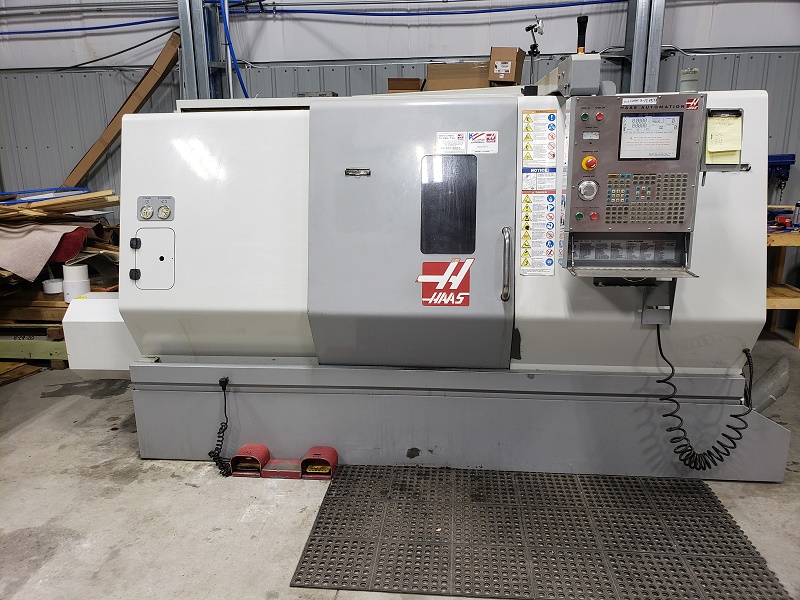

2006 HAAS SL-30T

3" Bar, 10" Chuck, 3400 RPM, 12 Tools, 40 HP, Two Speed Gearbox, Tailstock, Tool Presetter, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 10"
  • Max Diameter Bar Capacity 3"
  • Max Swing Over Bed / Carriage 30" / 14.5"
  • Max Machining Length 32"
  • Spindle Motor 40 HP
  • Spindle Speed 20 - 3400 RPM
  • Spindle Nose A2-6
  • Spindle Bore 3.5"
  • Tools 12
  • Rapid Traverse Rates (X & Z) 710 IPM
  • X-Axis Travel 11.3"
  • Z-Axis Travel 34"
  • Machine Dimensions (L x W x H) 162" x 77" x 74"
  • Machine Weight 16,000 lbs.
  • Distance Between Centers 39"
  • Max Turning Diameter 17"
  • Spindle Torque 300 ft. lbs.
  • Tailstock Taper MT#4

Product Features

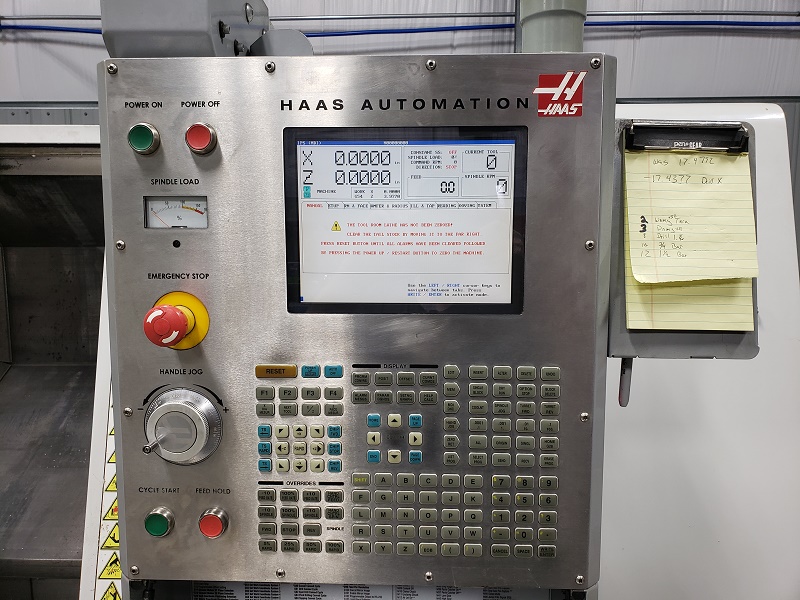

  • HAAS CNC Control
  • 10.4" Color LCD

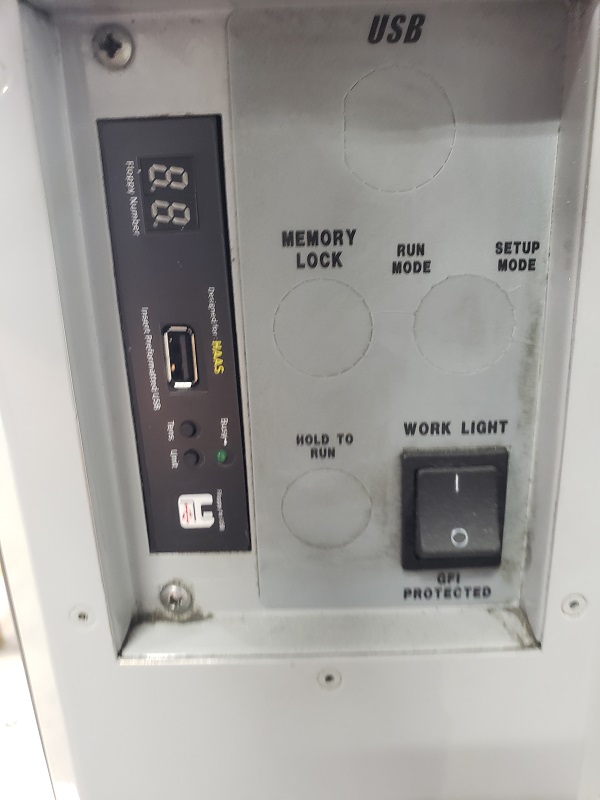

  • USB Port
  • 10" Hydraulic Chuck
  • Two Speed Gearbox
  • 40 HP Vector Drive

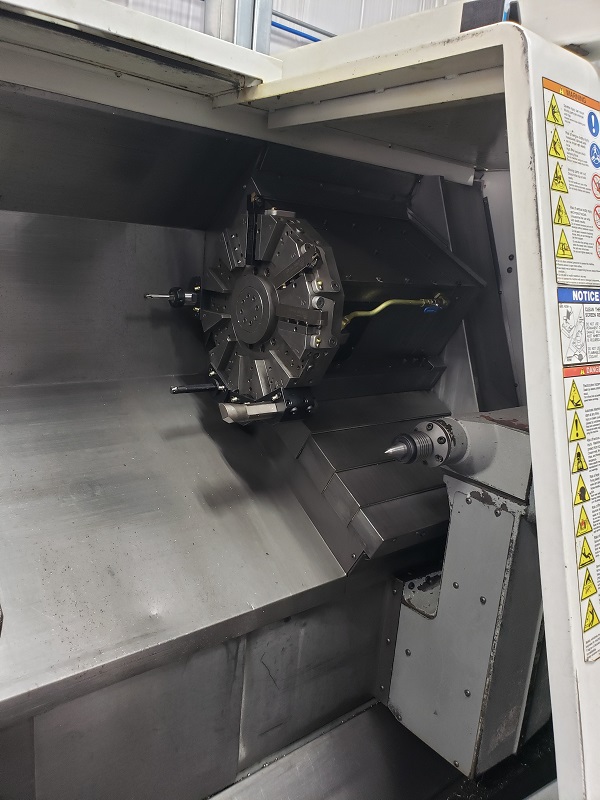

  • Fully Programmable Hydraulic Tailstock
  • Tool Presetter
  • Chip Auger
  • (3) Boring Bar Holders
  • (3) OD Wedge Blocks
  • Manufacture Date April 2006

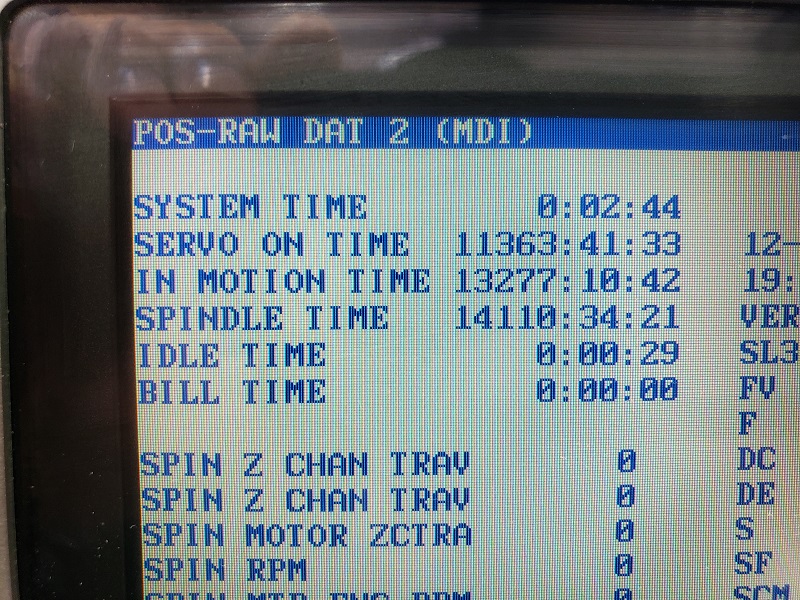

  • 11,405 Servo On Time
  • 13,289 In Motion Time
  • 14,123 Spindle Time
