2006 HAAS EC-1600-3X

64.40.32", 6000 RPM, Cat 50, 30 HP, 30 SMTC, 30" Dia. Platter, TSC 300 psi, Auger
Talk to a representative today!
(803) 548-8000

Product Details

  • Pallet Load Capacity 10,000 lbs.
  • X-Axis 64"
  • Y-Axis 40"
  • Z-Axis 32"
  • Spindle Speed 6000 RPM
  • Spindle Taper CAT 50
  • Spindle Motor 30 HP
  • Tools 30
  • Rapid Traverse Rates 540 IPM
  • Tool Change Time (T - T / C - C) 10.3 / 12.6 Seconds
  • Max Tool Diameter 4" / 10"
  • Max Tool Length 20"
  • Max Tool Weight 30 lbs.
  • Machine Dimensions (L x W x H) 173" x 143" x 119"
  • Machine Weight 31,840 lbs.
  • Spindle Torque 450 ft. lbs.
  • Table Size 64" x 36"

Product Features

  • HAAS CNC CONTROL
  • 12" TFT Color
  • 3.5" Floppy Disc Drive

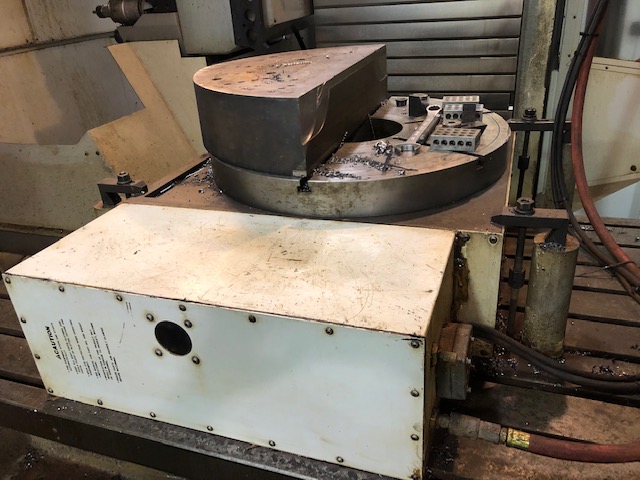

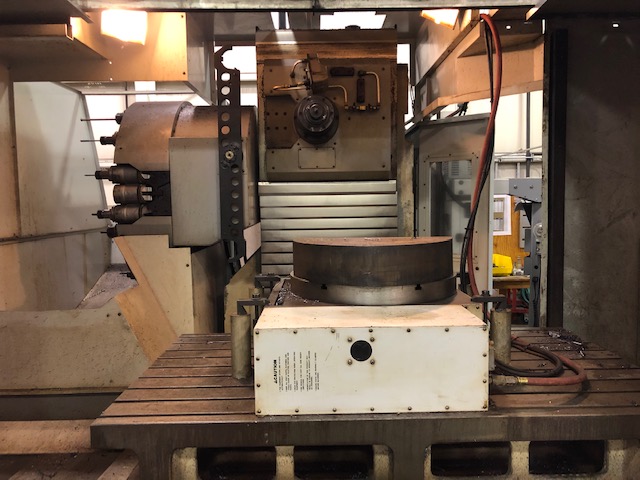

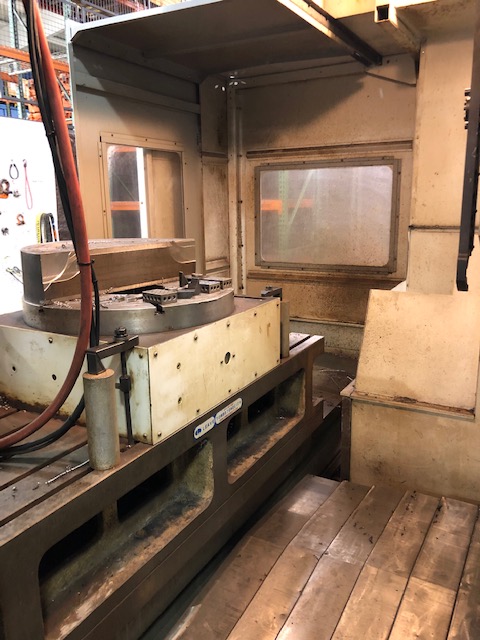

  • Built-In 30" Dia. Rotary Platter
  • Through Spindle Coolant (300 psi)

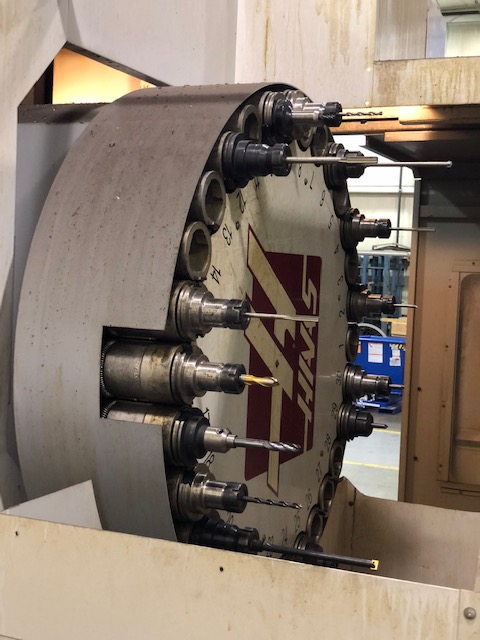

  • 30 Position Side Mount Tool Changer
  • Programmable Coolant Nozzle
  • 30 HP Two Speed Gear Box
  • Chip Auger
  • 16 MB Memory
  • Visual Quick Code
  • Rigid Tapping
  • Spindle Orientation
  • Coordinate Rotation & Scaling
  • User Macros
  • Fourth Axis Interface
  • Full Enclosure
  • Remote Jog Handle
  • Green Work Indicator Light
  • Manufacture Date January 2006
  • 21,884 Hours Servo Time
  • 6,204 Hours Motion Time
  • 6,880 Hours Spindle Time
