Special Item

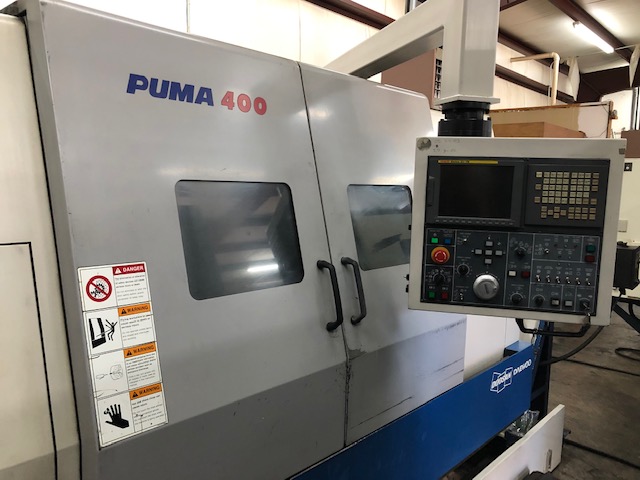

2006 DOOSAN PUMA 400B

Fanuc 21iTB, 4.6" Bar, 15" Chuck, 21.6" Max Dia, 41.3" Length, 12 Tools, 50HP, 2000 RPM, Tool Presetter, Tailstock, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 15"
  • Max Diameter Bar Capacity 4.63"
  • Max Swing Over Bed / Carriage 27.56" / 18.9"
  • Spindle Motor 50 / 37 HP
  • Spindle Speed 20 - 2000 RPM
  • Spindle Nose A2-11
  • Spindle Bore 5.2"

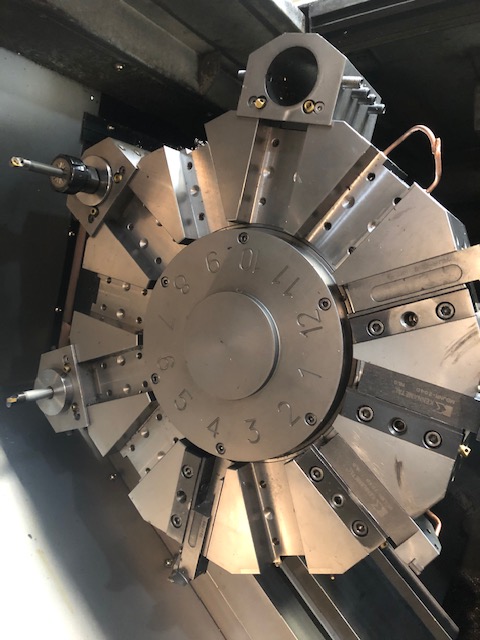

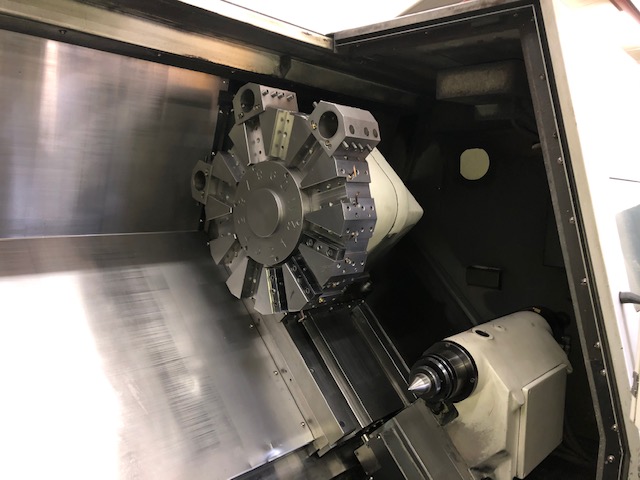

  • Tools 12
  • Rapid Traverse Rates (X / Z) 630 / 790 IPM
  • X-Axis Travel 14.3"
  • Z-Axis Travel 43.5"
  • Turret Index (Single Step) 0.25 Seconds
  • Machine Dimensions (L x W x H) 153" x 85" x 90"
  • Machine Weight 19,000 lbs.
  • Distance Between Centers 44.1"
  • Max Turning Diameter (Max / Std) 21.65" / 14.96"
  • Max Turning Length 41.34"
  • Spindle Torque 1836 ft. lbs.
  • Tailstock Taper MT#6

Product Features

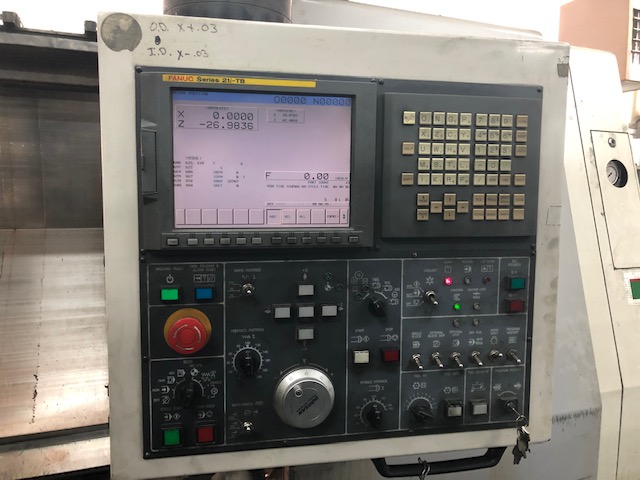

  • FANUC 21iTB CNC CONTROL
  • 10.4" Color LCD
  • PC/MCIA Interface

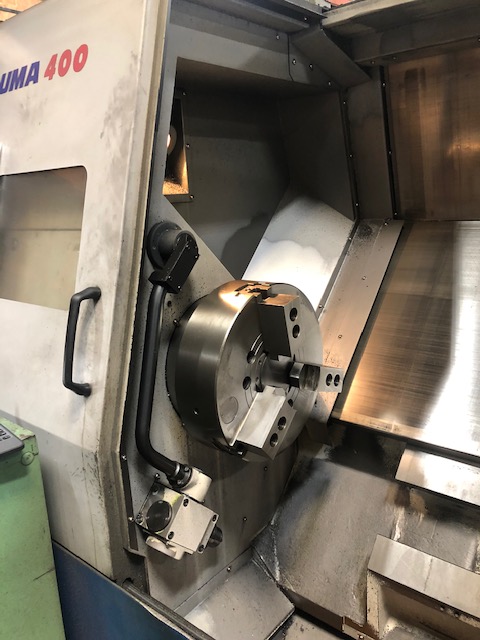

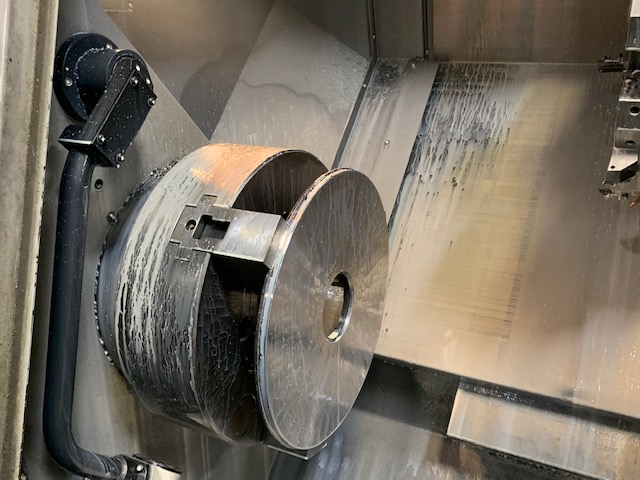

  • 15" Hydraulic Chuck
  • Programmable Tool Presetter

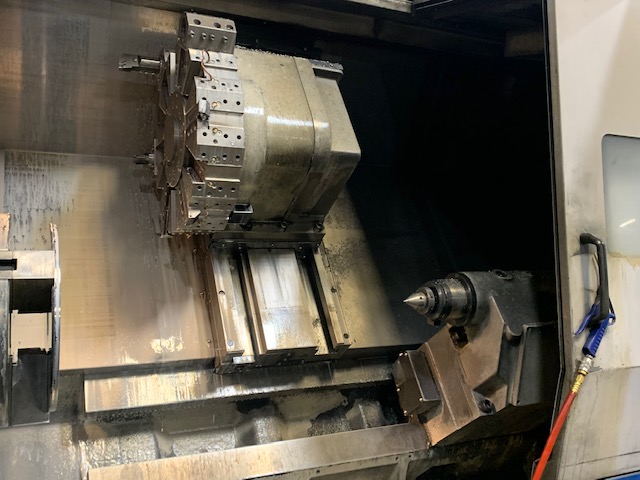

  • Programmable Tailstock Quill
  • Chip Conveyor (Side Exit)
  • Three Color Tower Light
  • Two Gear Range Headstock
  • Slant Bed Box Way Construction
  • Manufacture Date July 2006
