Special Item

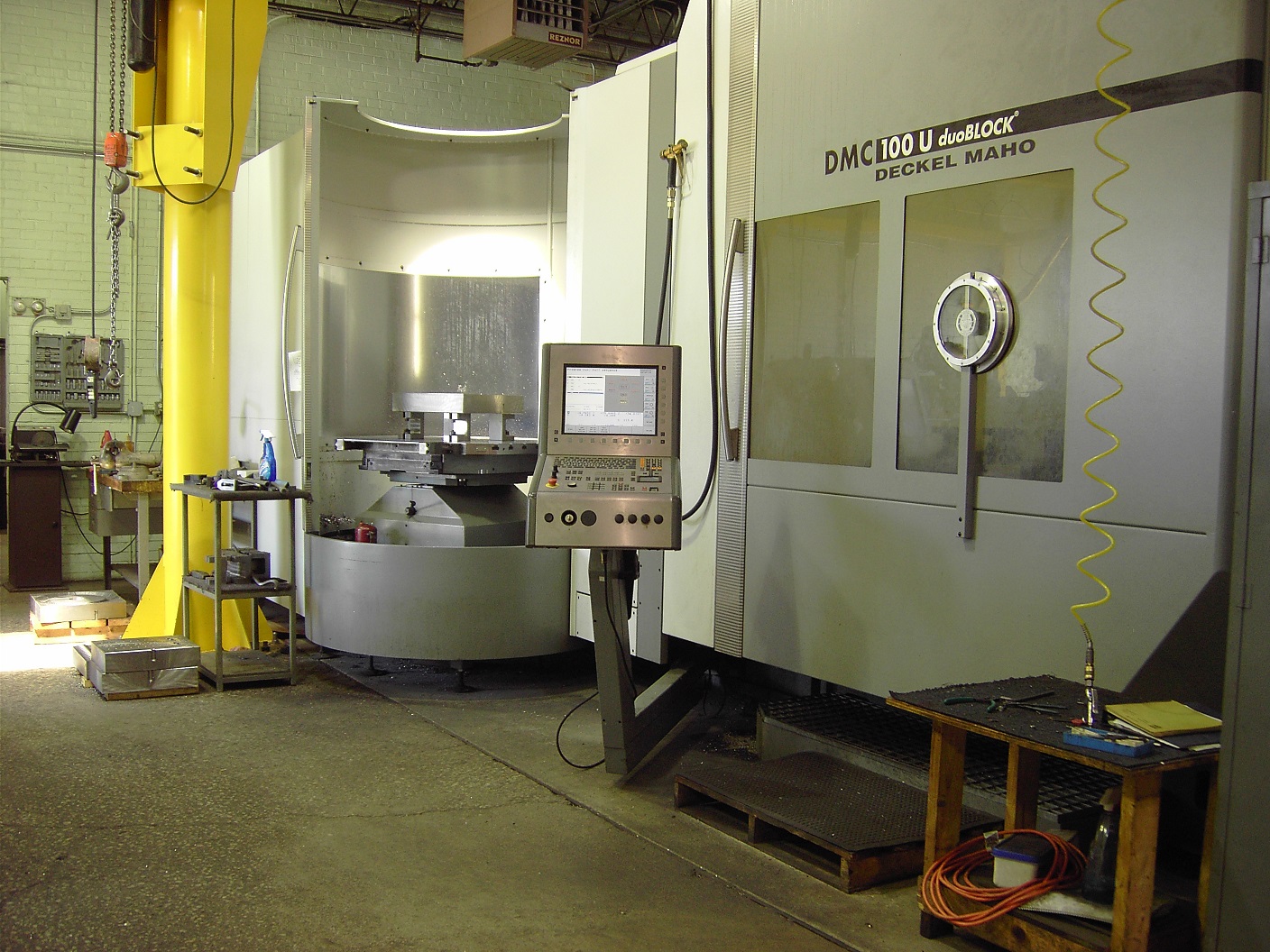

2005 DMG DMC-100U duoBLOCK 5-Axis

Heidenhain iTNC530, 39.39.39", 18,000 RPM, 120 Tools, #40, 37HP, 5-Axis, 5 Plts, CTS, Probes
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 39.4"
  • Y-Axis 39.4"
  • Z-Axis 39.4"
  • A-Axis Index (Table) .001 Degrees
  • B-Axis Tilt (Spindle) 0 - 110 Degrees
  • C-Axis (Table Index) 360 Degrees
  • Spindle Speed 18,000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 37.5 / 25 HP
  • Tools 120
  • Rapid Traverse Rates 2362 IPM
  • Rapid Traverse Rates 3543 IPM
  • Machine Weight 76,000 LBS
  • Feed Rate 1000 IPM

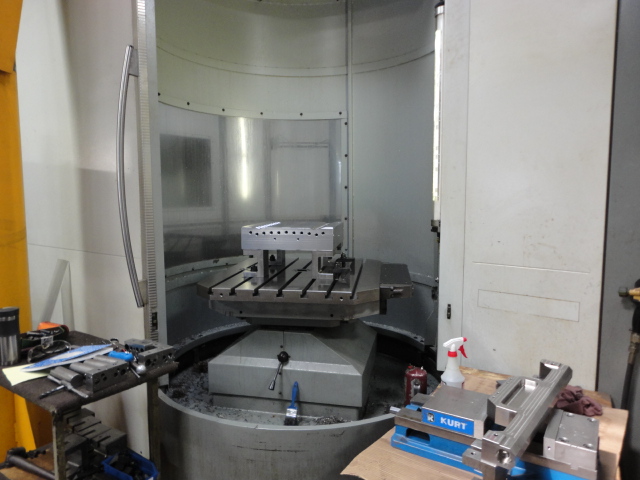

  • Pallet Size (5) 31.5" x 39.4"

Product Features

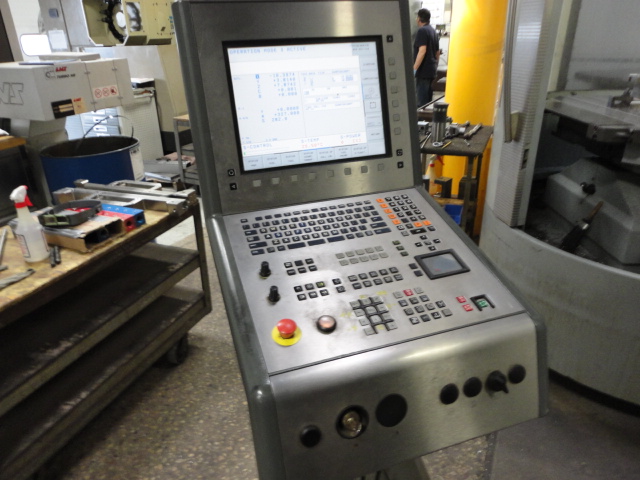

  • HEIDENHAIN iTNC530 CNC CONTROL
  • 5-Axis Machining Capability
  • 15" Color TFT
  • Fourth Axis Rotary Table
  • B-Axis Spindle Tilt 0 - 110 Degrees
  • (4) Station Auto Pallet Changer
  • CAT 40
  • 18,000 RPM Spindle
  • Coolant Thru Spindle (580 psi)
  • 120 Tool Magazine
  • Blum Laser Tool Measurement System
  • Heidenhain Infrared Measuring Probe
  • Visiport Window

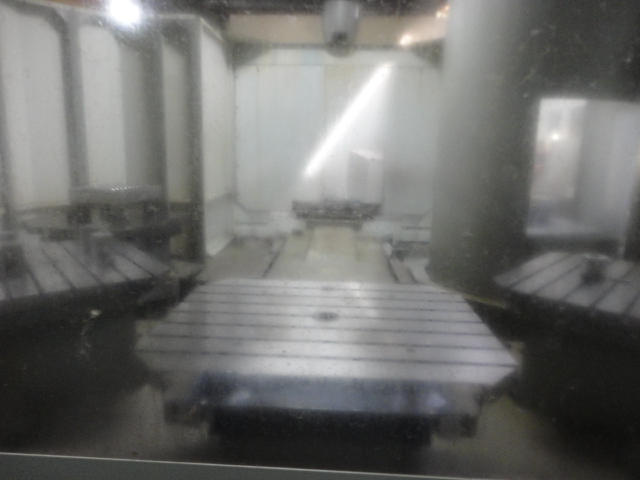

  • (5) 800mm x 1000mm Pallets
  • Chip Conveyor
  • 3D Contouring
  • Visual Programming
  • Coolant Wash System
  • Chip Auger
  • Remote Jog Handle
