Special Item

2006 BROTHER TC-S2C-0

CNC-B00, 28.16.12", 10000 RPM, 21 Tools, BT-30, 13.5 HP, Rigid Tapping, Remote Jog Handle
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 27.6"
  • Y-Axis 15.7"
  • Z-Axis 11.8"
  • Table Size 31.5" x 12.6"
  • Spindle Speed 10 - 10,000 RPM
  • Spindle Taper BT30
  • Spindle Motor 13.5 / 9 HP AC
  • Tools 21
  • Table Load Capacity 551 lbs.
  • Rapid Traverse Rates (X Y & Z)
  • Max Tapping Speed 6000 RPM
  • Max Tool Diameter 6.3" / 9.8"
  • Max Tool Length 9.8"
  • Max Tool Weight 6.6 lbs.
  • Machine Dimensions (L x W x H) 111.4" x 83.2" x 102.7"
  • Machine Weight 5291 lbs.
  • Spindle Nose to Table Top 7.1" - 18.9"
  • Tool Change Time (T - T / C - C) 0.9 / 1.7 Seconds

Product Features

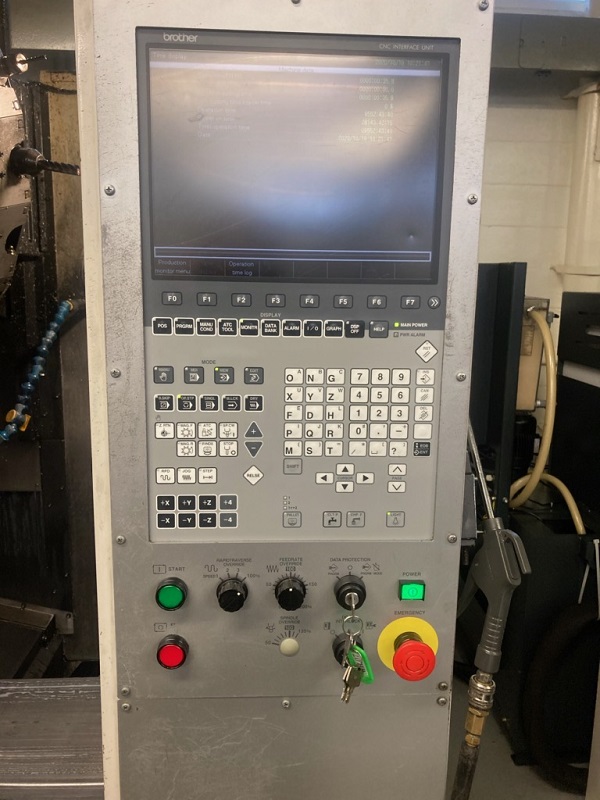

  • BROTHER CNC-B00 Control
  • 12" Color LCD
  • Conversational & G-Code Programming
  • 21 Position Drum Turret
  • 10000 RPM Spindle Speed
  • Rigid Tapping
  • Helical Interpolation
  • Remote Jog Handle
  • Worklight
  • Manufacture Date April 2006
  • 28,121 Power On Time
  • 9549 Operation Time
