Special Item

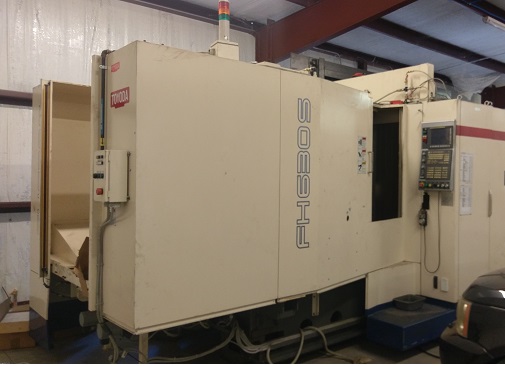

2005 TOYODA FH-630S

FANUC 31i, 24.8" pallets, 39.32.33" , 15,000RPM, 120 Tools, 1 Degree, TSC, Chip
Talk to a representative today!
(803) 548-8000

Product Details

  • Pallet Change Time 12.0 Seconds
  • Pallet Load Capacity 2866 lbs.

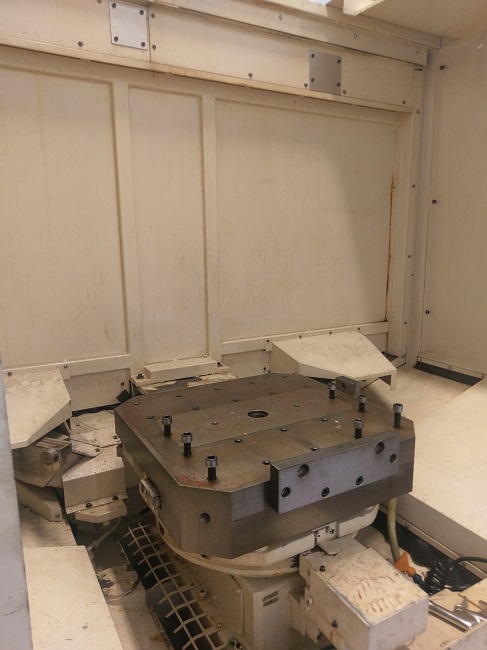

  • Pallet Size 24.8" (2)
  • X-Axis 39.37"
  • Y-Axis 31.5"
  • Z-Axis 33.46"
  • Pallet Index Time (0-90 Degrees) 2.6 Seconds
  • Pallet Index 1 Degree

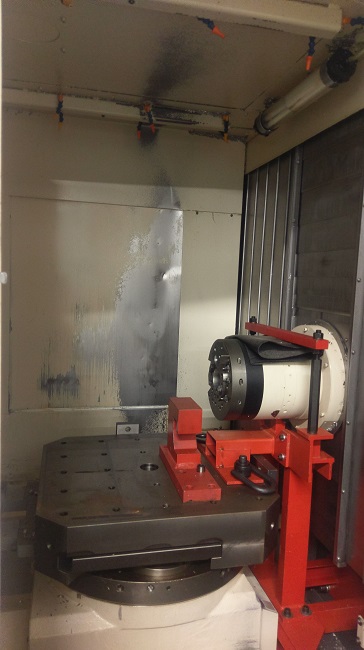

  • Spindle Speed 50 - 15,000
  • Spindle Taper Cat 50
  • Spindle Motor 30 / 25 HP
  • Spindle Center to Table Top 1.97" - 35.43"
  • Spindle Nose to Table Center 6.9" - 36.42"
  • Tools 120
  • Rapid Traverse Rates (X Y & Z) 2362 IPM
  • Tool Change Time (T - T / C - C) 2 / 5.5 Seconds
  • Max Tool Diameter 2.95" / 7.1"
  • Max Tool Length 19.7"
  • Max Tool Weight 59.5 lbs.
  • Max Workpiece Dia / Height 24.8" / 39"
  • Machine Weight 35,000
  • Spindle Torque 123 ft. lbs.

Product Features

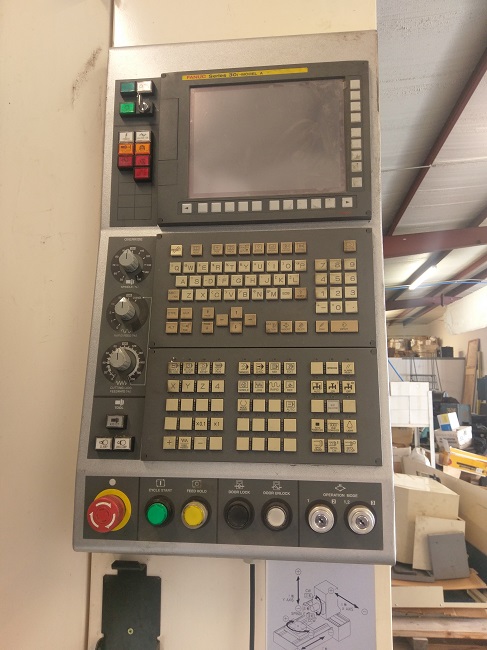

  • FANUC 31iMA CNC CONTROL
  • 10.4" Color LCD
  • PC/MCIA Interface
  • Fourth Axis Rotary Table
  • 120 Tool Matrix
  • Through Spindle Coolant
  • Remote Manual Pulse Generator
  • Rigid Tapping
  • Turbo Chip Conveyor
  • Dual Ballscrews on Y & Z Axes
  • Three Color Tower Light
  • Overhead Shower Coolant
  • 49,350 Power On Time
  • 2,171 Run Time
  • 6,215 Cutting Time
