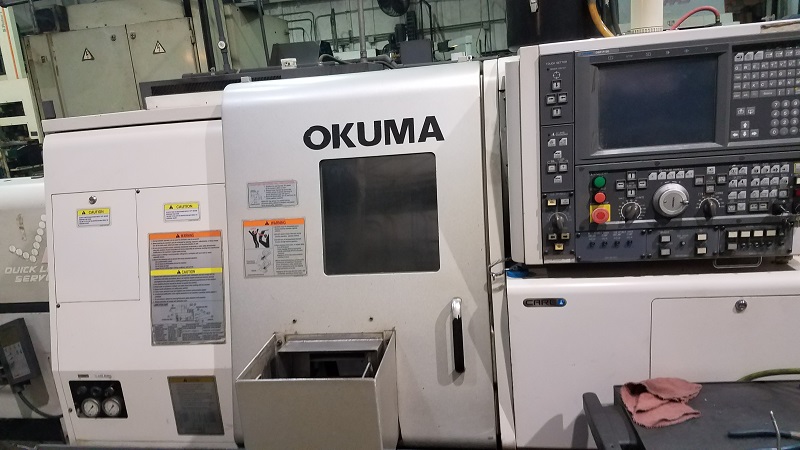

2006 OKUMA CAPTAIN L370MW

OSP-P100, 2.44" Bar, Collet Chucks, 8" Chk, 20HP, 3800 RPM, 12 Tools, Live Tooling, APC, Barfeed, Chip
Talk to a representative today!
(803) 548-8000

Product Details

  • Max Diameter Bar Capacity 2.44"
  • Max Swing Over Bed / Carriage 20.8" / 16.54"
  • Max Machining Length 20.47"
  • Spindle Speed 3800 RPM
  • Spindle Nose A2-6
  • Spindle Bore 2.70"

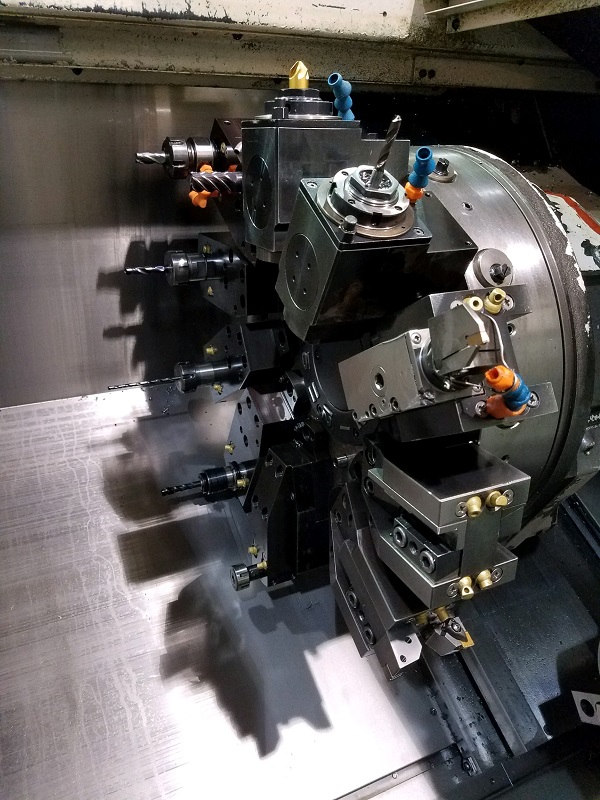

  • Tools 12 (All Live)
  • Milling Motor 7.5 / 4.5 HP
  • Milling Speed 45 - 4500 RPM
  • Sub Spindle Chuck Size 8"
  • Sub Spindle Motor 10 HP
  • Sub Spindle Speed 6000 RPM
  • Rapid Traverse Rates (X / Z) 984 / 787 IPM
  • X-Axis Travel 10.23"
  • Z-Axis Travel 20.47"
  • C-Axis Index .001 Degrees
  • Turret Index (Single Step / Full) 0.1 / 1.3 Seconds
  • Machine Dimensions (L x W x H) 107" x 70.5" x 86"
  • Machine Weight 9900 lbs.
  • Max Turning Diameter 14.56"
  • Spindle Torque 304.5 ft. lbs.

Product Features

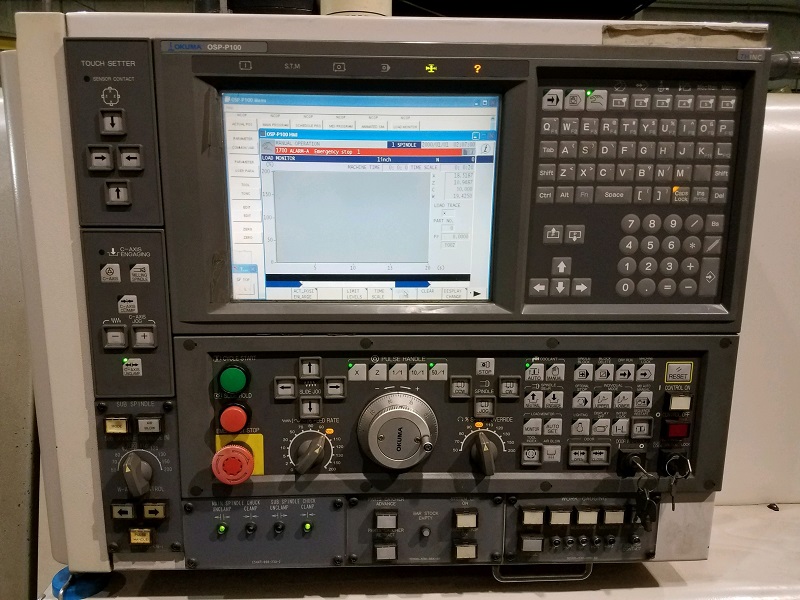

  • OKUMA OSP-P100 CNC CONTROL
  • 10.4" Color LCD
  • 3.5" Floppy Disc Drive
  • C-Axis Milling Capability
  • Programmable Sub Spindle

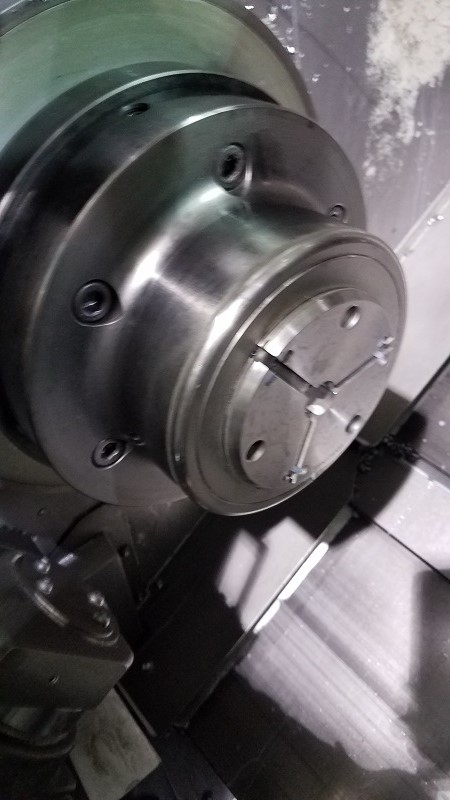

  • Collet Chuck System on Main Spindle

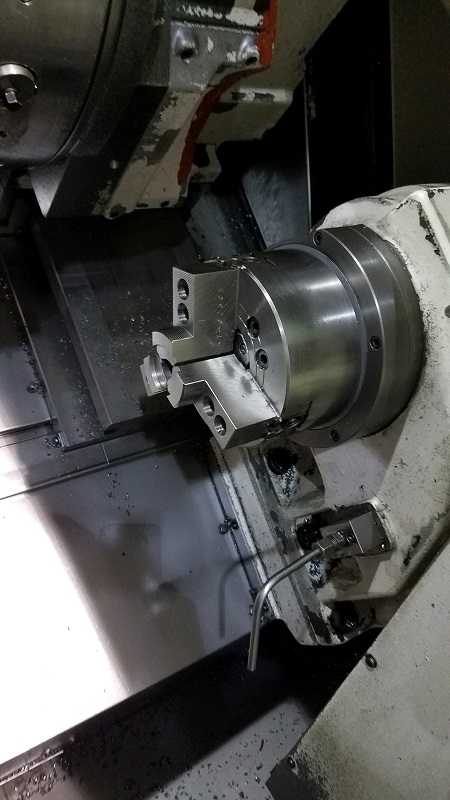

  • 8" Hydraulic Chuck on Sub Spindle
  • Renishaw Probe System

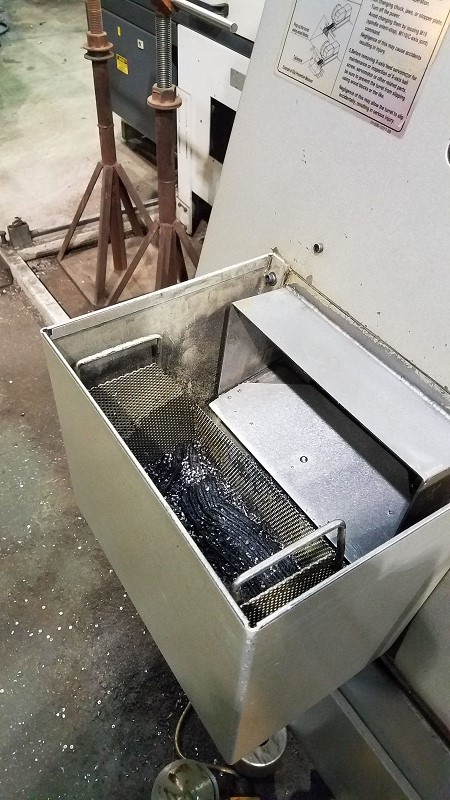

  • Automatic Parts Catcher
  • Tool Presetter
  • Automatic Tool Life Management
  • DNC-T3
  • OKUMA MAC MAN
  • LNS Quick Load Servo Barfeed
  • Chip Conveyor (Rear Exit)
