Special Item

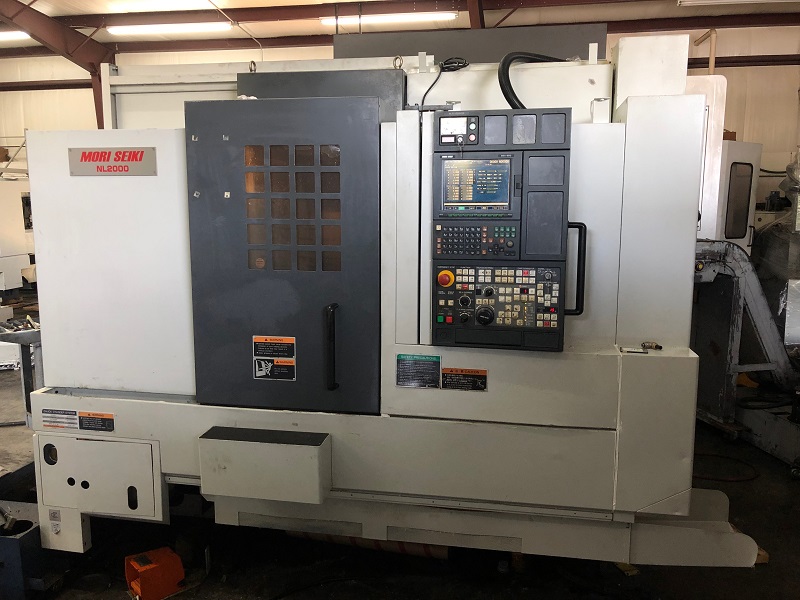

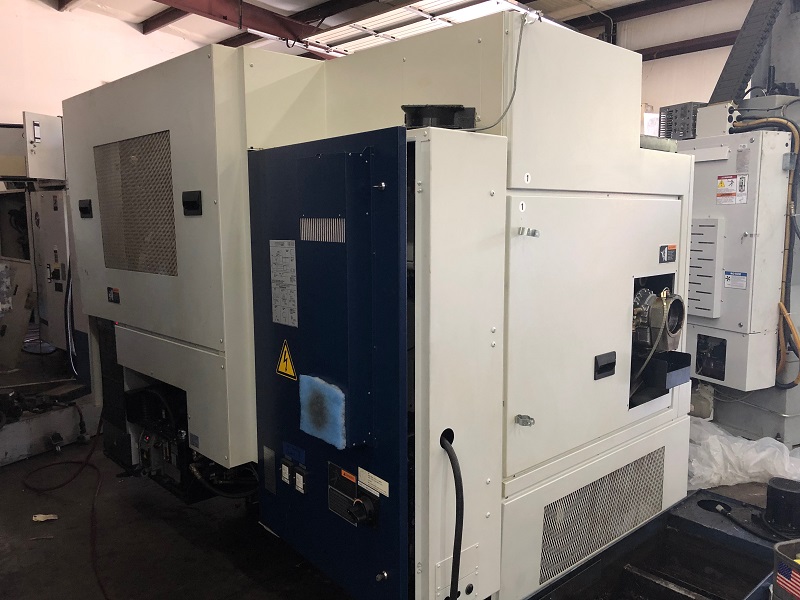

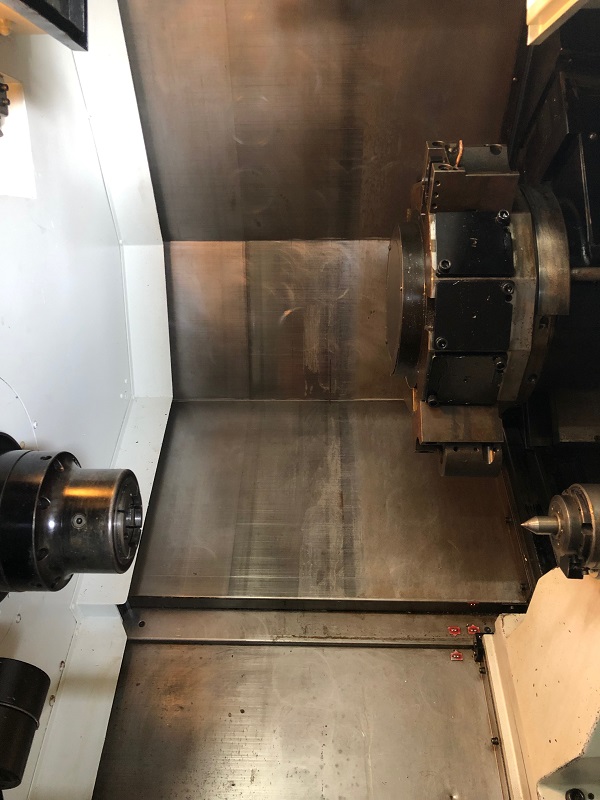

2005 MORI SEIKI NL-2000Y
MSX-850, 2.5" Bar, 8" Chuck, 12 Tools, 25 HP, 5000 RPM, Y-Axis, Tailstock, Tool Presetter
Talk to a representative today!
(803) 548-8000
(803) 548-8000
Product Details
-
Chuck Size 8"
-
Max Diameter Bar Capacity 2.5"
-
Max Swing Over Bed / Carriage / Cover 36.4" / 29.7" / 22.8"
-
Max Machining Length 20.1"
-
Spindle Motor 24.8 HP
-
Spindle Speed 5000 RPM
-
Spindle Nose A2-6
-
Spindle Bore 2.9"
-

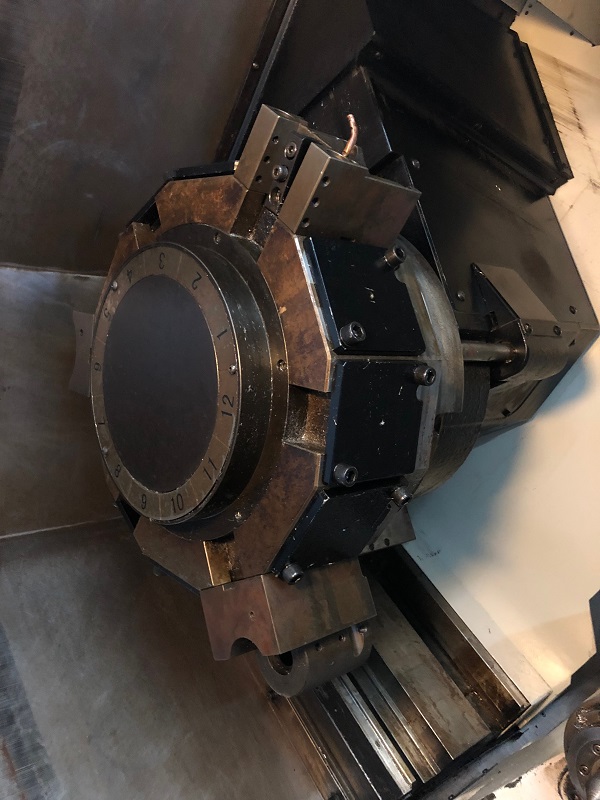

Tools 12 (All Live)
-
Milling Motor 7.5 HP
-
Milling Speed 6000 RPM
-
Rapid Traverse Rates 1181 IPM
-
X-Axis Travel 10.2"
-
Z-Axis Travel 23.2"
-
Y-Axis Travel + / - 2.0"
-
C-Axis Index .001 Degrees
-
Turret Index (Single Step) 0.25 Seconds
-
Machine Dimensions (L x W x H) 106.1" x 75.7" x 83.5"
-
Machine Weight 12,760 lbs.
-
Max Turning Diameter (Max / Std) 14" / 10.8"
-
Tailstock Taper MT#4
Product Features

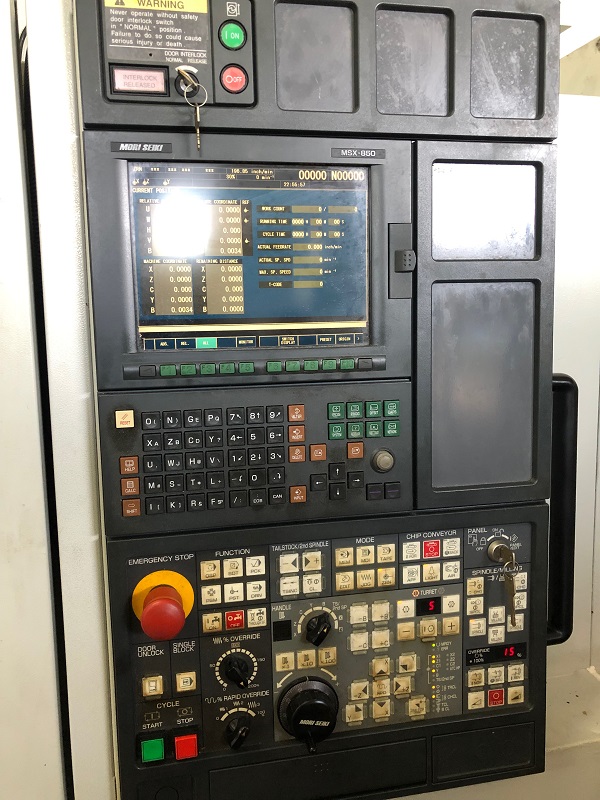

- MORIC MSX-850 (MITSUBISHI) CNC CONTROL
- 10.4" Color TFT
- CAPPS Conversational Programming
- PC/MCIA Interface
- C & Y-Axis Milling Capability

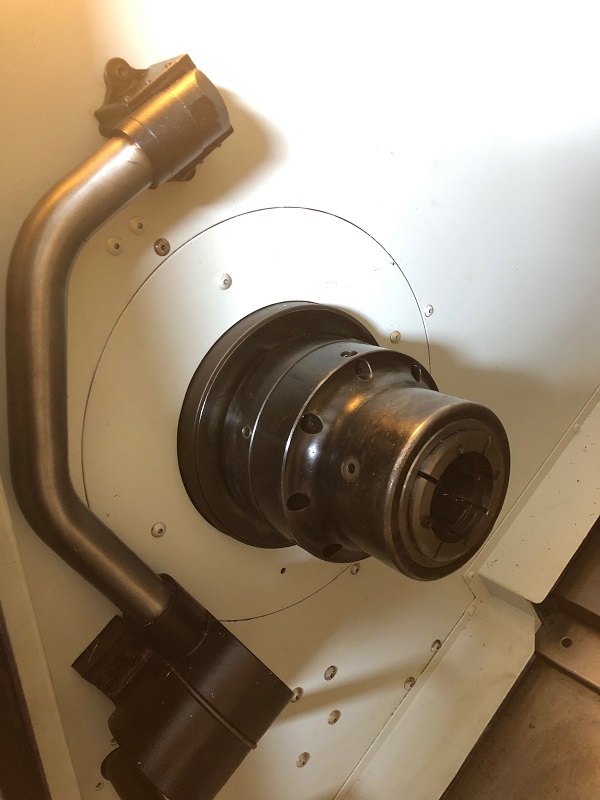

- Collet Chuck
- Servo Driven Tailstock
- Automatic Tool Presetter
- Auto Parts Catcher
- (2) Turning Holders
- (1) Boring Bar Holder
- Heavy Duty Box Way Construction
- Manufacture Date April 2005
