Special Item

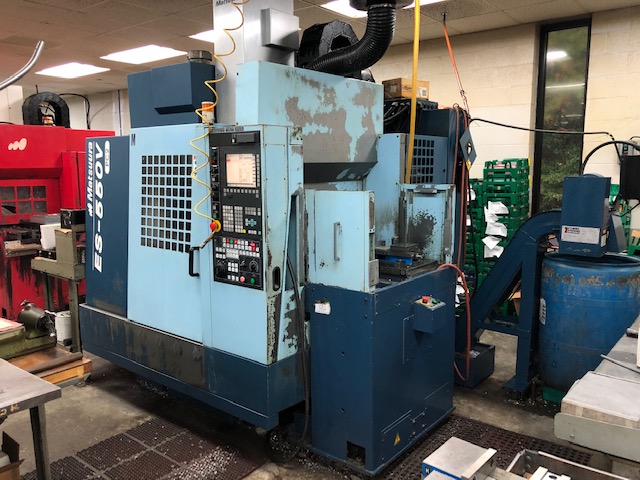

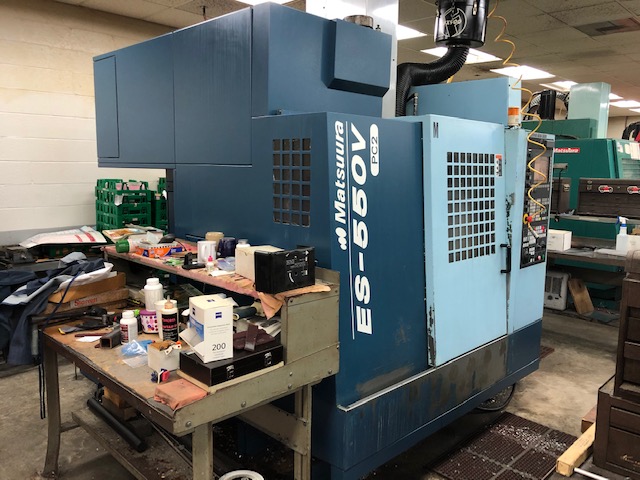

2005 MATSUURA ES-550V PC2

Siemens 840D, 22.16.18", 15000 RPM, 30 SMTC, 10 HP, BT 40, Auto Two Pallet Changer, TSC, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 21.65"
  • Y-Axis 16.10"
  • Z-Axis 18.10"
  • Table Size 23.6" x 14.9" (2)
  • Spindle Speed 15,000 RPM
  • Spindle Motor 10 HP
  • Tools 30
  • Table Load Capacity 550 lbs.
  • Rapid Traverse Rates 1181 IPM
  • Max Tool Diameter 3.7" / 6.9"
  • Max Tool Length 11.8"
  • Max Tool Weight 13.2 lbs.
  • Spindle Nose to Table Top 5.9" - 24"
  • Tool Change Time (T - T / C - C) 1.2 / 3.2 Seconds

Product Features

  • Seimens 840D CNC Control
  • 10.4" Color LCD

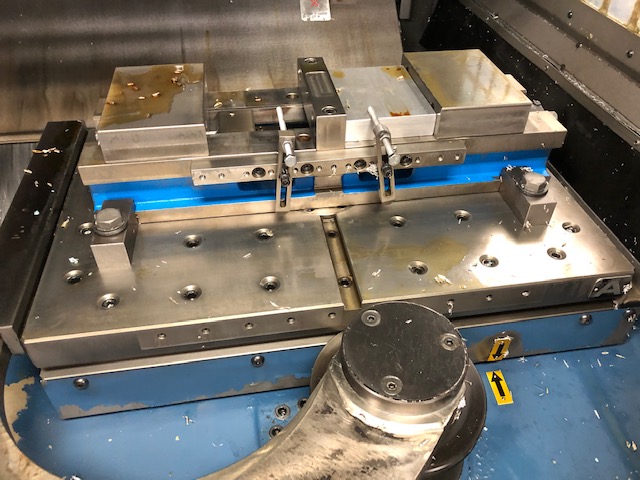

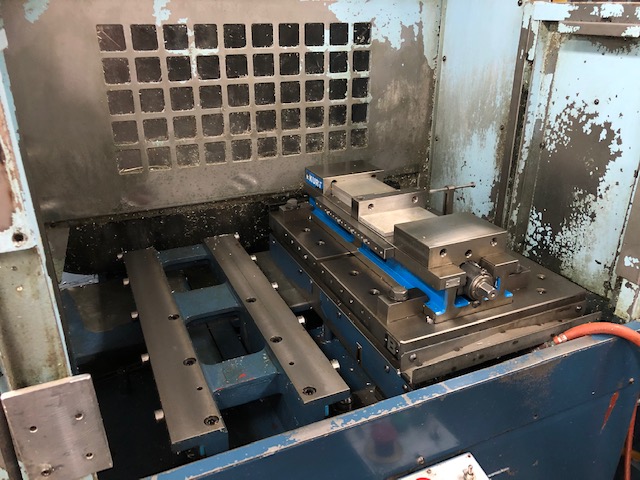

  • Auto Two Pallet Changer
  • 30 Position Side Mount Tool Changer
  • 15000 RPM Spindle Speed
  • Through Spindle Coolant (Approx 200 psi)
  • Turbo Chip Conveyor (Right Rear Exit)
  • Rigid Tapping
  • Manufacture Date April 2005

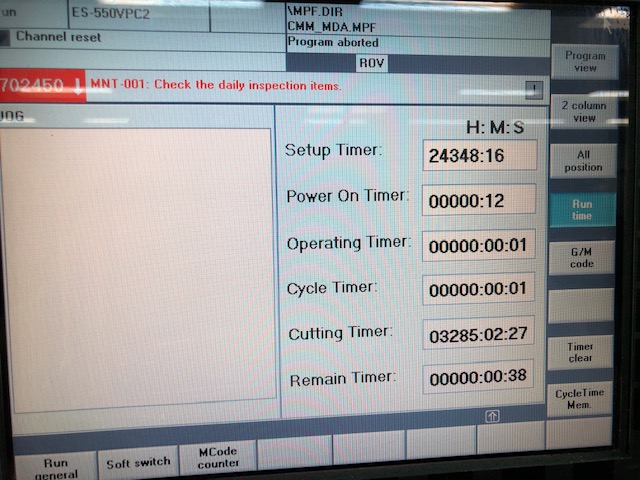

  • 24,348 Power On Time
  • 3285 Cutting Time
