2005 MAKINO A-51 (#2)

Fanuc 18iM, 15.7" Plt, 22.22.24", Fourth Axis Rotary Table, 60 Tools, #40, 12k RPM, 1000 PSI CTS, Helical, Chip
Talk to a representative today!
(803) 548-8000

Product Details

  • Pallet Load Capacity 880 lbs.
  • Pallet Size 15.74" (2)
  • X-Axis 22.0"
  • Y-Axis 22.0"
  • Z-Axis 23.6"
  • Pallet Index .001 Degree
  • Spindle Speed 12,000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 25 / 20 / 15 HP
  • Tools 60
  • Rapid Traverse Rates 1969 IPM
  • Tool Change Time (T - T / C - C) 0.9 / 2.2 Seconds
  • Max Tool Diameter 6.7"
  • Max Tool Length 14.2"
  • Max Tool Weight 26.5 lbs.
  • Max Workpiece Size (Dia / Height) 24.8" / 35.4"
  • Machine Dimensions (L x W x H) 135" x 98" x 106"
  • Machine Weight 17,000
  • Spindle Torque 122.4 ft. lbs.

Product Features

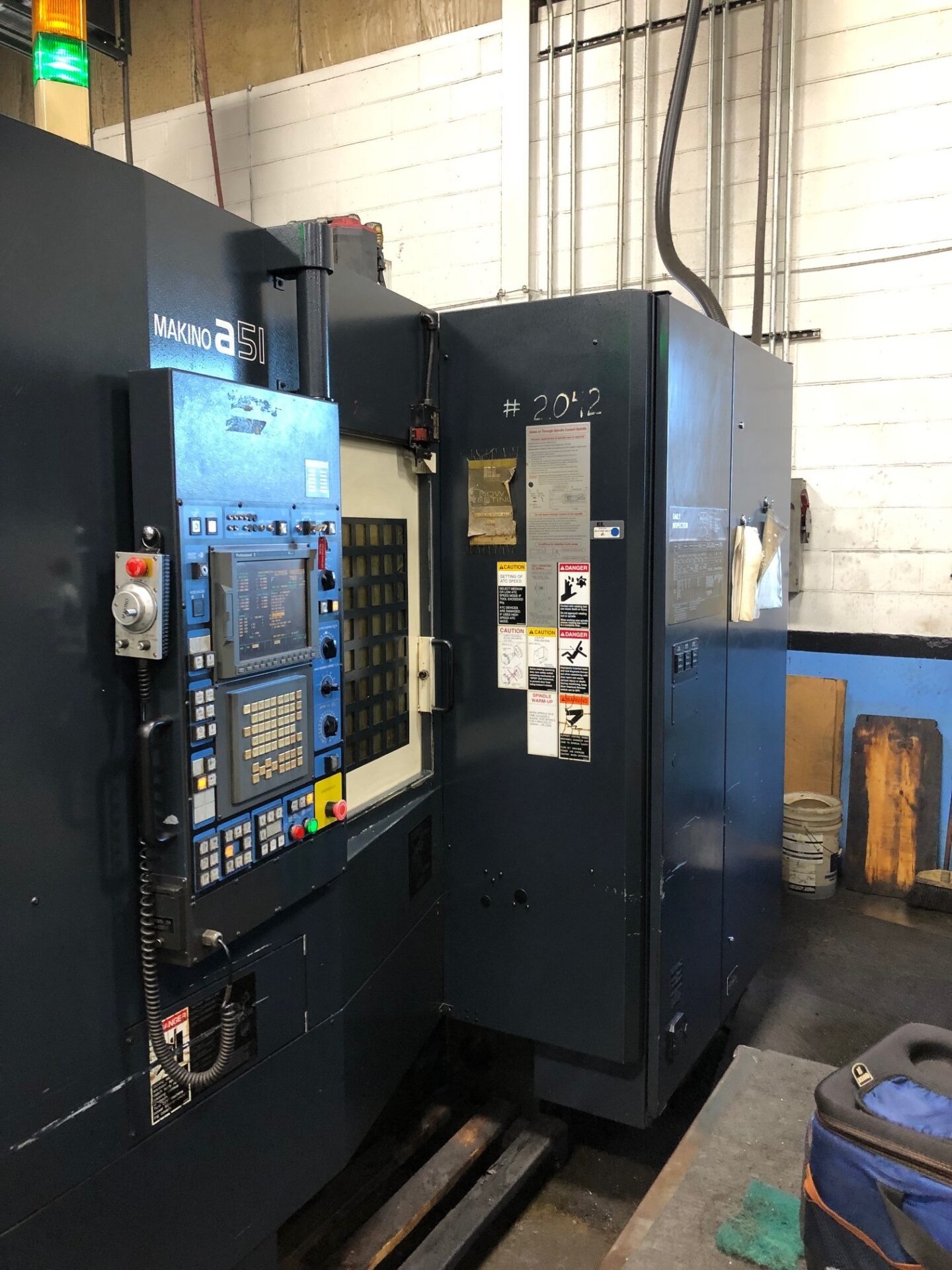

  • PROFESSIONAL 3 (FANUC 18iM) CNC CONTROL
  • 10.4" Color LCD
  • 12,000 RPM High Power Spindle
  • 60 Tool Magazine
  • Fourth Axis Rotary Table
  • Coolant Thru Spindle (1000 psi)
  • Broken Tool Sensor Outside Machining Area
  • Center Chip Trough
  • Chip Conveyor (Right Rear Exit)
  • Extended Memory
  • Air Dryer
  • PC/MCIA Interface
  • Helical Interpolation
  • 48 Sets Work Coordinates
  • 26,135 Power On Hours
  • 19,938 Auto On Hours
  • 14,838 Spindle On Hours
