Special Item

2005 KITAMURA HX-400iF 5-AXIS

Fanuc 16iMB, 15.7" Plt, 29.24.24", 13000 RPM, 50 Tools, 20 HP, Cat 40, 5-Axis, TSC 225 psi, Scale Feedback, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Pallet Load Capacity 880 lbs.
  • Pallet Size 15.7" (2)
  • X-Axis Travel 28.9"
  • Y-Axis 24.0"
  • Z-Axis Travel 24"
  • Pallet Index .001 Degrees
  • Spindle Speed 13,000
  • Spindle Taper Cat 40 Big Plus
  • Spindle Motor 20 HP AC
  • Spindle Nose to Table Center 5.9" - 29.9"
  • Tools 50
  • Rapid Traverse Rates 1969 IPM
  • Tool Change Time (T - T) 1.7 Seconds
  • Max Cutting Feedrate 1968 IPM
  • Max Tool Diameter 3.74" / 5.9"
  • Max Tool Weight 22 lbs.
  • Max Workpiece Size (Dia/Height) 27.5" / 37.8"

Product Features

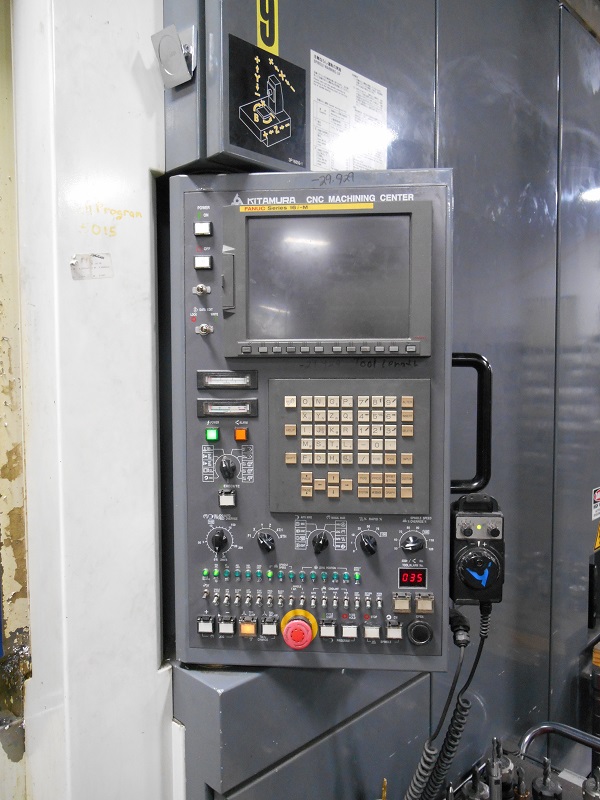

  • Fanuc 16iMB CNC Control
  • 10.4" Color LCD
  • Fourth Axis Rotary Table

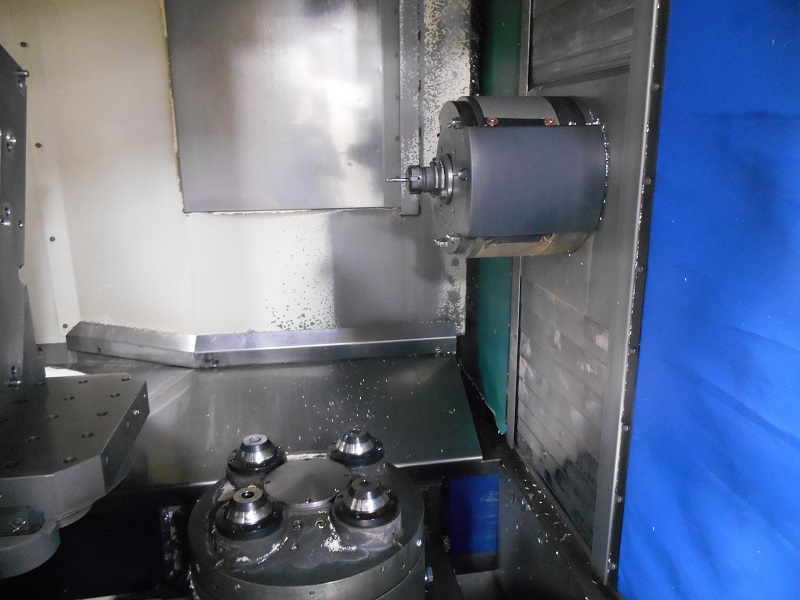

  • 10" Tsudakoma RB-250K Rotary Table Mounted Vertically on Pallet
  • Through Spindle Coolant (225 psi)
  • 13000 RPM Two Step Geared Dual Contact Spindle
  • Automatic Two Pallet Changer
  • 50 Tool Magazine

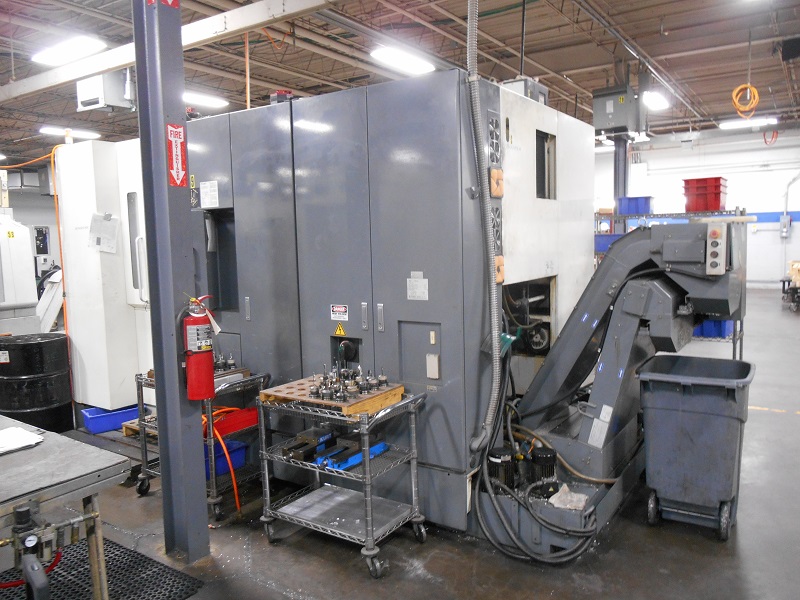

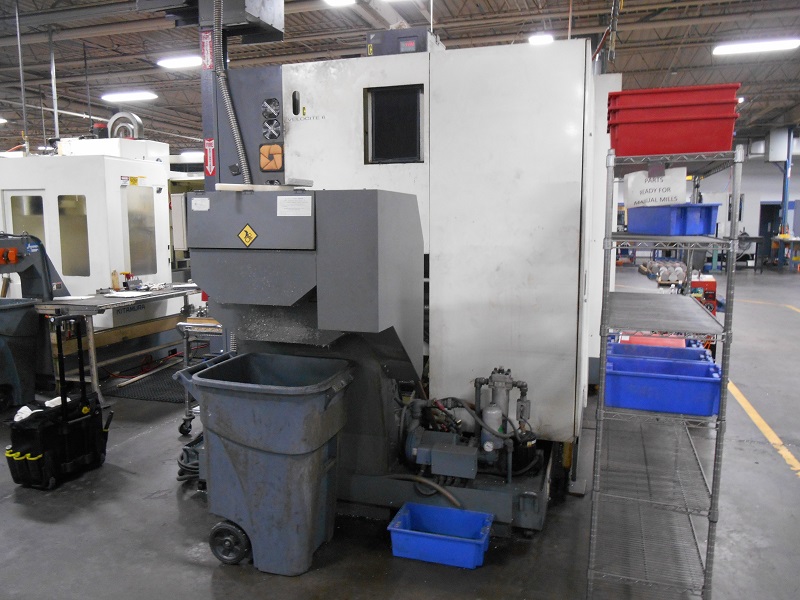

  • Bunri Drag Belt Style Conveyor & Filtration System (Rear Discharge)
  • Overhead Shower Coolant
  • Base Coolant Wash
  • Linear Scale Feedback on X, Y, Z and Fourth Axes
  • Remote Jog Handle
  • A1 Nano Control
  • IAC System 1
  • 16 Million Pulse Encoder System
  • Spindle Chiller Unit
  • Ballscrew Cooling System
  • Cycle Finish Lamp
  • Additional M-Functions (4 Sets)
  • 99 Sets of Tool Offsets
  • 200 Registerable Programs
  • User Macro B with 82 Variables
  • HPCC by RISC Control
  • NURBS Interpolation
  • Helical Interpolation
  • 1280 M Memory
  • Automatic Pallet Recognition
  • 16 MB Data Server
  • Tool Life Management
  • Manufacture Date January 2003
  • Installed in 2005
  • 46,195 Power On Time
  • 12,300 Operating Time
  • 15,593 Cutting Time
