Special Item

2005 HAAS VF-2YT

30.20.20", 7500 RPM, #40, 20HP, 20 Tools, Fourth Axis Interface, Auger
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 30"
  • Y-Axis 20"
  • Z-Axis 20"
  • Table Size 18" x 36"
  • Spindle Speed 7500 RPM
  • Spindle Motor 20 HP
  • Tools 20
  • Table Load Capacity 3000 lbs.
  • Rapid Traverse Rates 1000 IPM
  • Max Tool Diameter 3.5"
  • Max Tool Weight 12 lbs.
  • Machine Dimensions (L x W x H) 117" x 102" x 108"
  • Machine Weight 7500 lbs.
  • Spindle Nose to Table Top 4" - 24"
  • Spindle Torque 75 ft. lbs.
  • Tool Change Time (T - T / C - C) 4.2 / 4.5 Seconds

Product Features

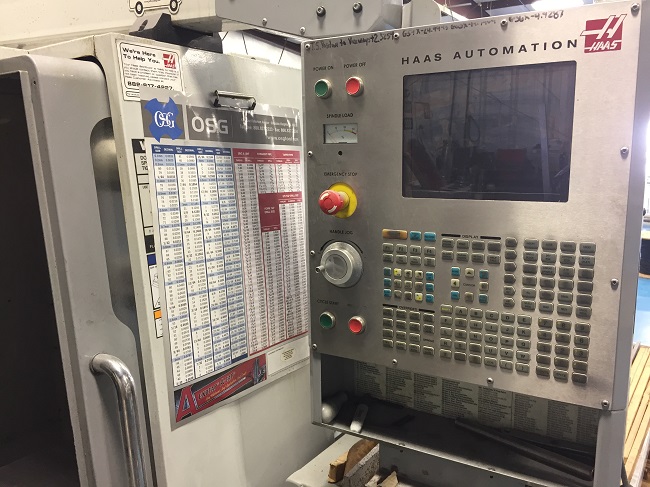

  • HAAS CNC CONTROL
  • 15" Color LCD
  • High Speed Machining
  • Fourth Axis Interface (Brushless)
  • Programmable Coolant Nozzles
  • Coordinate Rotation and Scaling
  • Spindle Orientation
  • 1 MB Memory
  • Chip Auger
  • Green Indicator Light
  • Mfg Date August 2005
