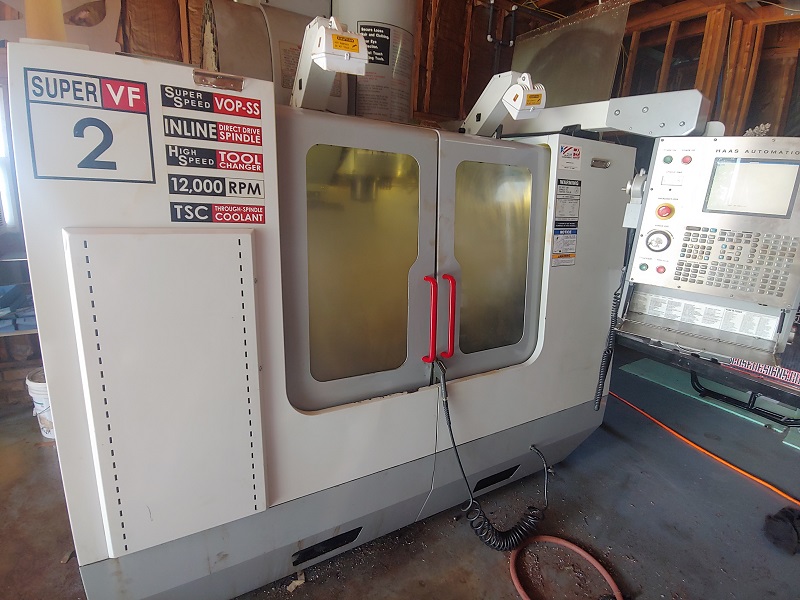

2005 HAAS VF-2SS

30.16.20", 12,000 RPM, 24 SMTC, Cat 40, 30 HP, TSC 1000 psi, Probes, Fifth Axis Interface, Auger, Loaded with Options
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 30"
  • Y-Axis 16"
  • Z-Axis 20"
  • Table Size 36 x 14"
  • Spindle Taper CAT 40
  • Spindle Motor 30 HP
  • Tools 24
  • Table Load Capacity 1500 lbs.
  • Rapid Traverse Rates 1400 IPM
  • Max Tool Diameter 3"
  • Max Tool Length 9"
  • Max Tool Weight 12 lbs.
  • Machine Dimensions (L x W x H) 88" x 92" x 118"
  • Machine Weight 8000 lbs.
  • Spindle Nose to Table Top 4" - 24"
  • Tool Change Time (T - T / C - C) 1.6 / 2.2 Seconds

Product Features

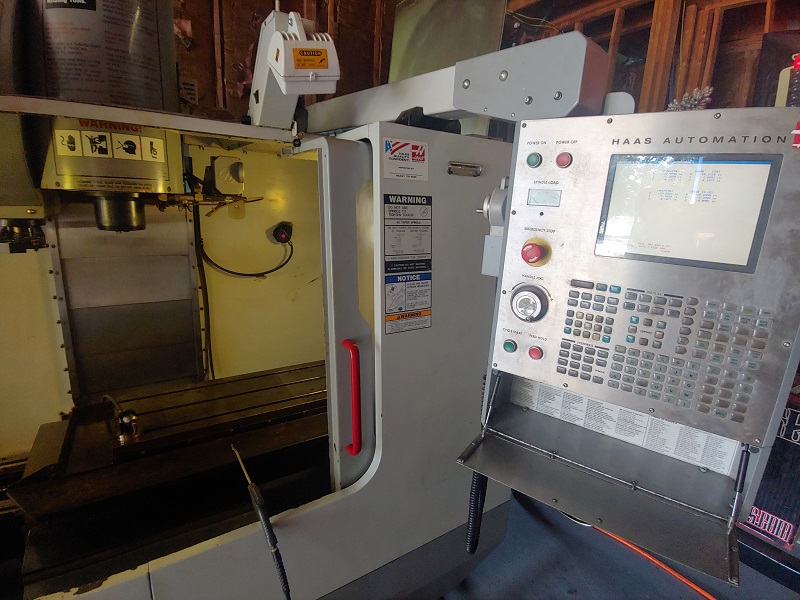

  • HAAS CNC Control
  • 10.4" Color LCD
  • USB & Ethernet
  • Through Spindle Coolant (1000 psi)
  • Fourth & Fifth Axis Interface
  • Wireless Intuitive Probing System

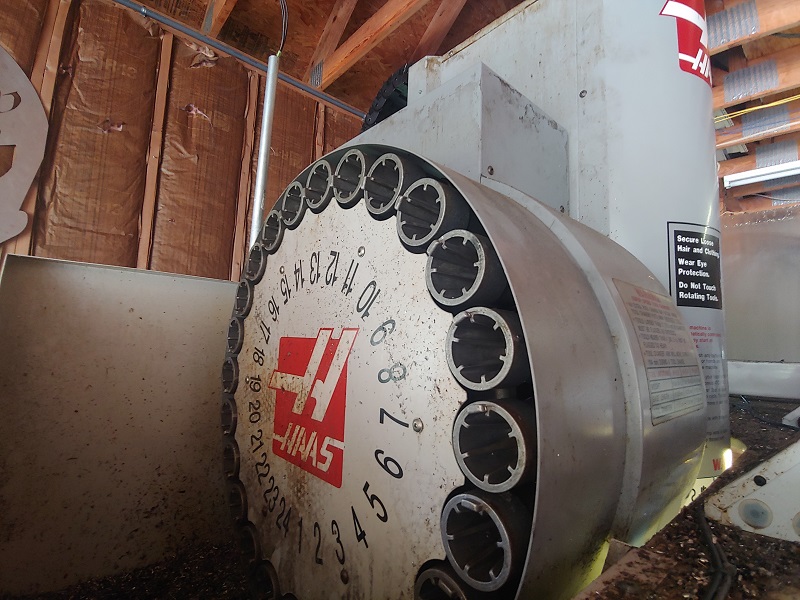

  • 24 Position Side Mount Tool Changer
  • High Speed Machining
  • 16 MB Memory
  • Programmable Coolant Nozzles
  • Chip Auger
  • Coordinate Rotation & Scaling
  • User Definable Macros
  • Remote Jog Handle
  • Spindle Orientation
  • Second Home Position
  • High Intensity Lighting
  • (8) Additional M-Functions
  • Auto Air Gun
  • Auxiliary Coolant Filter
  • Manufacture Date March 2005
