< Back to Lathes
Special Item

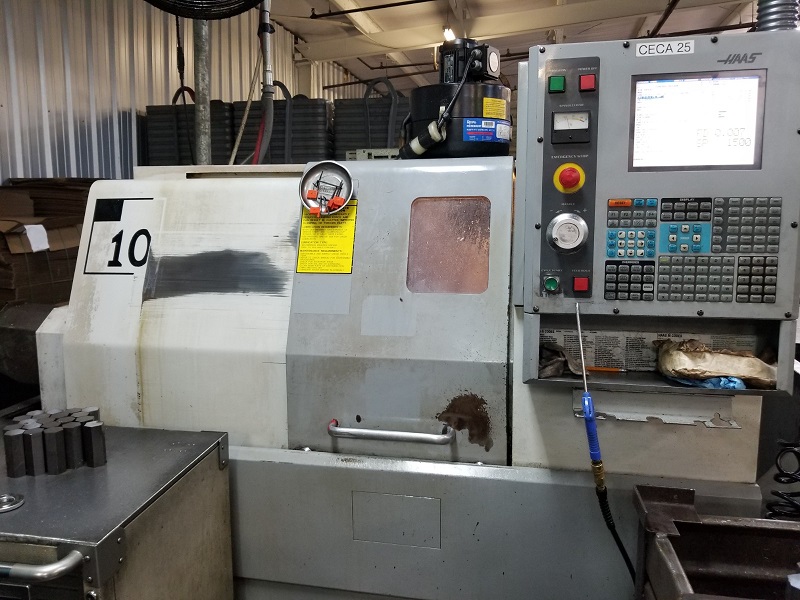

2005 HAAS SL-10

1.75" Bar, 5c Collet Chuck, 11" Max Dia, 14" Length, 15HP, 6000 RPM, 12 Tools, Collet Chuck, Chucker
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 5C
  • Max Diameter Bar Capacity 1.75"
  • Max Swing Over Bed / Cross Slide 16.25" / 8"
  • Max Machining Length 14"
  • Spindle Motor 15 HP
  • Spindle Speed 100 - 6000 RPM
  • Spindle Nose A2-5
  • Spindle Bore 2.31"
  • Tools 12
  • Rapid Traverse Rates 1200 IPM
  • X-Axis Travel 6.25"
  • Z-Axis Travel 14"
  • Turret Index (Single Step) 1 Second
  • Machine Dimensions (L x W x H) 92" x 55" x 69"
  • Machine Weight 5500 lbs.
  • Distance Between Centers 16.5"
  • Spindle Torque 75 ft. lbs.

Product Features

  • HAAS CNC CONTROL
  • 5c Collet Chuck System
  • 12" Color TFT
  • 3.5" Floppy Disc Drive
  • 1 MB Memory
  • Bolt-On Style Turret
  • Green Indicator Light
  • Chucker (No Tailstock)
  • Royal Filtermist Mist Collector
  • Chip Auger
  • 8,334 Servo Time
  • 13.435 Motion Time
  • 14,595 Spindle Time
