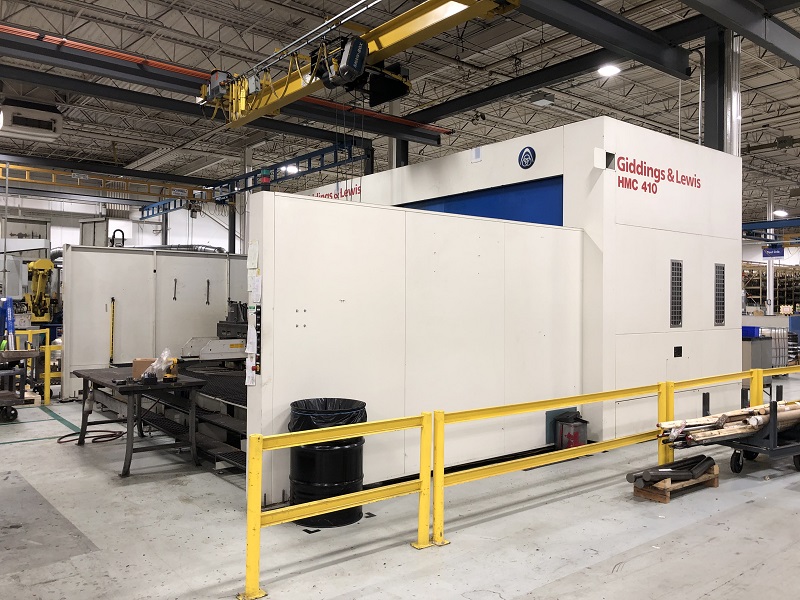

2005 GIDDINGS & LEWIS HMC 410

FANUC 160i-MB, 63" x 49" Pallets, 130.79.79", 31.5" Quill Travel, 62 HP, 4000 RPM, 100 Tools, Cat 50, TSC 1000 psi, Touch Probe, Dual Conveyors
Talk to a representative today!
(803) 548-8000

Product Details

  • Pallet Load Capacity with Pallet Changer 15,400 lbs.
  • Pallet Load Direct to Machine (Centrally Located) 26,900 lbs.
  • Pallet Size 63" x 49.2"
  • X-Axis Travel 129.9"
  • Y-Axis Travel 78.7"
  • Z-Axis Travel 78.7"
  • Pallet Index .001 Degrees
  • Spindle Speed 10 - 4000 RPM
  • Spindle Taper Cat 50
  • Spindle Motor (60/100% Duty) 61.6 / 49.6 HP
  • Spindle Nose to Pallet Center 17.7"
  • Tools 100
  • Rapid Traverse Rates (X Y Z) 1260 IPM
  • Tool Change Time (T - T) 5 Seconds
  • Max Tool Diameter 4.9" / 12.8"
  • Max Tool Length 25.6"
  • Max Tool Weight 88 lbs.
  • Machine Dimensions (L x D x H) 49.9 ft x 36.5 ft x 15.6 ft
  • Machine Weight 104,800 lbs.
  • Spindle Torque 1223.6 ft. lbs.
  • W-Axis Travel (Quill) 31.5"
  • Workpiece Diameter/Height 118.1" / 78.7"

Product Features

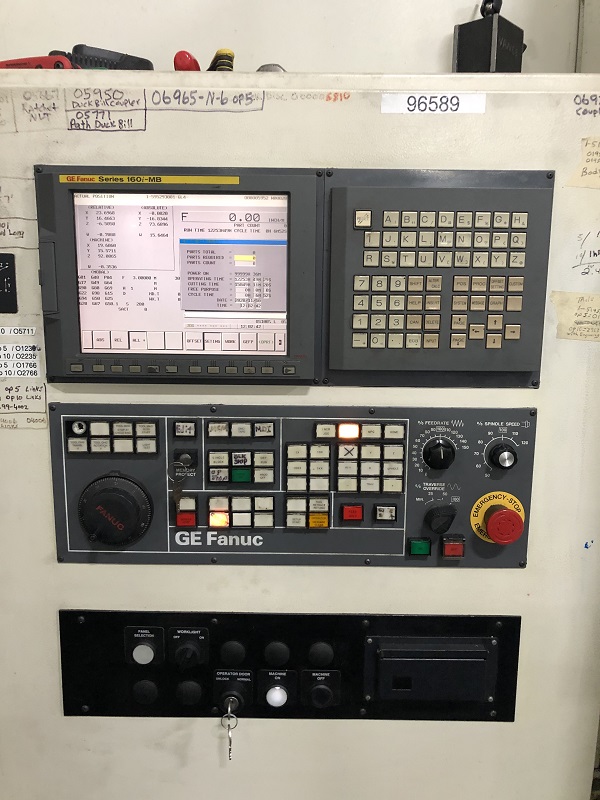

  • FANUC 160i-MB CNC Control
  • 10.4" Color LCD
  • PC/MCIA Interface
  • 3.5" Floppy Disc Drive
  • Fourth Axis Rotary Table

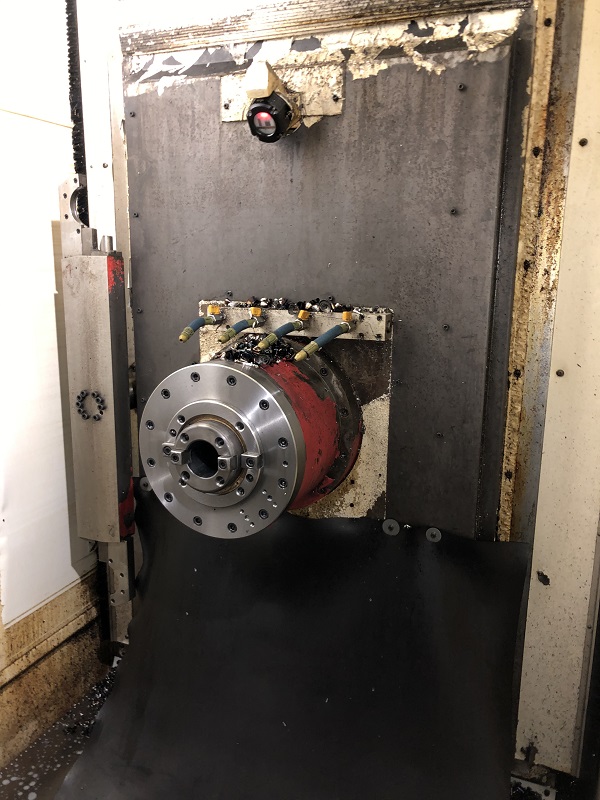

  • W-Axis Quill 31.5" Travel Live Spindle Headstock
  • Through Spindle Coolant (1015 psi) Burener Maschinefabrik
  • Renishaw Touch Probe

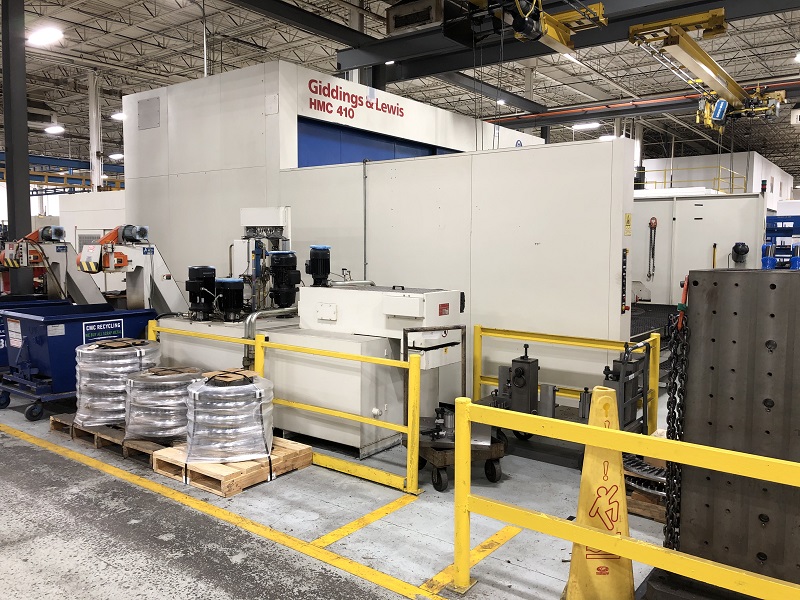

  • (2) Jorgensen Chip Conveyors (Left Side Exit)
  • 100 Tool Magazine (Two 50 Tool Cassettes)
  • Additional 50 Tool Cassette

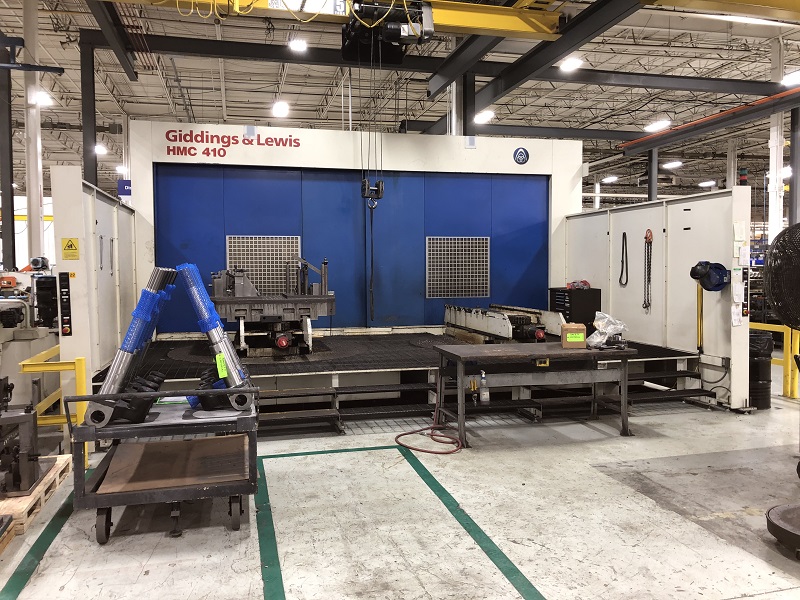

  • Automatic Two Pallet Changer
  • Platform for Pallet Load & Operator Stations
  • (1) Long Tool Station
  • Remote Jog Handle
  • (2) 63" x 49" Drilled & Tapped Pallets
  • Part Wash Cycle
  • Rigid Tapping
  • Helical Interpolation
  • Cylindrical Interpolation
  • Polar Interpolation
  • 2 MB Part Program Memory
  • 1000 Allowable Part Program Memory
  • 10.2 GB Hard Drive
  • High Level Programming Capability (Variables & Parameters)
  • Local Subroutines
  • 600 Variables for Macro Programming
  • Tool Path Retract & Recovery
  • Dynamic Fixture Offsets
  • Manufacturing Data Log
  • Second CNC Control Panel Mounted by Tool Matrix
  • 1350 Tool Data Files
  • 48 Fixture Offsets
  • 8 Digit Part Program Capability
  • Programmable Mirror Image & Plane Rotation (2D)
  • Background & Expanded Part Program Editing
  • 12,253 Operating Time
  • 15,849 Cutting Time
