Special Item

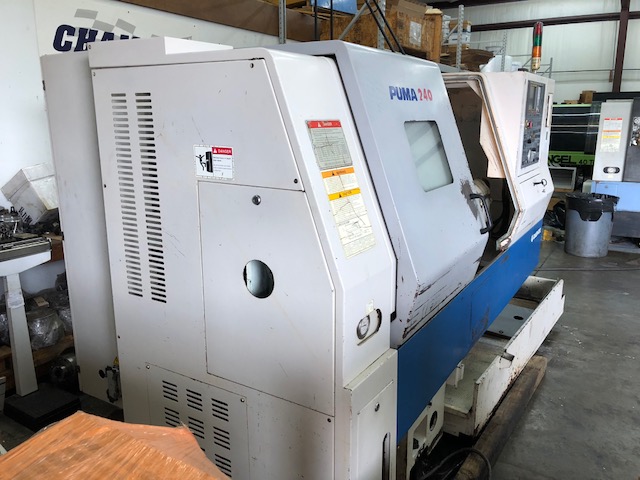

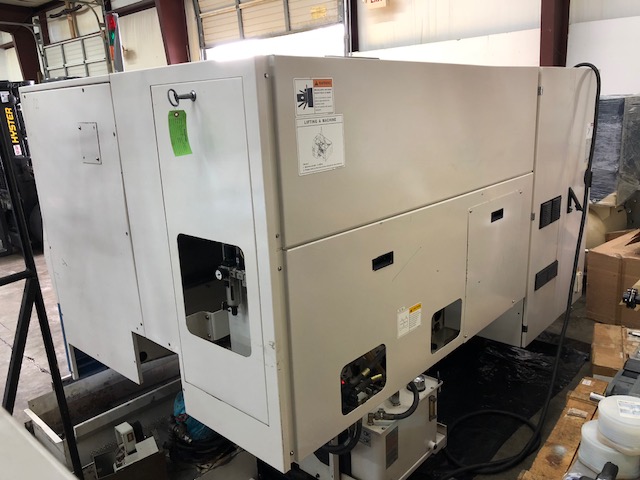

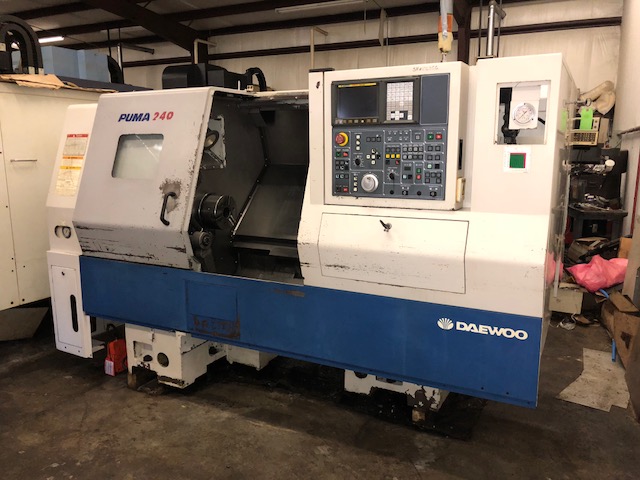

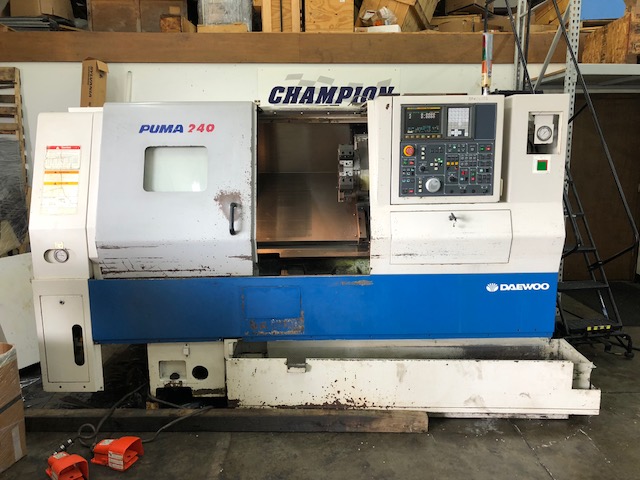

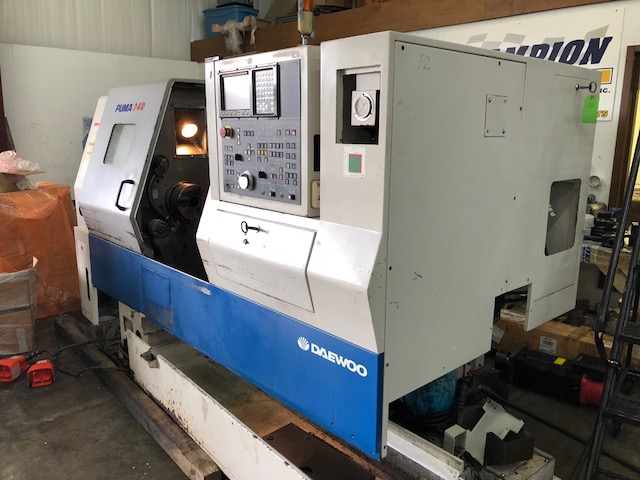

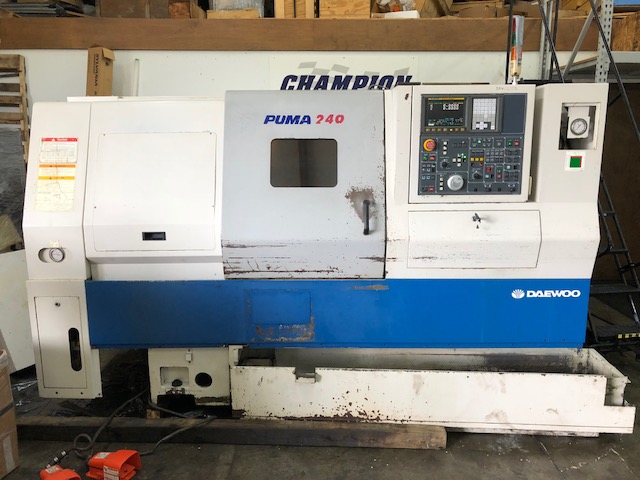

2005 DOOSAN PUMA 240B

Fanuc 0i, 2.5" Bar, 8" Chuck, 4500 RPM, 12 Tools, 20 HP, Parts Catcher, Tool Presetter, Tailstock
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 8"
  • Max Diameter Bar Capacity 2.5"
  • Max Swing Over Bed / Carriage 21.65" / 15.35"
  • Turning Diameter (Max / Std) 13.78" / 6"
  • Max Machining Length 22.13"
  • Spindle Motor 20 HP
  • Spindle Speed 4500 RPM
  • Spindle Nose A2-8
  • Spindle Bore 2.99"

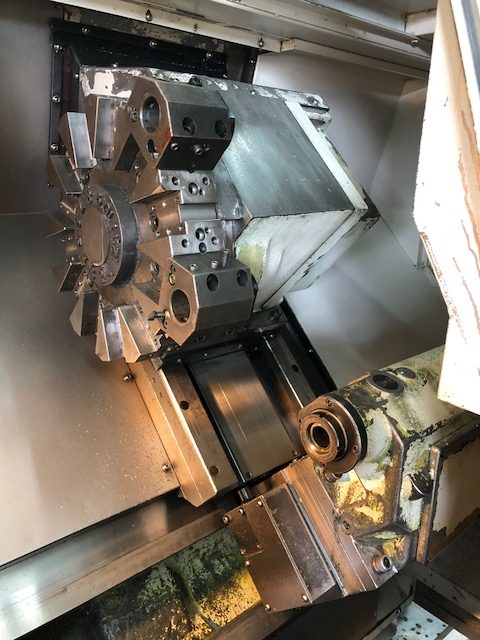

  • Tools 12
  • Rapid Traverse Rates (X / Z) 945 / 1181 IPM
  • X-Axis Travel 9.53"
  • Z-Axis Travel 22.83"
  • Turret Index (Single Step) 0.15 Seconds
  • Machine Dimensions (L x W x H) 118" x 62.77" x 68.5"
  • Machine Weight 8888 lbs.
  • Spindle Torque 188 ft. lbs.
  • Tailstock Taper MT#4

Product Features

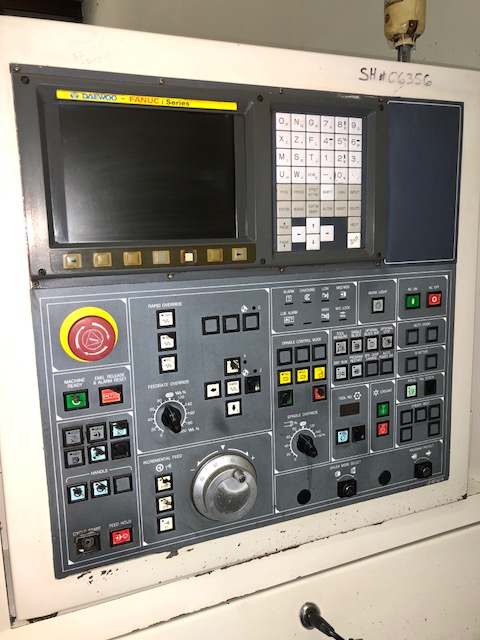

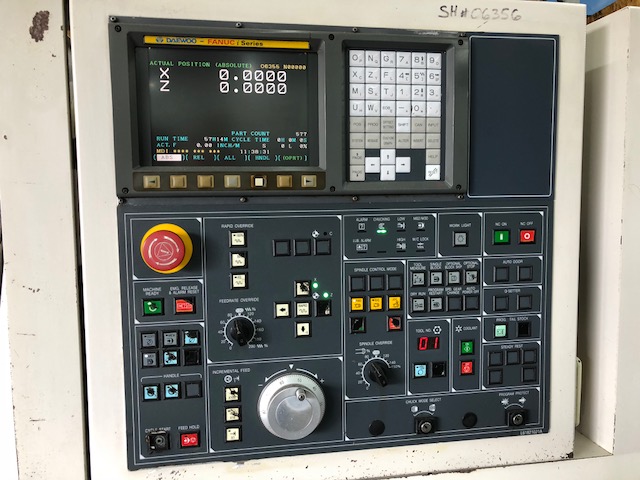

  • FANUC i SERIES CNC CONTROL
  • 10.4" Color LCD

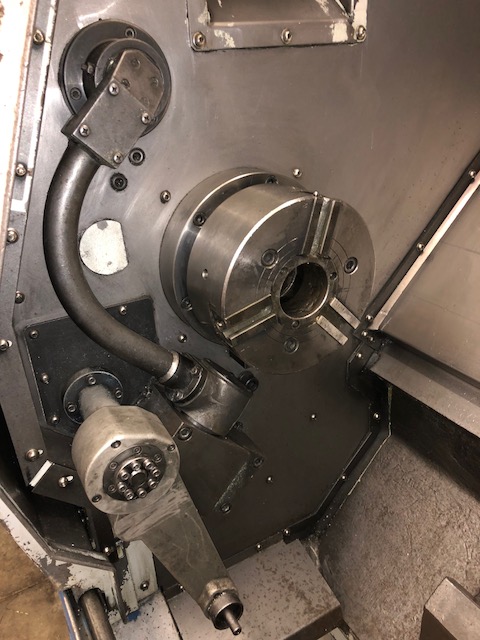

  • 8" Hydraulic Chuck
  • Tow-Along Tailstock
  • Automatic Tool Presetter
  • Auto Parts Catcher (Not Functional)
  • (2) Boring Bar Holders
  • (2) OD Wedge Blocks
  • Two Gear Range Headstock

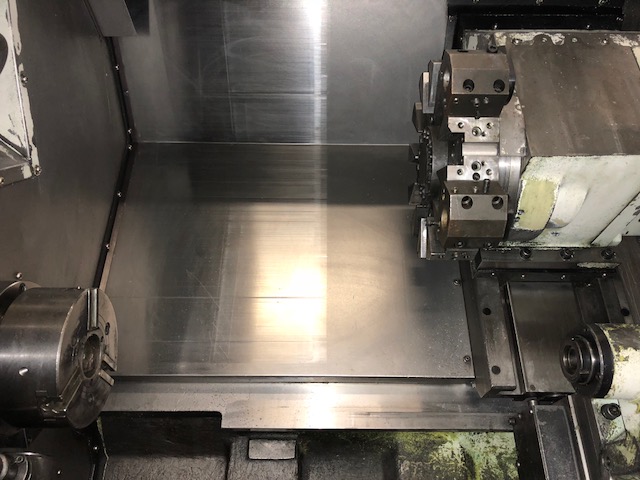

  • Slant Bed Box Way Construction
  • Mfg Date February 2005

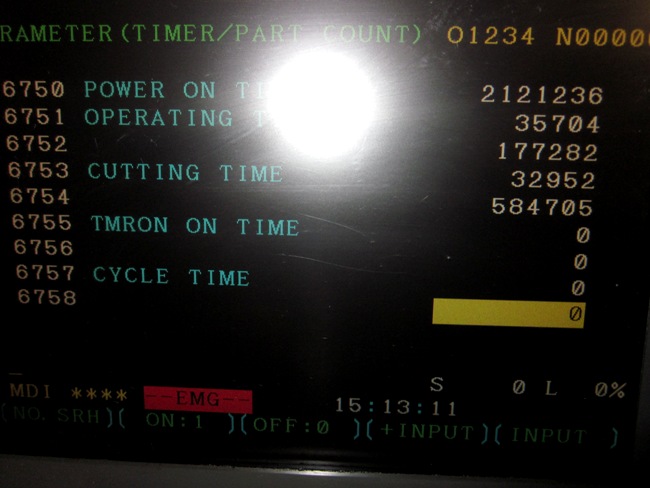

  • 9957 Cutting Time
