Special Item

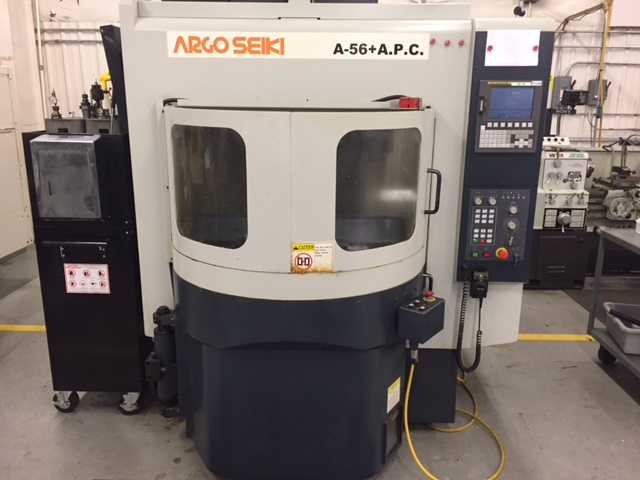

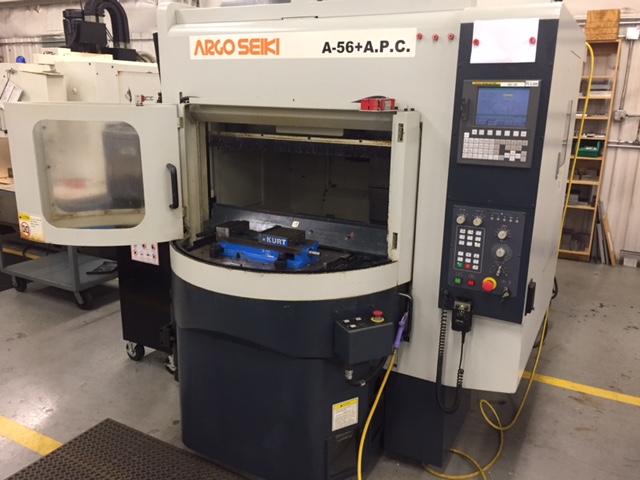

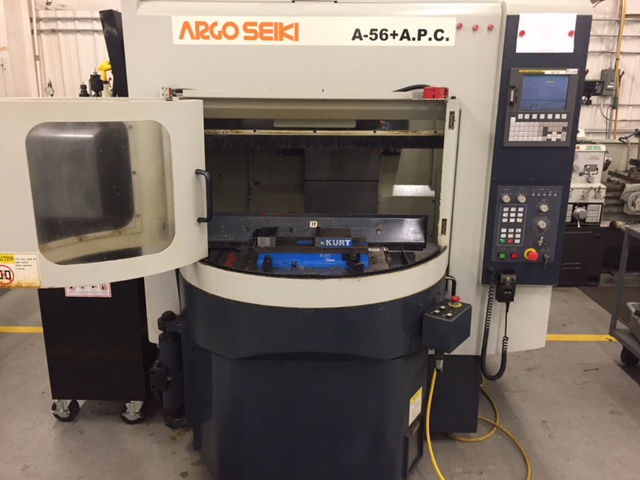

2005 ARGO SEIKI A-56 APC

22.16.16. FANUC 0iMC CNC Control, Auto Two Pallet Changer, 12,000 RPM, 24 Position Side Mount Tool Changer
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 22"
  • Y-Axis 16"
  • Z-Axis 16"
  • Table Size 23.62" x 15.75" (2)
  • Spindle Speed 12,000 RPM
  • Spindle Taper ISO 40
  • Spindle Motor 7.5 HP
  • Tools 24
  • Rapid Traverse Rates 1890 IPM
  • Max Tool Diameter 3.14" / 5.9"
  • Max Tool Length 7.87"
  • Max Tool Weight 6.6 lbs.
  • Machine Dimensions (L x W x H) 63" x 103" x 93"
  • Machine Weight 10,000 lbs.
  • Tool Change Time (T - T / C - C) 0.8 / 1.6 Seconds

Product Features

  • FANUC 0iMC CNC CONTROL
  • 10.4" Color LCD
  • USB Port & RS232C Interface
  • 24 Position Side Mount Tool Changer
  • Remote Manual Pulse Generator
  • Auto Two Pallet Changer (Spin-Type)
  • Spindle Chiller Unit
  • Mfg Date June 2005
