Special Item

2004 MORI SEIKI DURACENTER 5 5-AXIS

Fanuc 18iM, 31.20.20", 12000 RPM, 20 SMTC, 20 HP, Cat 40, TSC 1000 psi, Nikken 5-Axis Table
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 31.5"
  • Y-Axis 20.1"
  • Z-Axis 20.1"
  • Table Size 43.3" x 23.6"
  • Spindle Speed 12,000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 20 / 15 HP AC
  • Tools 20
  • Table Load Capacity 1760 lbs.
  • Rapid Traverse Rates 945 IPM
  • Max Tool Diameter 3.1" / 4.9"
  • Max Tool Length 11.8"
  • Max Tool Weight 17.6 lbs.
  • Machine Dimensions (L x W x H) 103.3" x 89" x 102.5"
  • Machine Weight 13,970 lbs.
  • Tool Change Time (T- T / C -C) 1.5 / 3.8 Seconds

Product Features

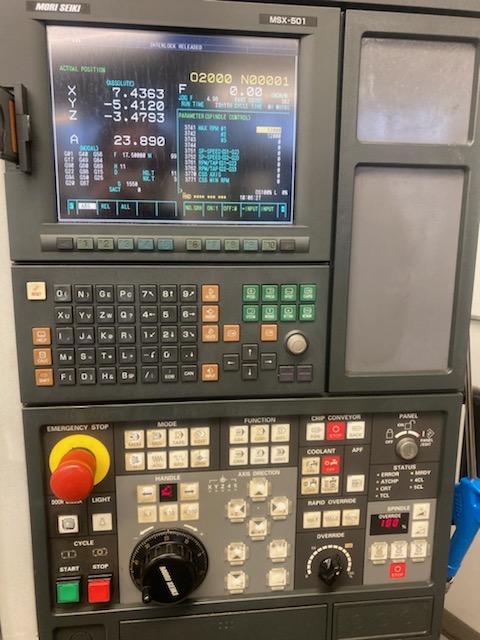

  • MORIC MSX-501 (Fanuc 18iM) CNC Control
  • 10.4" Color LCD
  • PC/MCIA Interface
  • MAPPS Conversational Programming
  • 20 Position Side Mount Tool Changer
  • Through Spindle Coolant (ChipBlaster 1000 psi)

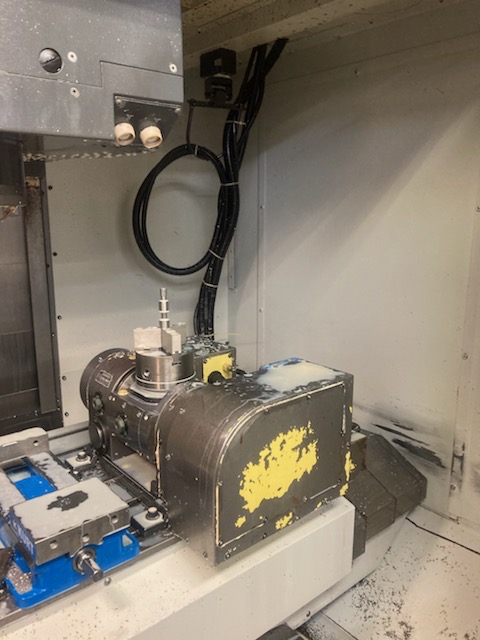

  • Nikken 8" Dia. 5-Axis Rotary/Tilt Table
  • Rigid Tapping
  • Manufacture Date June 2004
  • 35,048 Power On Time
  • 6040 Cutting Time
