Special Item

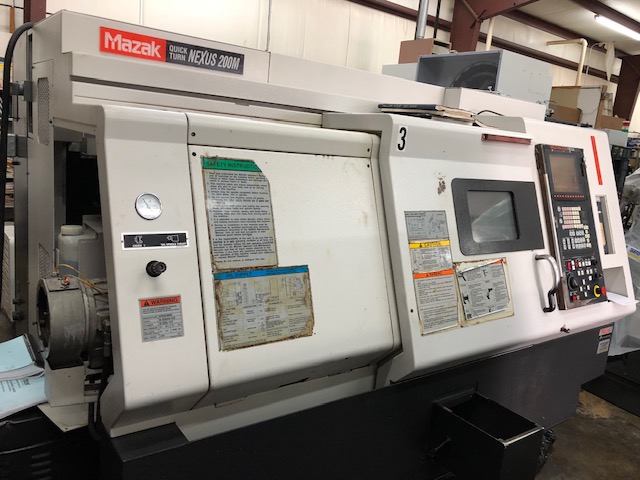

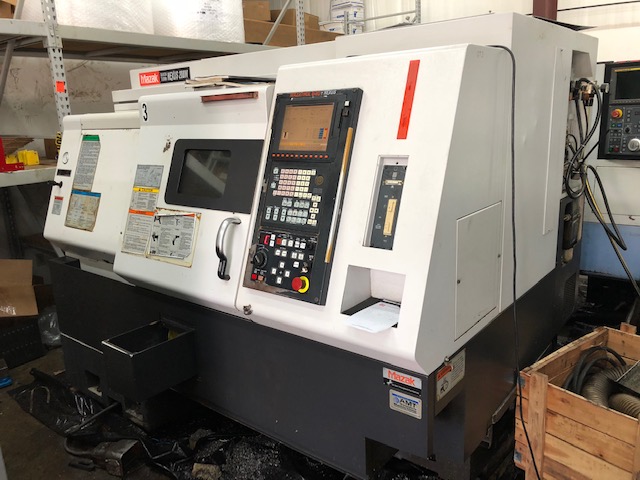

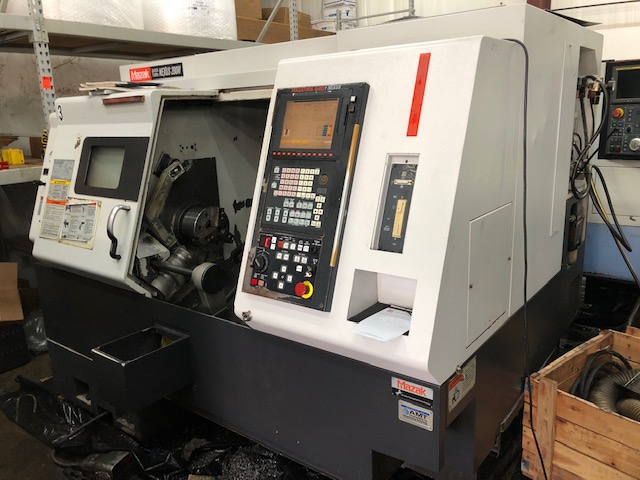

2004 MAZAK QUICK TURN NEXUS 200M

Mazatrol Fusion 640T Nexus, 2" Bar, 8" Chuck, 35 HP, 5000 RPM, Live Tooling, Tailstock, Tool Eye, Parts Catcher
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 8"
  • Max Diameter Bar Capacity 2.01"
  • Max Swing Over Bed / Carriage 26.5" / 14.0"
  • Max Machining Length 21.29"
  • Spindle Motor 35 / 30 HP
  • Spindle Speed 35 - 5000 RPM
  • Spindle Nose A2-6
  • Spindle Bore 3"
  • Tools 12
  • Milling Motor 7.5 HP
  • Milling Speed 25 - 4500 RPM
  • Rapid Traverse Rates (X / Z) 1181 / 1299 IPM
  • X-Axis Travel 9.05"
  • Z-Axis Travel 22.63"
  • C-Axis Index .001 Degrees
  • Turret Index (Single Step / Full) 0.2 / 0.6 Seconds
  • Machine Dimensions (L x W x H) 106.81" x 73.23" x 72.44"
  • Machine Weight 10,000 lbs.
  • Max Turning Diameter (Max / Std) 14.75" / 10.87"
  • Spindle Torque 258 ft. lbs.
  • Tailstock Taper MT#5
  • Tool Change Time (Single / Full Step) 0.2 / 0.6 Seconds

Product Features

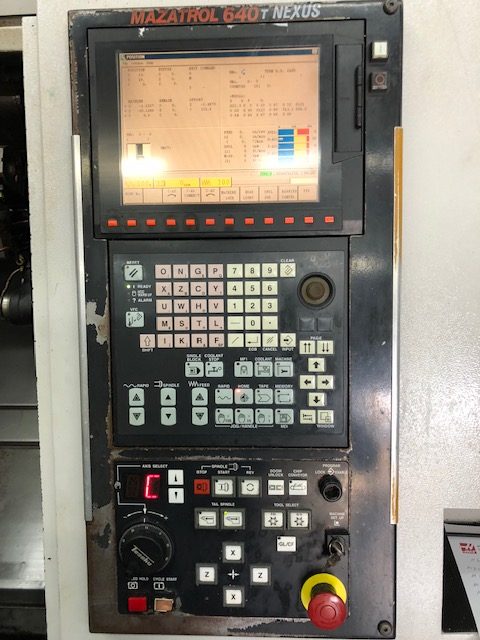

  • Mazatrol Fusion 640T Nexus CNC Control
  • 10.4" Color LCD
  • PC/MCIA Interface
  • C-Axis Milling Capability
  • 8" MMK ZA6-8-66 Hydraulic Chuck

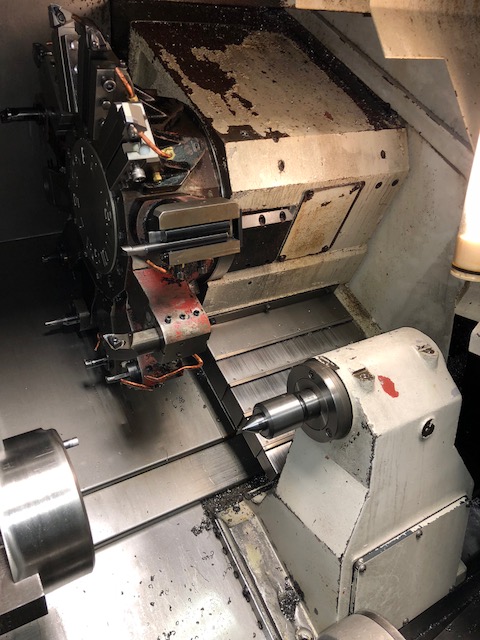

  • Servo Driven Tailstock
  • Programmable Tool Eye
  • Auto Parts Catcher
  • (1) OD Live Holder
  • (1) Face Live Holder
  • (7) Boring Bar Holders
  • (4) Turning Holders
  • Manufacture Date March 2004
