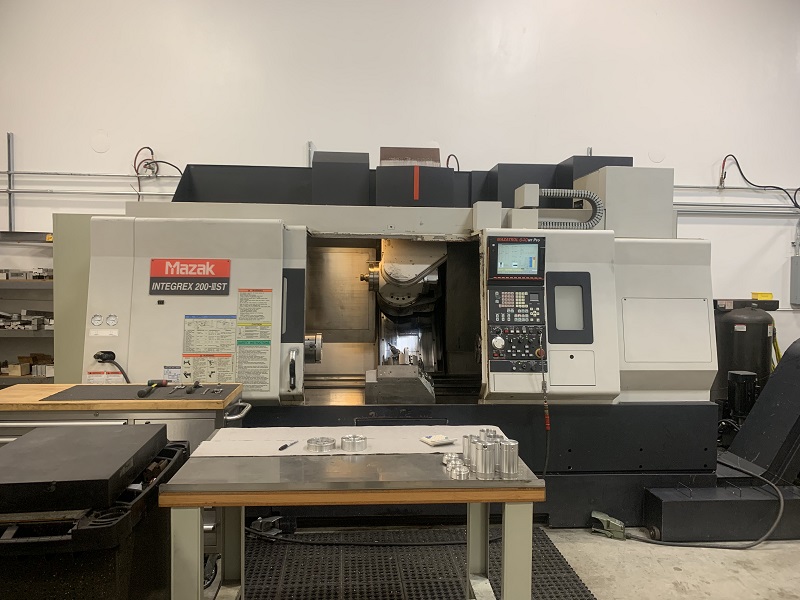

2004 MAZAK INTEGREX 200-IIIST

Mazatrol Fusion 640MT Pro, 2" Bar, 8" Chuck, 40" Length, 30 HP, 40 Tools, C,Y & B-Axis Live Tooling, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 8"
  • Max Diameter Bar Capacity 2"
  • Max Swing Over Bed 26"
  • Max Machining Length 40"

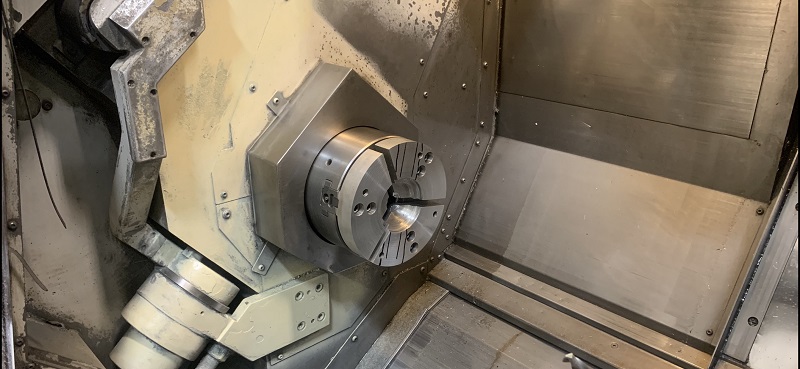

  • Spindle Speed 35 - 5000 RPM
  • Spindle Nose A2-6
  • Spindle Bore 2.99"
  • Tools 40
  • Milling Motor 25 HP
  • Milling Speed 12,000 RPM

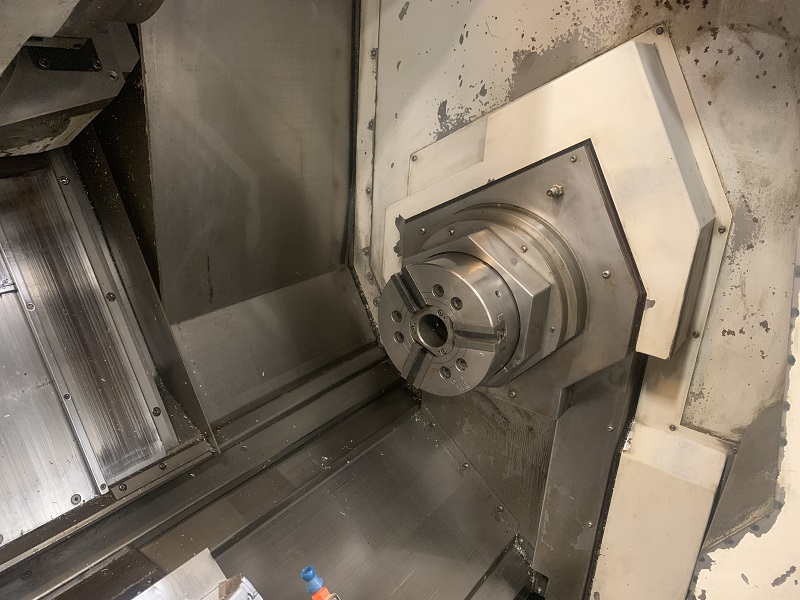

  • Sub Spindle Bore 2.99"
  • Sub Spindle Motor 25 HP
  • Sub Spindle Speed 35 - 5000 RPM
  • Sub Spindle Torque 241 ft. lbs.
  • Rapid Traverse Rates (X / Y / Z) 1496 / 1024 / 1496 IPM
  • X-Axis Travel 22.83"
  • Z-Axis Travel 41.14"
  • Y-Axis Travel +/- 3.15"
  • C-Axis Index (Main & Sub Spindle) .0001 Degrees
  • B-Axis Rotation 225 Degrees
  • Machine Dimensions (L x W x H) 151" x 87" x 103"
  • Machine Weight 19,000 lbs.
  • Distance Between Spindles 41.14"
  • Main Motor 30 / 20 HP
  • Max Tool Diameter 3.54" / 4.92"
  • Max Tool Length 15.7"
  • Max Tool Weight 22 lbs.
  • Max Turning Diameter (Chucking) 26"
  • Spindle Torque 258 ft. lbs.

Product Features

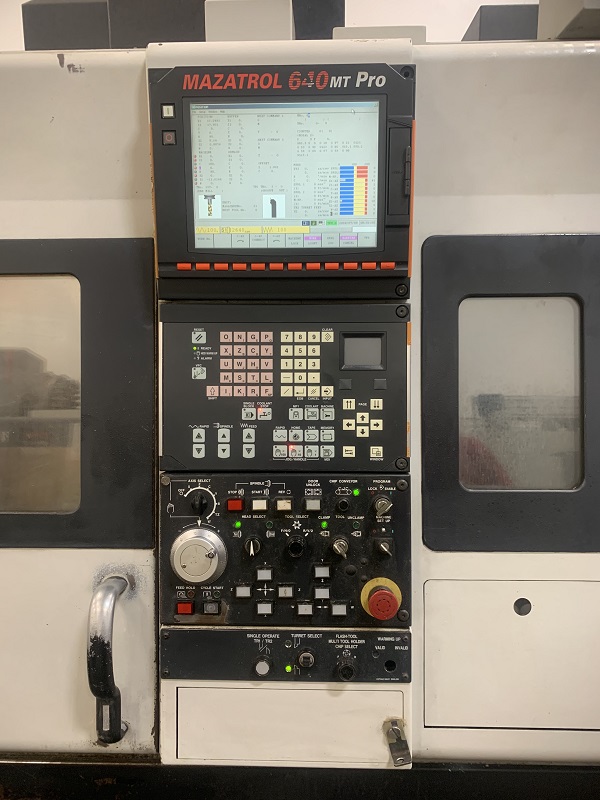

  • MAZATROL Fusion 640 MT PRO CNC Control
  • 10.4" Color LCD
  • PC/MCIA Interface
  • Conversational Programming
  • EIA/ISO Input Function
  • C, Y & B-Axis Milling Capability
  • Simultaneous 5 Axis Control

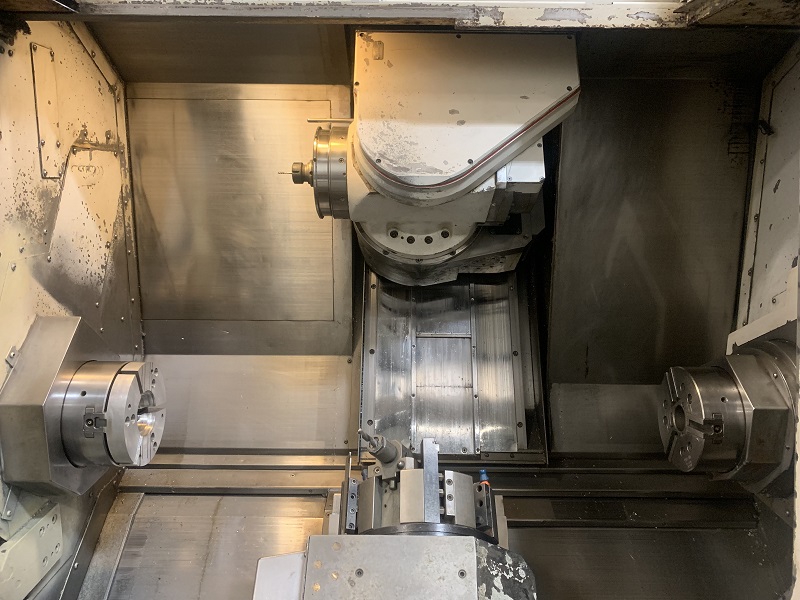

  • Main & Sub Spindle with Full C-Axis Milling Capability
  • 8" Hydraulic Chucks on Main & Sub Spindle
  • (9) Position Lower Turret
  • 40 Tool Magazine (KM63 Style)
  • Chip Conveyor (Side Exit)
  • Programmable Tool Eye
  • EIA Helical Interpolation
  • EIA Coordinate Rotation
  • EIA Helical Tapping
  • Hobbing
  • Mill Tool Synchronous Tapping
  • Enhanced Y Axis Mazatrol (Face 1 & 2)
  • Rotary Axis Submicron
  • Complete Coolant System
  • Chuck Air Blast
  • Background Path Check
  • B-Axis Angle Position Turning
  • Shape Compensation
  • Second Auxiliary Functions
  • Direct Drawing Size Input
  • User Macro
  • 600 Macro Variables
  • User Macro Interrupt
  • Work Coordinates Select
  • Polar Coordinates Input
  • Cylindrical Interpolation
  • Tool Center Point Control
  • Auto Pecking
  • Rotary Axis Shape Compensation
  • Second Turret Mazatrol
  • 5996 Power On Time
  • 6009 Auto Operation Time
  • 9953 Auto Cut Time
  • 5166 Total Cut Time
  • 5996 Total Time
