Special Item

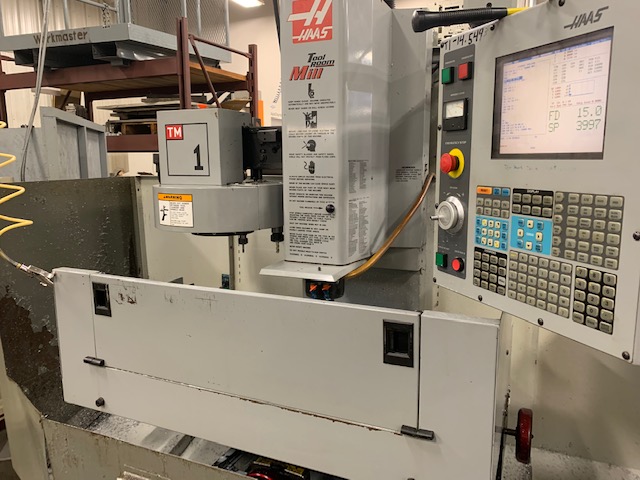

2004 HAAS TM-1

30.12.16", 4000 RPM, Cat 40, 7.5HP, 10 tool ATC, Coolant System, Manual/Electronic Handwheels
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 30"
  • Y-Axis 12"
  • Z-Axis 16"
  • Table Size 47.75" x 10.5"
  • Spindle Speed 4000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 7.5 HP
  • Table Load Capacity 1000 lbs.
  • Rapid Traverse Rates 200 IPM
  • Max Tool Diameter 3.5"
  • Max Tool Length 12"
  • Max Tool Weight 12 lbs.
  • Machine Dimensions (L x W x H) 85" x 64" x 109"
  • Machine Weight 3300 lbs.
  • Spindle Nose to Table Top 4" - 20"
  • Spindle Torque 33 ft. lbs.
  • Tool Change Time (T - T / C - C) 5.7 / 6.5 Seconds

Product Features

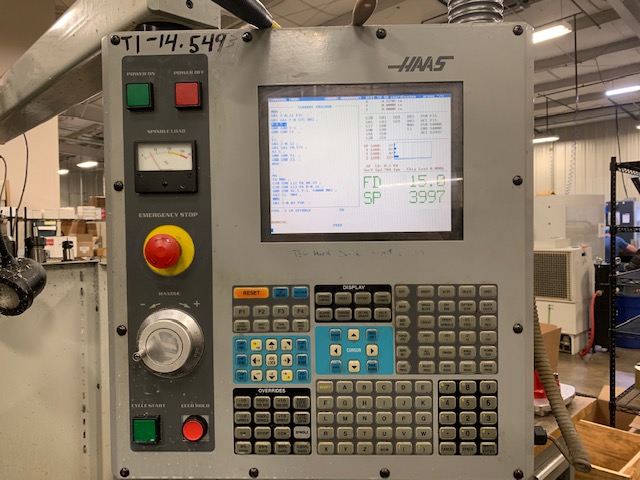

  • HAAS CNC CONTROL
  • 12" Color LCD
  • 10 Position Automatic Tool Changer
  • Coolant System
  • Table Chip Guards
  • Rigid Tapping
  • Green Work Indicator Light
  • Manual / Electronic Handwheels
  • Single or Three Phase Power
  • Manufacture Date November 2004
  • 18,019 Servo Time
  • 6650 Motion Time
  • 6172 Spindle Time
